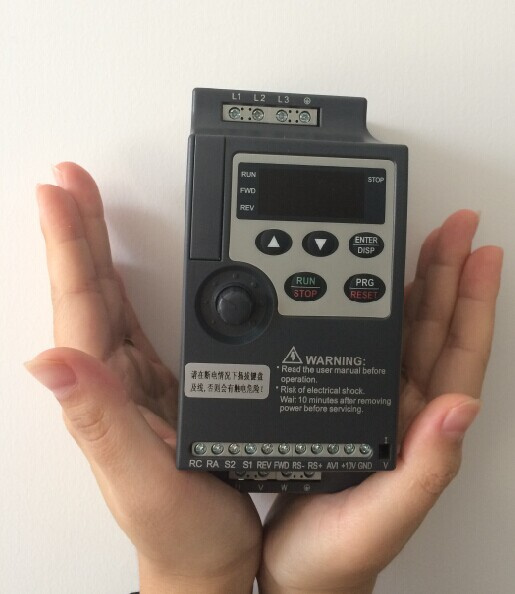

S800E Series-----Micro Universal -Purpose Drives
Advantageness----- Mini power inverter
1. Easy operation and install
2. Cheap
3. Similar as Delta VFD-L series
4. DIN installation
5.Soon we will phase in 380V range for this type
Characters:
1.High cost performance , effective control
2.Compact Structure , sace installation space
3. Support DIN- Rail Mountin g, sancing intrallation time
4. Support irfpa keyboard , can choose series S800GE series all kinds of keyboard
5.Rich of protection function , with the output short cuicuit protection function
Product Specifications
Items | S800E |
Power Supply | Rated voltage, Frequency | One-phase/Three-phase AC 220V 50/60Hz |
Voltage Range | 220V: 170~240V |
Output | Voltage Range | 220V: 0~220V |
Frequency Range | 0.10~400.00Hz |
Control method | V/F control, Space vector control. |
Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
Control SpeciAlations | Output Frequency Range | 0.10Hz~400.00Hz |
Frequency Setting Resolution | Digital input: 0.01Hz, analog input: 0.1% of maximum output frequency |
Output Frequency Accuracy | 0.01Hz |
V/F Control | Setting V/F curve to satisfy various load Requirements. |
Torque Control | Auto increase: auto raise torque by loading Condition; Manual increase: enable to set 0.0~20.0% of raising torque. |
Multifunctional Input Terminal | Four multi-function input terminals, realizing functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output Terminal | 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other Information and warnings. |
Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions | PID Control | Built-in PID control |
RS485 | Standard RS485 communication function(MODBUS) |
Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be selected; Digital input:Input using the setting dial of the operation panel or RS485 or UP/DOWN. Note:AVI terminals can be used to select an analog voltage input(AV) and analog current input(AI) through the switch J2. Note: AVI terminals can be used to select an Analog voltage input (AV) and analog current Input(AI) through the switch J2. |
Multi-speed | Four multifunction input terminals, 15 section speed can be set |
Automatic voltage |
Product series models
Model | Input | Power Output (KW) | Capacity (KVA) | Current Output (A) | Load Capacity (60s)(A) | Motor Equipped (KW) |
S800-2T0.4GE | 1PH/3PH 220V- 50/60HZ | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
S800-2T0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
S800-2T1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |
Peripheral Devices Specifications
Check the motor capacity of the inverter you purchased. Appropriate peripheral devices must be selected according to the capacity.Refer to the following list and prepare appropriate peripheral devices:
Applicable Inverter Type | Input voltage | Motor Output (KW) | Main Circuit Cable Type (mm2) | Breaker Selection (A) | Input Side Magnetic Contractor (A) |
S800-2T0.4GE | 220V | 0.4 | 0.75 | 10 | 9 |
S800-2T0.75GE | 220V | 0.75 | 0.75 | 16 | 12 |
S800-2T1.5GE | 220V | 1.5 | 1.5 | 25 | 18 |
