Msi DC to AC Solar Inverter Power 0.75-250kw Variable Frequency Inverter for PV Pump
| Price: |
US $ 67-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MSI |
| Control Method: |
V/F Control, Space Vector Control |
| Output Frequency Range: |
0-50Hz |
| Communication Methods: |
RS -485 |

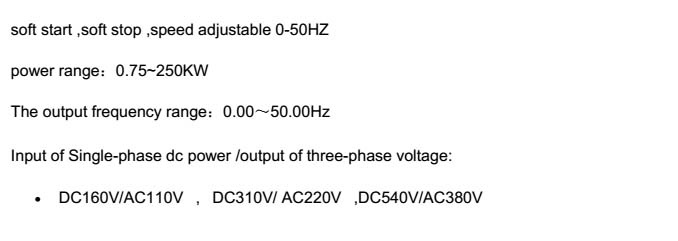

| Power Range: |
0.75-250kw |
| Input Of Single Phase DC Power: |
160V 310V 540VDC |
| Output Of Three Phase Voltage: |
110V 220V 380VAC |
| Protection: |
IP20 |
| Altitude: |
Lower Than 1000 M |
| LED Screen: |
Display Parameters |
| Storage Temperature: |
-20°c-60°c |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Link Of Transformation: |
DC-AC |
| Brand: |
Machtric |
Product Description

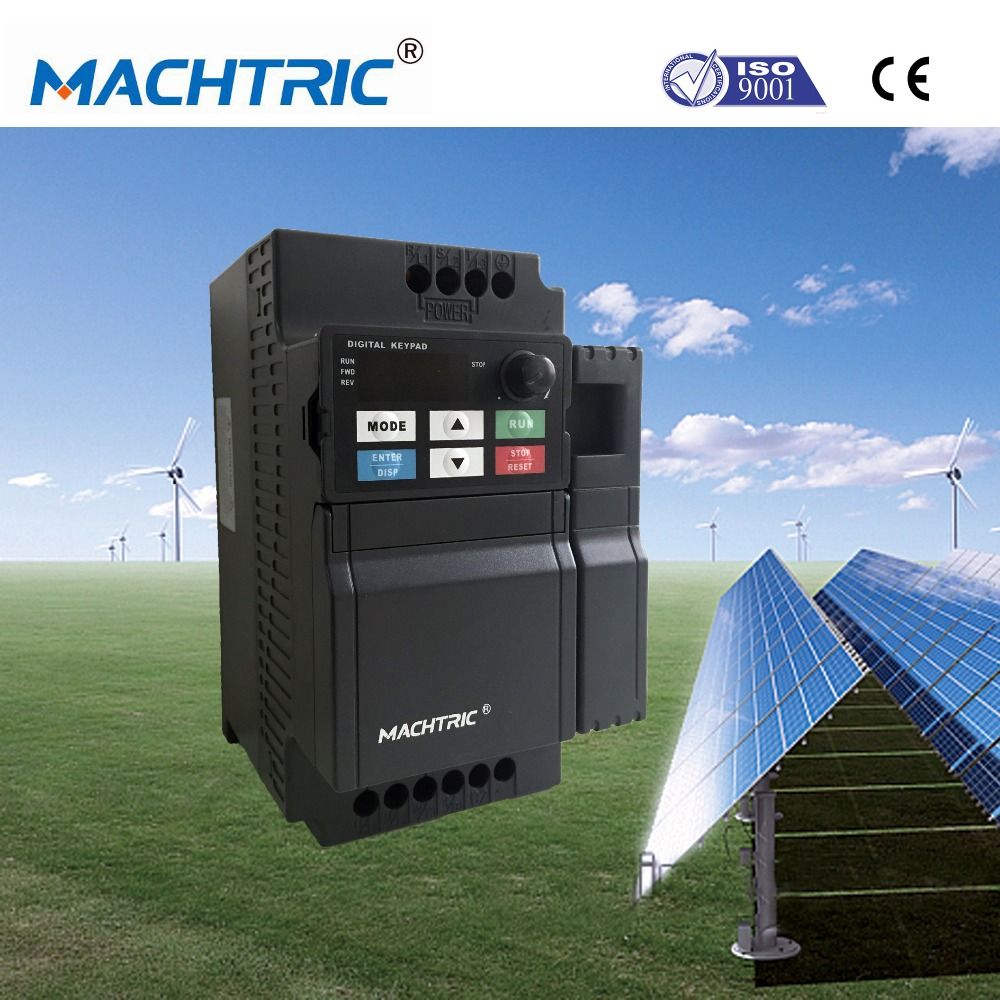

MSI DC to AC solar inverter power 0.75-250KW variable frequency inverter for PV pump
Technical features of MSI solar inverter| Item | MSI solar inverter |
| Main control method | control method | V/F control, Space vector control. |
| Output Frequency Range | 0~400.0Hz |
| Carrier frequency Setting | 0~15kHz |
| Frequency Setting Resolution | Digital input: 0.1Hz |
| Analog input: 0.1% of max. frequency |
| Accuracy of output frequency | 0.1Hz |
| Overload | Type G: 150% rated current in 60s; 180% rated current in 3s. |
| Type P: 120% rated current in 60s; 150% rated current in 3s. |
| Torque control accuracy | Auto boost; customized boot 0.0~20.0% |
| V/F control | Can be arbitrarily set line V/F |
| PLC, Multi-speed operation | Internal PLC or input terminals able can be set 16 section |
| Internal PID | it realizes process-controlled closed loop control system easily. |
| Voltage | 0~220VAC; 0~380VAC |
| Acceleration and deceleration time settings | 0~999.9s Respectively provided acceleration and deceleration time |
| Communication methods | RS -485 |
| Operation | Running command channel | Operation panel, control terminal, Seriel communication port |
| Frequency source | Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. |
| Input terminal | six digital input terminal; two analog input terminal: one just support input voltage 0~10V (FIV), other support input current 4~20mA (FIC) |
| Output terminal | one digital output terminal ( M01); one relay output terminal ( RA, RB, RC) |
| one analog output terminal, support output voltage 0~10V (FOV) |
| Control panel | LED screen | display parameters |
| Protection function | Motor short-circuit detection at power-on, input/output phase loss protection, over current protection, overvoltage protection, under voltage protection, overheat protection and overload protection |
| Environment | Installation location | Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapour, drip or salt. |
| Altitude | Lower than 1000 m |
| Ambient temperature | -10°C ~40°C (de-rated if the ambient temperature is between 40°C and 50°C) |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Storage temperature | -20°C~60°C |
| Class protection | IP20 |

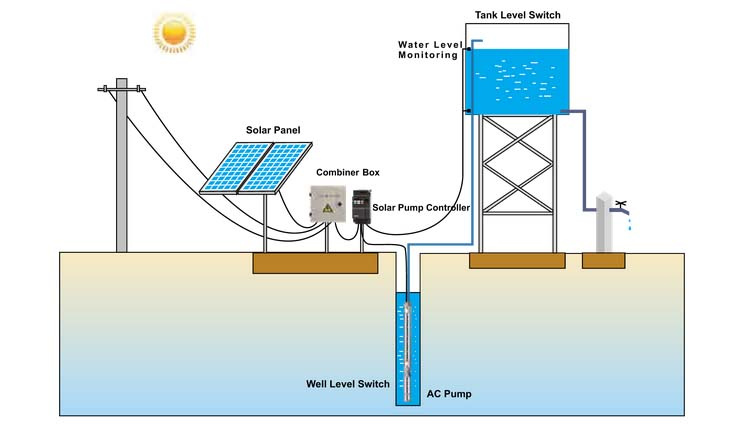

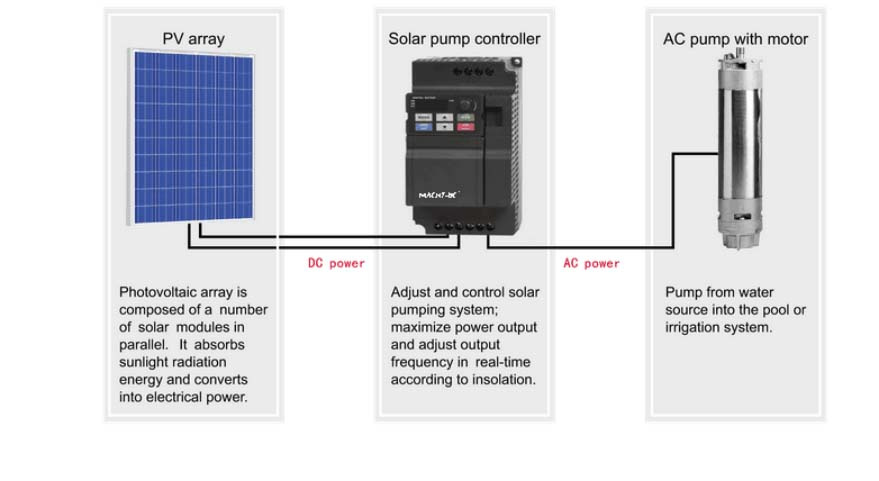

This system does not have storage batteries, and it is completely powered by solar energy, thus realizing a cost-effective purpose.
An appropriate water tank can be prepared to store water for later use.
High-efficient AC submersible/surface pump is adopted for the system, thus satisfying different requirements.

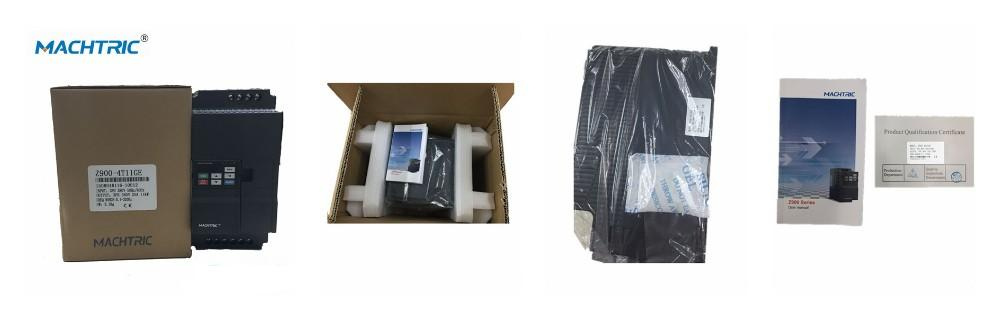

Packaging
