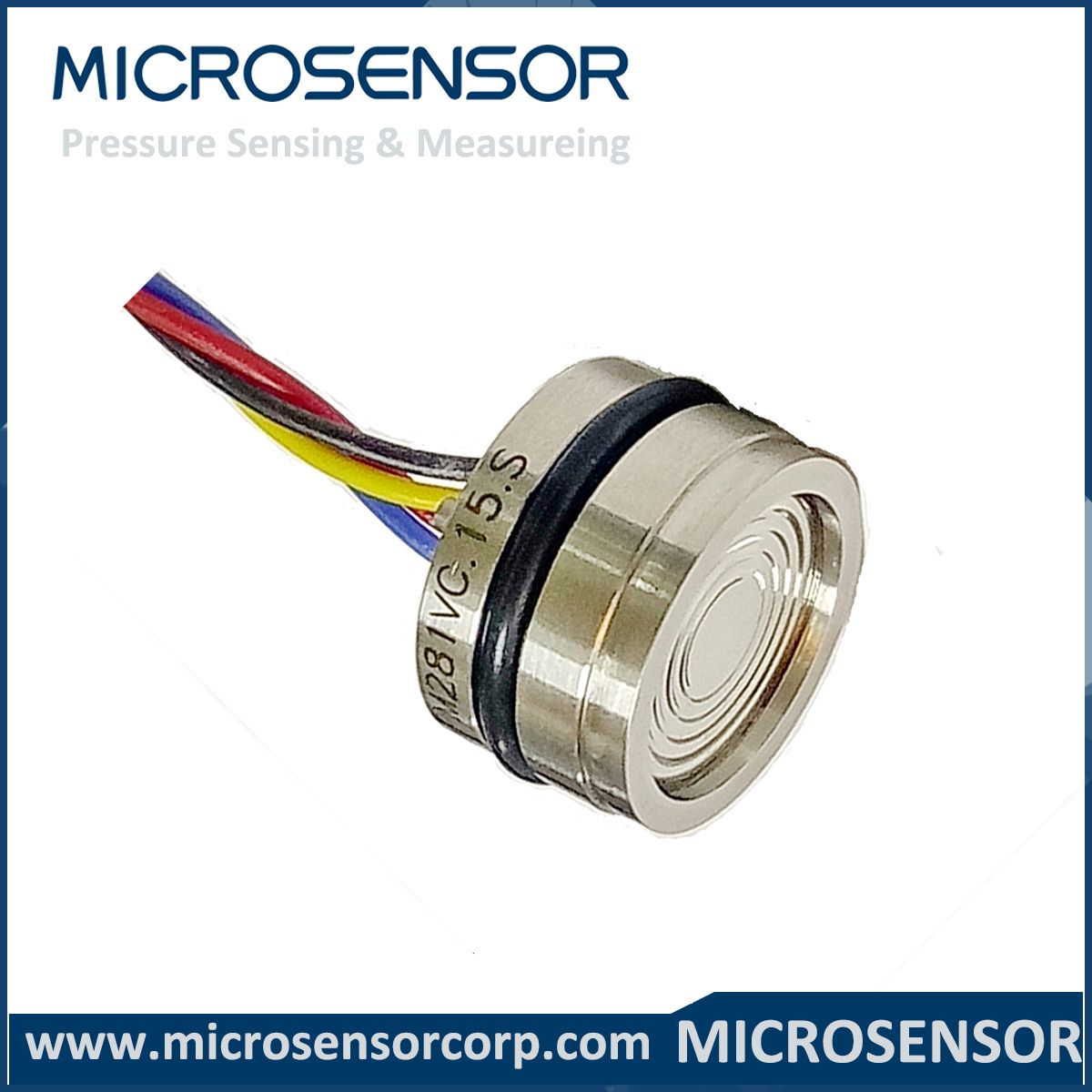

mv Output Signal Pressure Sensor (MPM281VC)
Features1. Constant Voltage Power Supply, Standard Output2.International Famous chips; Laser trimming
3. Pressure range 0kPa~35kPa…70MPa
4. Gauge, absolute
5. Isolated construction, enable to measure various media
6. Φ19mm standard OEM pressure sensor
7. Full stainless steel 316L
Application•Industrial process control
•Level measurement
•Gas, liquid pressure measurement
•Pressure checking meter
•Pressure calibrator
•Liquid pressure system and switch
•Cooling equipment and air conditioning system
•Aviation and navigation inspection
Introduction:MPM281VC OEM sensor is the piezoresistive pressure sensor with constant voltage power supply and standard output. The outline, installation dimension and sealing method of the general MPM281VC is strongly interchangeable, it is widely used for measuring pressure which is compatible with stainless steel and Viton, it also can meet the requirement of installation with limited space.
Electric Specification:- Power supply: ≤10V DC
- Electric connection: Kovar pin
- Common mode voltage output: 50% input (typ.)
- Input impedance: 4kΩ~25kΩ
- Output impedance: 3.5kΩ~6kΩ
- Response:(10%~90%): <1ms
- Insulation resistor: 100MΩ,100VDC
- Overpressure: 1.5 times FS
Construction - Diaphragm: stainless steel 316L
- Housing: stainless steel 316L
- Pin: Kovar
- O-ring: Viton
- Net weight: ~11g
Environment Condition - Position effect: deviate 90° from any orientation, zero change ≤±0.05%FS
- Shock: no change at 10gRMS,(20~2000)Hz
- Hz Impact: 100g,11ms
- Media compatibility: the gas or liquid which is compatible with stainless steel and viton
Basic Condition - Media temperature: (35±1)ºC
- Environment temperature: (35±1)ºC
- Shock: 0.1g(1m/s2)Max.
- Max Humidity: (50%±10%)RH
- Local air pressure: (86~106)kPa
- Power supply: (10±0.1)VDC
Basic Specification:| Specification* | Min. | Typ. | Max. | Units |
| Linearity | | ±0.2 | ±0.25 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero Output** | | | ±3 | mV DC |
| FS Output | 98 | 100 | 102 | mV DC |
| Zero thermal error | | ±0.75 | ±1.0 | %FS,@35ºC |
| FS thermal error | | ±0.75 | ±1.0 | %FS,@35ºC |
| Compensated temp. range | 0~70 | ºC |
| Working temp. range | -40~125 | ºC |
| Storage temp. range | -40~125 | ºC |
| Stability error | ±0.2 | %FS/year |
*Test at the basic condition, G: Gauge
**Closed-loop products |

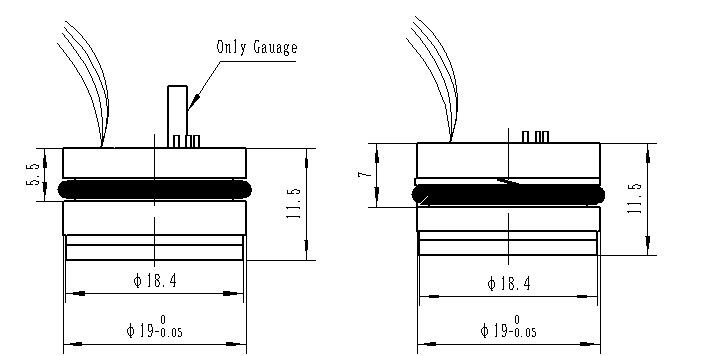

Outline Dimmension:
(Unit: mm)

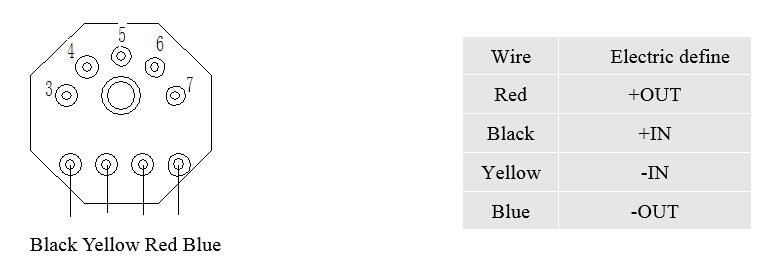

Electric Connection:
Order Guide:| MPM281VC | Piezoresistive OEM Pressure Sensor |
| | | Range Code | Pressure Range | Ref. | Range Code | Pressure Range | Ref. |
| 0A | 0kPa~35kPa | G | 13 | 0MPa~3.5MPa | G.A.S |
| 03 | 0kPa~100kPa | G.A | 14 | 0MPa~7MPa | S |
| 07 | 0kPa~200kPa | G.A | 15 | 0MPa~10MPa | S |
| 08 | 0kPa~350kPa | G.A | 17 | 0MPa~20MPa | S |
| 09 | 0kPa~700kPa | G.A | 18 | 0MPa~35MPa | S |
| 10 | 0kPa~1000kPa | G.A | 19 | 0MPa~70MPa | S |
| | 12 | 0MPa~2MPa | G.A | | | |
| | | Code | Pressure Type |
| G | Gauge |
| | A | Absolute |
| | S | Sealed Gauge |
| | | Code | Pressure Connection |
| 0 or Null | O-ring |
| | | Code | Temperature compensation |
| L | Laser trimming |
| | | Code | Electric connection |
| 2 | 100mm silicon rubber flexible wires |
| | |
| MPM281VC 03 G 0 L 2 The whole spec. |
