Mysun Awm Style Materials Insulator FEP electrical Wire

Name: Mysun Awm Style Materials Insulator FEP electrical Wire
Brand: all-electronics-online.com
SKU: 832389205
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 0.1-2/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

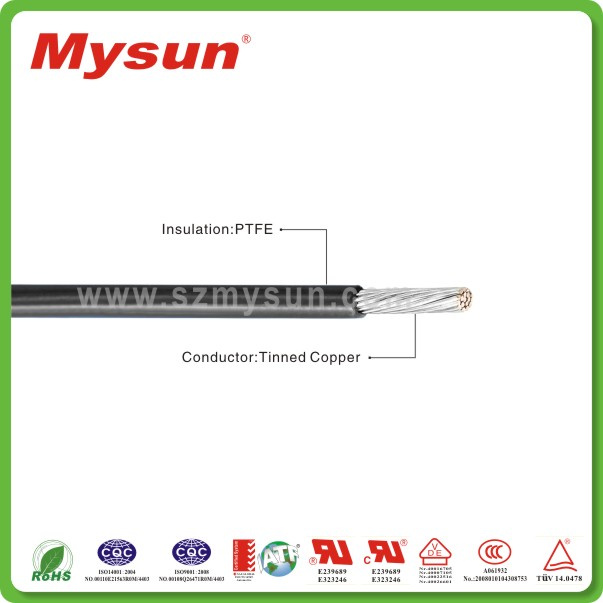

MYSUN AWM style materials insulator FEP Electical wire

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
30	1/0.26	0.26	0.305	0.87	361	610/2000
30	7/0.10	0.30	0.305	0.91	361	610/2000
28	1/0.32	0.32	0.305	0.93	227	610/2000
28	7/0.12	0.36	0.305	0.97	227	610/2000
26	7/0.16	0.48	0.305	1.09	143	610/2000
26	19/0.10	0.48	0.305	1.11	143	610/2000
24	1/0.50	0.50	0.305	1.11	89.3	610/2000
	7/0.20	0.60	0.305	1.21
	19/0.12	0.60	0.305	1.21
22	1/0.65	0.65	0.33	1.31	56.4	305/1000
	7/0.254	0.76	0.33	1.42
	19/0.15	0.75	0.33	1.41
20	1/0.81	0.81	0.33	1.47	35.2	305/1000
	7/0.31	0.96	0.33	1.59
	19/0.19	0.93	0.33	1.59
18	1/1.12	1.02	0.33	1.68	22.2	305/1000
	7/0.39	1.17	0.33	1.83
	19/0.235	1.17	0.33	1.83
16	1/1.30	1.30	0.33	1.96	14	305/1000
	7/0.49	1.47	0.33	2.13
	19/0.30	1.50	0.33	2.16
14	1/0.81	1.85	0.33	2.51	8.78	305/1000
12	7/0.31	2.35	0.33	3.01	5.53	305/1000
10	19/0.19	3.05	0.33	3.71	3.476	305/1000

Prod Model:	1333
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	CSA,Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	FEP
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
