Nickel plated brass IP65 25mm long distance series proximity sensor

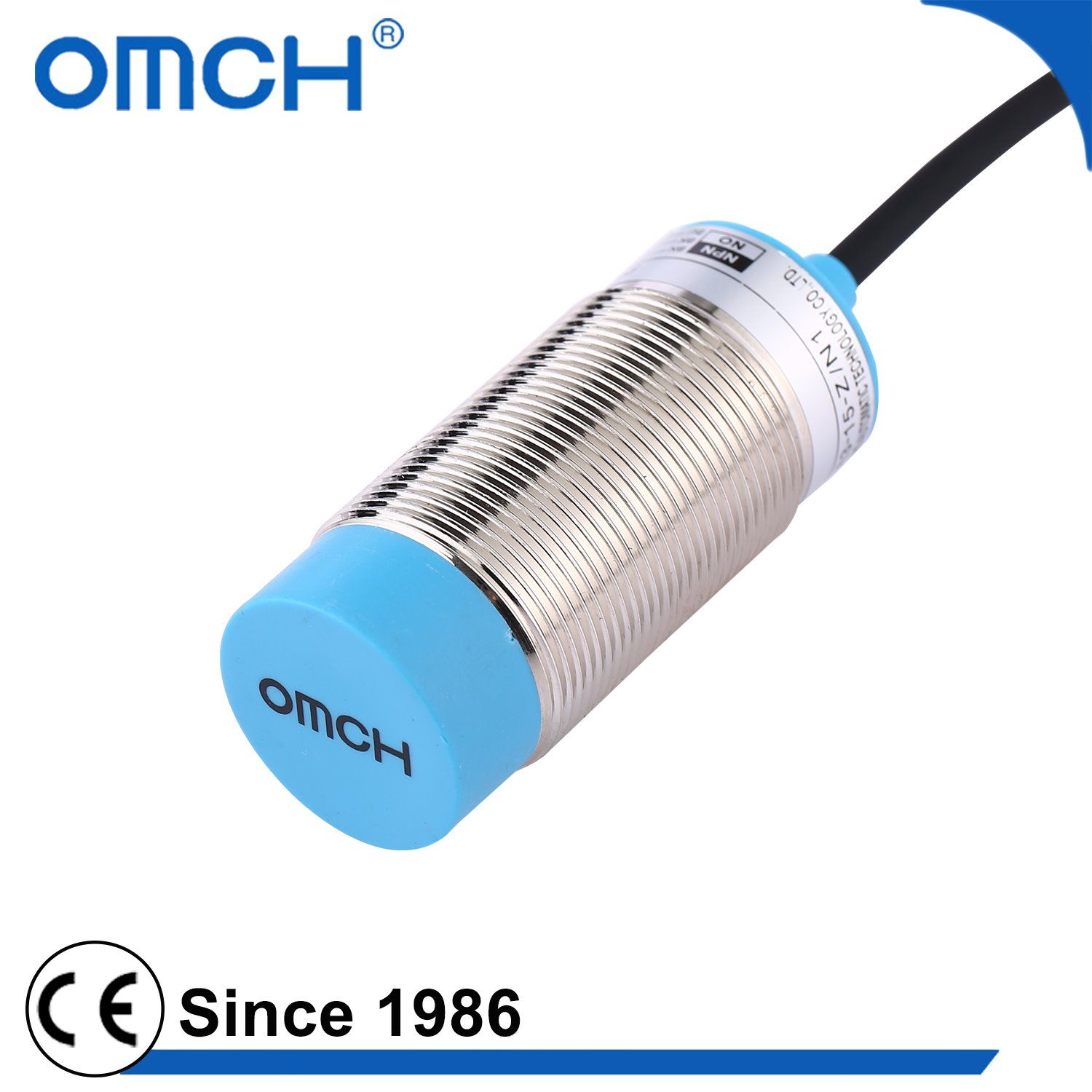

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				M30
Mounting way				Non-Screen shield type
TYPE	DC TYPE	NPN	NO	LLJ30A3-25-Z/N1
			NC	LLJ30A3-25-Z/N2
			NO+NC	LLJ30A3-25-Z/N3
		PNP	NO	LLJ30A3-25-Z/P1
			NC	LLJ30A3-25-Z/P2
			NO+NC	LLJ30A3-25-Z/P3
		Two Wire	NO	LLJ30A3-25-Z/D1
			NC	LLJ30A3-25-Z/D2
	AC TYPE	Two Wire	NO	LLJ30A3-25-J/A1
			NC	LLJ30A3-25-J/A2
		3 wire	NO+NC	LLJ30A3-25-J/A3
Set distance				25 mm+/-10%
Standard detection object				0~22mm
Response frequency				Iron75751
Response frequency				DC:>=0.5kHz AC:50Hz

Delay distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	-15~+60C
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: nickle plated brass; Detection surface: ABS

COMPANY INFORMATION

EXHIBITION

Prod Model:	M30
Standard:	Standard
Certification:	CE
Type:	Proximity Sensor
Principle:	Inductive
Wires:	2-Wires, 3-Wires,4-Wires
