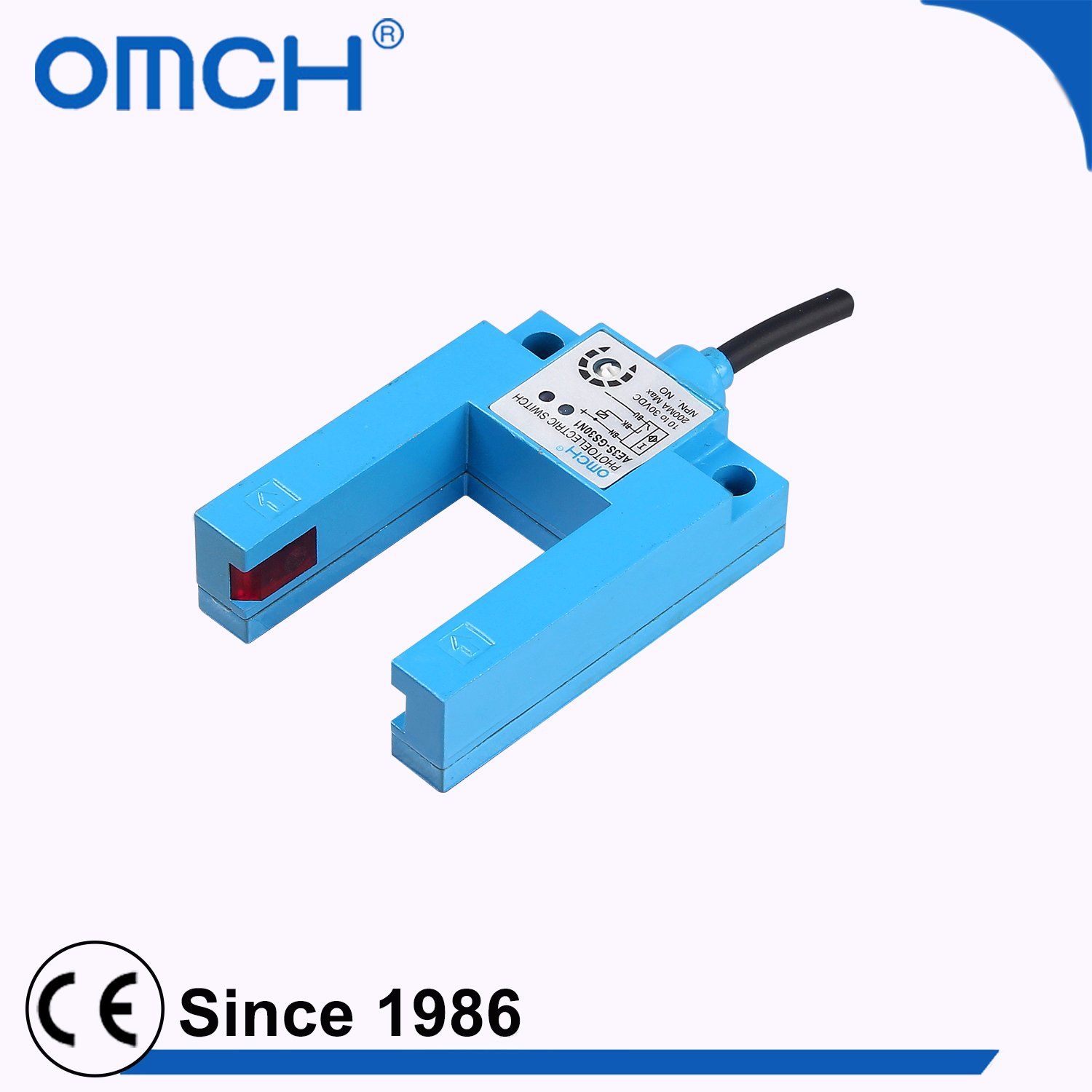

Non-Screen Shield Inductive U Type Photo Proximity Switch Sensor

Connection delay

1.5ms

Light Source

Infrared light 660nm

Supply voltage

DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

Ac type: AC110-220V (36-250V) 50/60Hz

Consumption current

N.P type:20mA below    A type:1.7mA below

Control output

N.P type:300mA below   A type:400mA below  J type: A below contact service life: 0.1 million times

Loop protection

N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

A type: surge absorption

Ambient temperature humidity

During operation,storage: individually-30~+65(No freeze,no drew),

During operation,storage: Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltage range, at rated supply voltage value;

Inside +/-10% detection distance

Protection sturcture

IP65 ICE specification

material

Nickel plated brass(ABS); Detection surface(lens)PMMA
