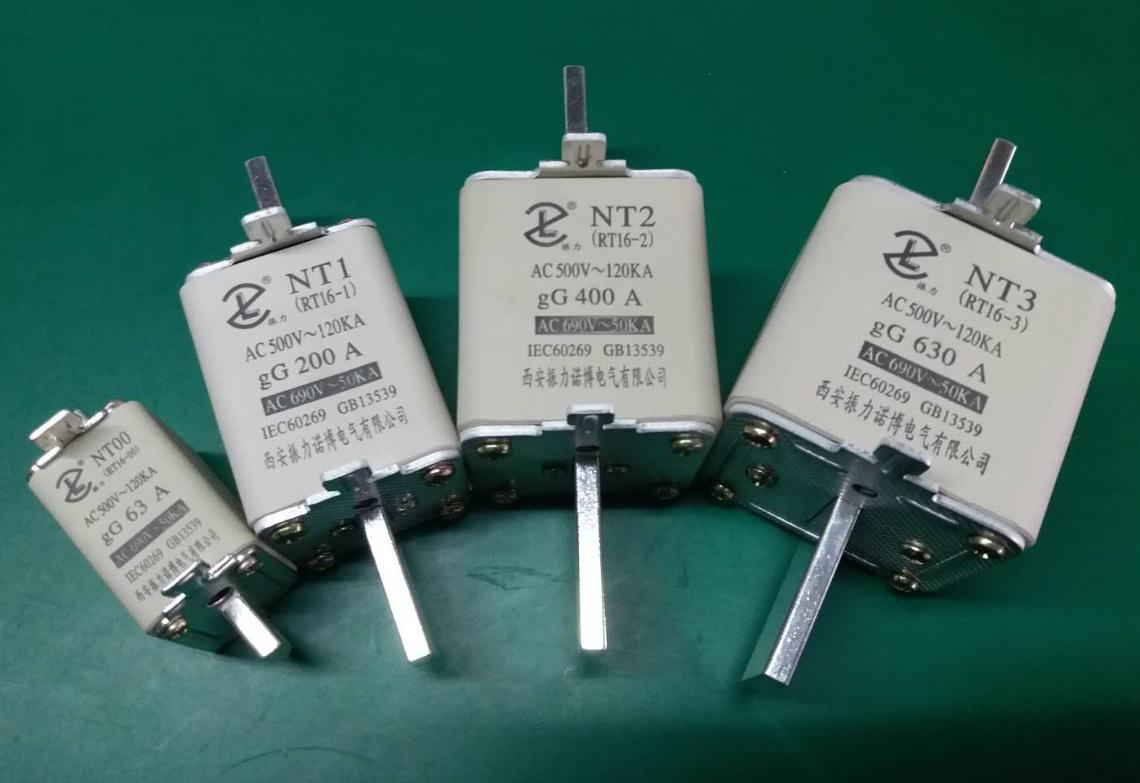

Nt/Nh Low-Voltage High Breaking Capacity Plug-in Blade Contact Fuse

Name: Nt/Nh Low-Voltage High Breaking Capacity Plug-in Blade Contact Fuse
Brand: all-electronics-online.com
SKU: 831661785
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Performance standard: IEC60269; GB/T13539.2
Rated voltage: 500/690V
Rated current: 6A-1250A
Breaking capacity; 120KA/500V AC 100KA/690V AC
Protection type: gG
Installation mode: plug-in
Features: small size, light weight, low power consumption, high breaking capacity, safe and reliable
It applies to short-circuit and overload protection for the power distribution system, wire and cable, motor, circuits of factories and mines, switch electrical appliances and electrical equipment.

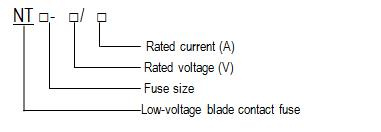

Model description:

Specification parameters of NT/NH fuse

Model	Rated Voltage (V)	Rated Current(A)	Dimension (mm)							Outline Drawing No.
Model	Rated Voltage (V)	Rated Current(A)	A	B	C	D	F	H	K	Outline Drawing No.
NT00/NH00	500/690	6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160	53	78.5	29	57	12	15	45	Fig.1
NT1/NH1	500/690	80, 100, 125, 150, 160, 200, 250	70	135	48	62	12	20	61
NT2/NH2	500/690	125, 160, 200, 250, 300, 350, 400	71	150	58	72	13	25	61
NT3/NH3	500/690	350, 400, 450, 500, 560, 630	71	150	67	82	14	32	61
NT4/NH4	500/690	800, 1000, 1250	73	200	90	120	20	50	62	Fig.2

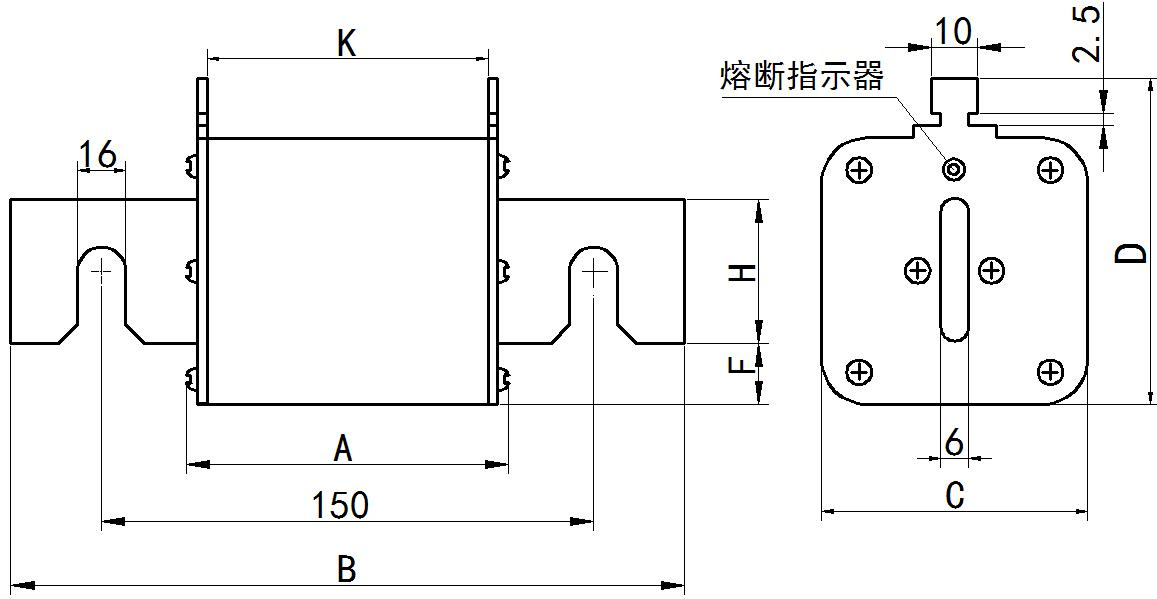

Overall installation dimension

Fig1

Fig2

Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Shape:	Sequare
Fusing Device:	Link Break

Founded on March 7, 1998, Shaanxi Zhenli Electric Power Technology Co., Ltd. (formerly known as Xi'an Zhenli Fuse Co., Ltd. ) was located in F4-402 Lutong Industrial Park, East Section of Kuangshan Road, East Er'huan, Xi'an with the industrial plants covering 1771.08 square meters. As the company business gradually expanded, it was moved to No 2055, Shanglinyuan No. 5 Road, High-tech District, Xi'an in 2017, with three self-built standard plants covering 20847.26 square meters and a total of 80 staff including 8 research staff, 6 professionals and 6 product designers. As required by High-tech District of Xi'an, the company was restructured into Xi'an Xiangyuan Zhenli Electric Co., Ltd., a high-tech enterprise specialized in research and development, production and sales of indoor and outdoor fuses whose production scale and technical level lead the industry in China. So far, the number of fuses running in the power grid in the world is more than 3 million and the company has rich experience of line operation. Its products cover the voltage within 3.6~40.5kV and the current within 0.2A~315A. Its main products belong to new-energy wind-photovoltaic power hybrid power generation system strongly supported and developed by the nation. Currently, its main clients are Schneider, ABB, TBEA, Shandong Taikai, Jiangsu Huapeng and other Top 500 enterprises in the world and listed companies in China. The products are sold as far away as Portugal, Thailand, Mexico, Pakistan and other countries.
