Plug-in Blade Contact Fuse Base and Handle

Name: Plug-in Blade Contact Fuse Base and Handle
Brand: all-electronics-online.com
SKU: 831706635
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Specification parameters for fuse base selection

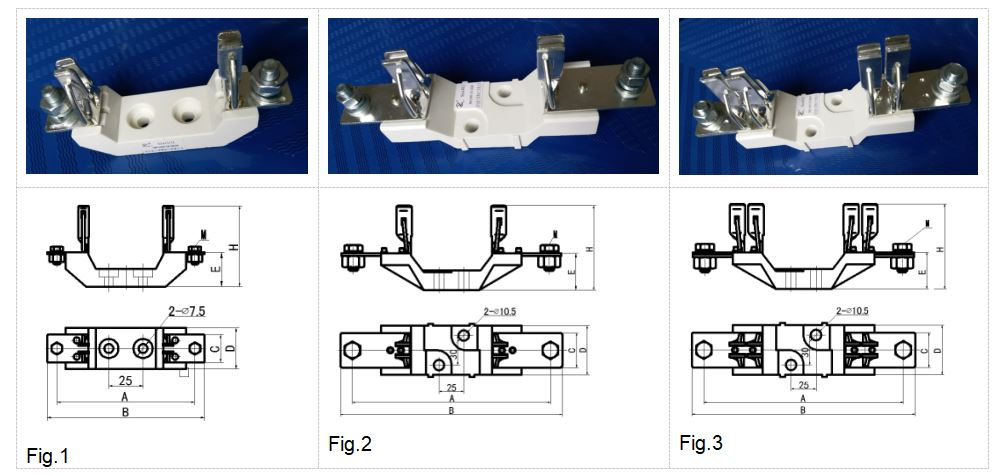

Base Model	Fuse Model	Overall Dimension (mm)							Outline Drawing No.
Base Model	Fuse Model	A	B	C	D	E	H	M	Outline Drawing No.

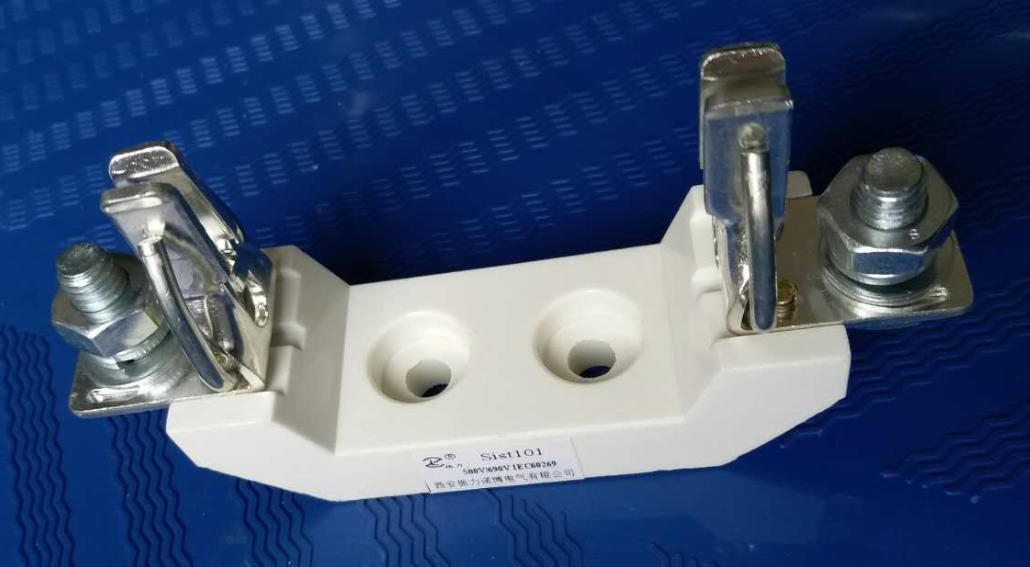

Sist101	NGTC00/NT00/NH00	97	115	20	30	26	58	M8×16	Fig.1
Sist201	NGTC1/NT1/NH1	175	203	35	50	37	82	M10×20	Fig.2
Sist401	NGTC2/NT2/NH2	200	224	35	50	37	85	M10×25	Fig.2
Sist601	NGTC3/NT3/NH3	210	236	35	50	38	96	M12×30	Fig.3

Overall Dimension

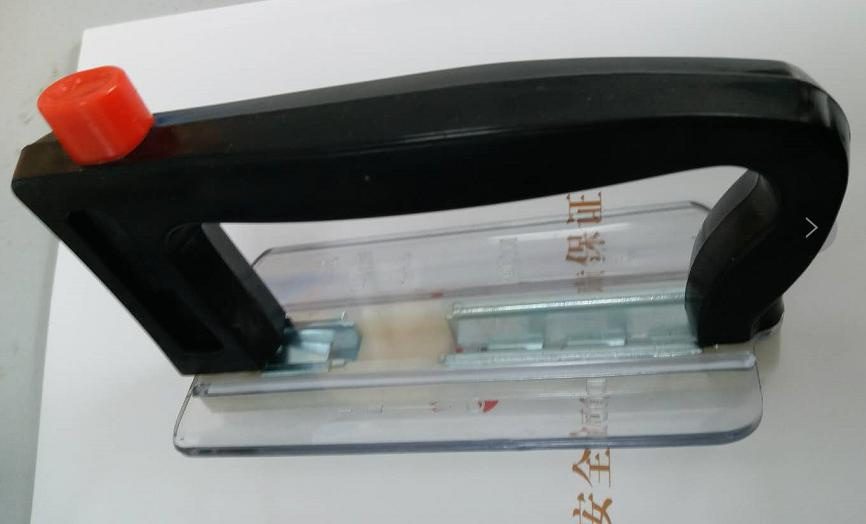

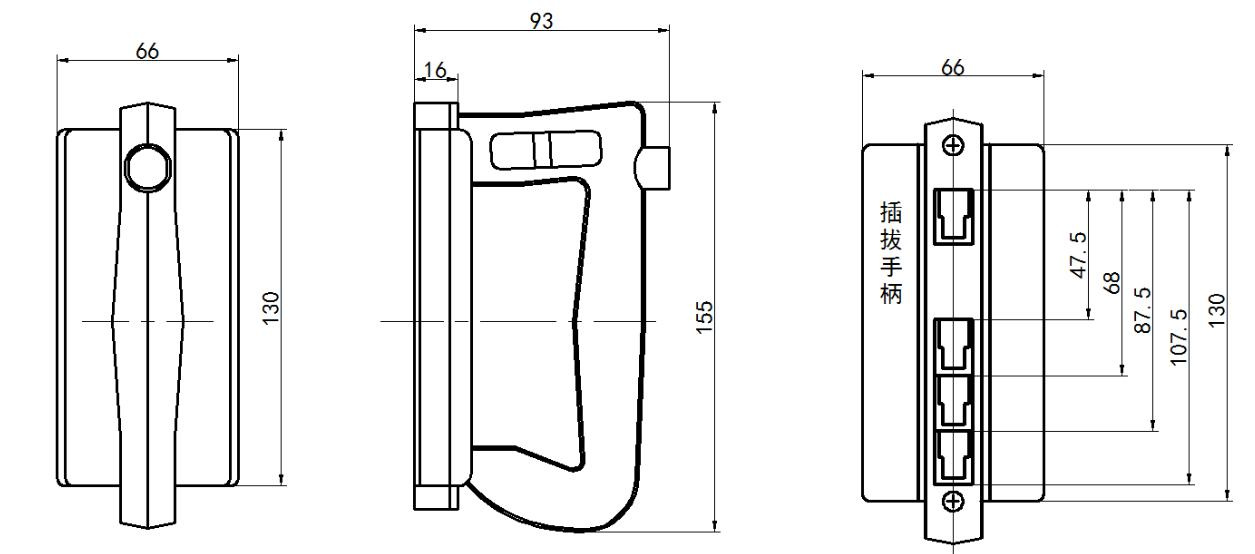

Blade contact fuse handle
The plug-in handle of fuse is used as the dedicated tool for installing and replacing the NT or NH fuse on the corresponding base in the AC 50HZ power distribution unit with the rated voltage up to 1000V and rated current up to 1250A, and it is easy to operate, insulate, safe and reliable. It mainly consists of the buckle, baffle, handle, etc.

Brand:	Zhenli

Founded on March 7, 1998, Shaanxi Zhenli Electric Power Technology Co., Ltd. (formerly known as Xi'an Zhenli Fuse Co., Ltd. ) was located in F4-402 Lutong Industrial Park, East Section of Kuangshan Road, East Er'huan, Xi'an with the industrial plants covering 1771.08 square meters. As the company business gradually expanded, it was moved to No 2055, Shanglinyuan No. 5 Road, High-tech District, Xi'an in 2017, with three self-built standard plants covering 20847.26 square meters and a total of 80 staff including 8 research staff, 6 professionals and 6 product designers. As required by High-tech District of Xi'an, the company was restructured into Xi'an Xiangyuan Zhenli Electric Co., Ltd., a high-tech enterprise specialized in research and development, production and sales of indoor and outdoor fuses whose production scale and technical level lead the industry in China. So far, the number of fuses running in the power grid in the world is more than 3 million and the company has rich experience of line operation. Its products cover the voltage within 3.6~40.5kV and the current within 0.2A~315A. Its main products belong to new-energy wind-photovoltaic power hybrid power generation system strongly supported and developed by the nation. Currently, its main clients are Schneider, ABB, TBEA, Shandong Taikai, Jiangsu Huapeng and other Top 500 enterprises in the world and listed companies in China. The products are sold as far away as Portugal, Thailand, Mexico, Pakistan and other countries.
