Ntep L6e Counter Scales Aluminium Single Point Weighing Load Cell
| Price: |
US $ 1-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FS-L6E |
| Capacity: |
50,60,80,100,150,200,250,300,400,500kg |
| Shipping Way: |
DHL, UPS, EMS, by Sea etc |
| Sample Order: |
Welcomed |
| Material: |
Aluminium |
Product Description

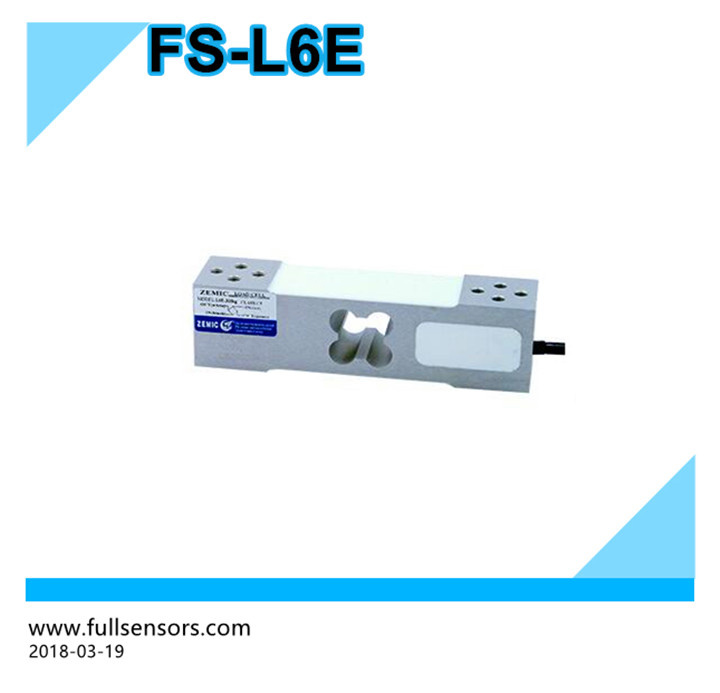

Zemic NTEP L6E 50kg to 500kg Counter Scales Aluminium Single Point Weighing Load Cell
1. L6D15 load cells are available in the capacities as 50,60,80,100,150,200,250,300,400,500kg.
2. Alumium construction with parallel beam.
3. Silicon adhesive sealed, surface anodized, waterproof and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for pricing scale, platform scale and other electronic weighing devices.
6. High accuracy grade C3
7. With NTEP,PTB, NMI,OIML etc approval.| Item | Unit | Parameters |
| Accuracy class | | C3 | C4 | C5 |
| Maximum capacity (Emax) | kg | 50,60,80,100,150,200,250,300,400,500kg |
| Output Sensitivity | mV/V | 2.0 ± 0.2 |
| Combined Error | %FS | ± 0.02 | ± 0.015 | ± 0.01 |
| Creep (dcr) over 30 min | % FS/30min | ±0.0167 | ±0.0125 | ±0.01 |
| Temp. effect on output sensitivity | %FS/10ºC | ±0.0175 | ±0.0131 | ±0.01 |
| Temp. effect on zero balance | %FS/10ºC | ±0.02 | ±0.012 | ±0.009 |
| Zero balance | %FS | ±2 |
| Temp. range compensated | ºC | -10~40ºC |
| Temp. range operating | ºC | -35~65ºC |
| Input resistance | Ω | 406±6 |
| Output resistance | Ω | 350±3 |
| Insulation resistance | Ω | ≥5000(50VDC) |
| Excitation, recommened | V | 5~12(DC) |
| Excitaton, Max | V | 18(DC |
| Safe overload | %FS | 120 |
| Ultimated overload | %FS | 150 |
| Protection calss | | IP65 |
| Cable Diameter | mm | ø5.3 |
| Cable length | m | 2 |
| Recommended platform size | mm | 400*400 |
| Corner correction | | 0.02% load value/100mm |
| Recommended torque on fixation bolts | N.m | 20 |
Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.
So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
Any other questions please do not hesitate to contact us anytime!
