Prod Model:	AE3JK

Product Description

OMCH 30cm Relay Output Diffuse Industrial Photocell Sensor Switch

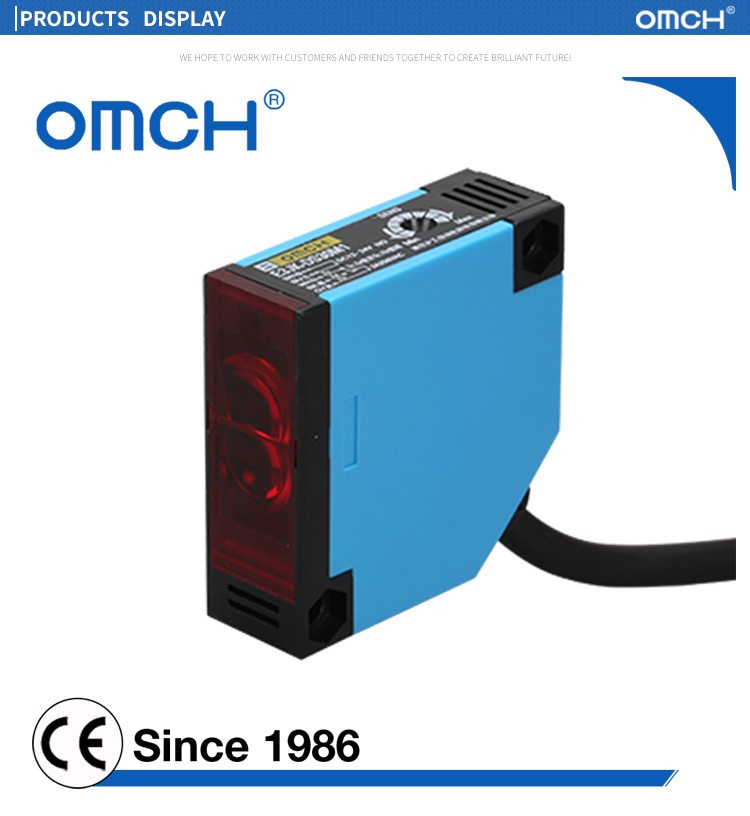

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places witch medium environment resistance
Red LED indicates that it's available to derect the sensor operating state
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

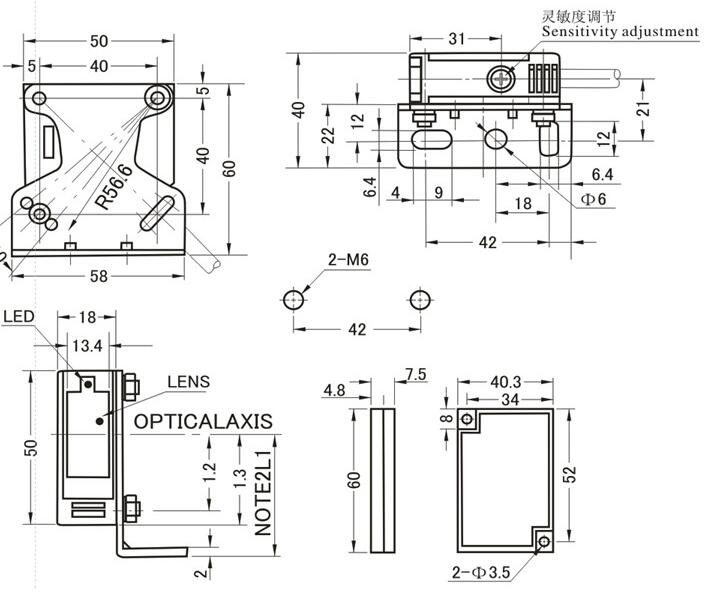

Dimension				185050
Dectection method				Diffuse type		Feedback reflection type	Transmission type
Type	DC type	NPN	NO	AE3JK-DS30N1	AE3JK-DS50N1	AE3JK-R4N1	AE3JK-5DN1-5L
			NC	AE3JK-DS30N2	AE3JK-DS50N2	AE3JK-R4N2	AE3JK-5DN2-5L
			NO+NC	AE3JK-DS30N3	AE3JK-DS50N3	AE3JK-R4N3	AE3JK-5DN3-5L
		PNP	NO	AE3JK-DS30P1	AE3JK-DS50P1	AE3JK-R4P1	AE3JK-5DP1-5L
			NC	AE3JK-DS30P2	AE3JK-DS50P2	AE3JK-R4P2	AE3JK-5DP2-5L
			NO+NC	AE3JK-DS30P3	AE3JK-DS50P3	AE3JK-R4P3	AE3JK-5DP3-5L
	AC type	two-wire	NO	AE3JK-DS30A1	AE3JK-DS50A1	AE3JK-R4A1	AE3JK-5DA1-5L
	AC type	two-wire	NC	AE3JK-DS30A2	AE3JK-DS50A2	AE3JK-R4A2	AE3JK-5DA2-5L
	Relay output	DC illuminate		AE3JK-DS30M1-D	AE3JK-DS50M1-D	AE3JK-R4M1-D	AE3JK-5DM1-5L-D
		AC illuminate		AE3JK-DS30M1-A	AE3JK-DS50M1-A	AE3JK-R4M1-A	AE3JK-5DM1-5L-A
		DC non-illuminate		AE3JK-DS30M2-D	AE3JK-DS50M2-D	AE3JK-R4M2-D	AE3JK-5DM2-5L-D
		AC non-illuminate		AE3JK-DS30M2-A	AE3JK-DS50M2-A	AE3JK-R4M2-A	AE3JK-5DM2-5L-A
Dectection range				30cm±10%	50cm±10%	4m±10%	5m±10%
Set target				transparent/Opaque object	transparent/Opaque object	Opaque object	Opaque object
Detection range regulation				Sensitivity adjuster	Sensitivity adjuster	Sensitivity adjuster	Fixed
Response frequency				1ms 30ms	1ms 30ms	1ms 30ms	1ms 30ms

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
