Prod Model: |
YLJ30A3-10 |
Type: |
Infrared Sensor Switch |
Standard: |
Standard |
Certification: |
CE |
Wires: |
2-Wires, 3-Wires,4-Wires |
Product Description
OMCH Brands CE M30 10mm Distance 600bap High Pressure NPN PNP Type Position Inductive Proximity Switch Linear Position Sensor

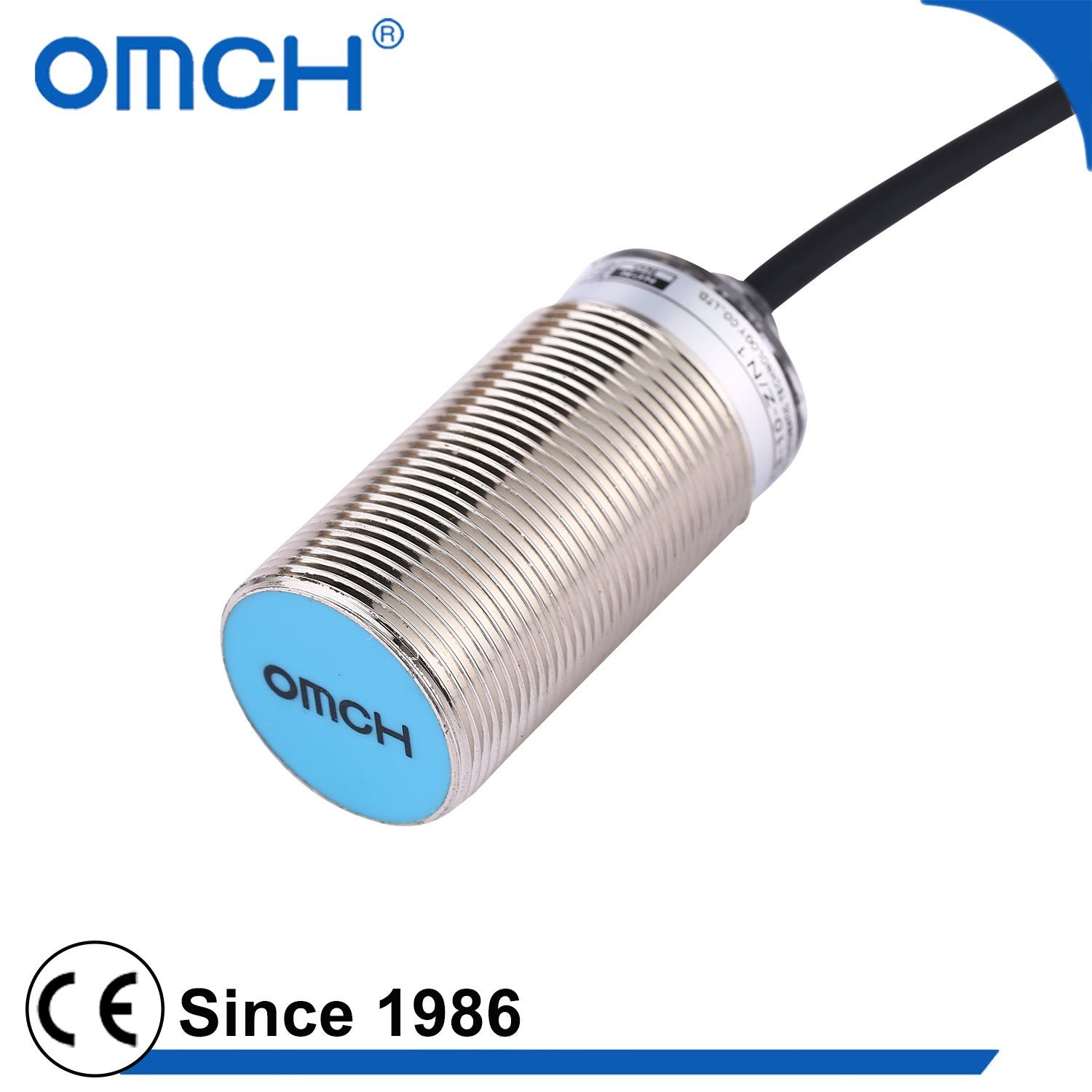

PRODUCT DISPLAY
PRODUCT DESCRIPTION Feature
We sincerely welcome agents from all over the world
Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places witch medium environment resistance
Red LED indicates that it's available to detect the sensor operating state
IP67 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use
Note: High temp resistant products, the highest temp of +120; High pressure type product, the highest pressure is 0-600bap
Type and Specification
We sincerely welcome agents from all over the world

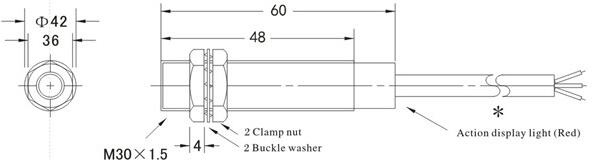

Dimension | M30 |
Mounting way | Screen shield type | Non-Screen shield type |
TYPE | DC TYPE | NPN | NO | YLJ30A3-10-Z/N1 | YLJ30A3-15-Z/N1 |
NC | YLJ30A3-10-Z/N2 | YLJ30A3-15-Z/N2 |
NO+NC | YLJ30A3-10-Z/N3 | YLJ30A3-15-Z/N3 |
PNP | NO | YLJ30A3-10-Z/P1 | YLJ30A3-15-Z/P1 |
NC | YLJ30A3-10-Z/P2 | YLJ30A3-15-Z/P2 |
NO+NC | YLJ30A3-10-Z/P3 | YLJ30A3-15-Z/P3 |
Two Wire | NO | YLJ30A3-10-Z/D1 | YLJ30A3-15-Z/D1 |
NC | YLJ30A3-10-Z/D2 | YLJ30A3-15-Z/D2 |
AC TYPE | Two Wire | NO | YLJ30A3-10-J/A1 | YLJ30A3-15-J/A1 |
NC | YLJ30A3-10-J/A2 | YLJ30A3-15-J/A2 |
3 wire | NO+NC | YLJ30A3-10-J/A3 | YLJ30A3-15-J/A3 |
Set distance | 10 mm+/-10% | 15 mm+/-10% |
Standard detection object | 0~8mm | 0~13mm |
Response frequency | Iron30*30*1 | Iron54*54*1 |
Response frequency | DC:>=0.5kHz AC:50Hz | DC:>=0.5kHz AC:50Hz |
Delay distance: | 10% below of the detection distance |
Detection object | Magnetic metal (the detection distance decreases when it is non-magnetic metal) |
Supply voltage | DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz |
Consumption current | N.P type:13mA below D type:0.8mA below A type:1.7mA below |
Control output | N.P type:300 mA below D type:200mA below A type:400mA below |
Loop protection | N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption |
Ambient temperature humidity | During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH |
Insulation resistance | 50 MΩ about(DC500 megameter) between charging and housing |
Withstand voltage | AC1000V50/60Hz 1 min between charging and housing |
Temperature influence | -30~+65C |
Voltage influence | Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance |
Protection structure | IP68 ICE specification |
material | Housing: stainless steel; Detection surface: ABS |
