Omch Ce M18 8mm Metal Distance Detection Inductive Proximity Switch Sensor

Name: Omch Ce M18 8mm Metal Distance Detection Inductive Proximity Switch Sensor
Brand: all-electronics-online.com
SKU: 840410405
Availability: InStock
Rating: 4.4 (84 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLJ18 series
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

OMCH CE M18 8mm Metal Distance Detection Inductive Proximity Switch Sensor

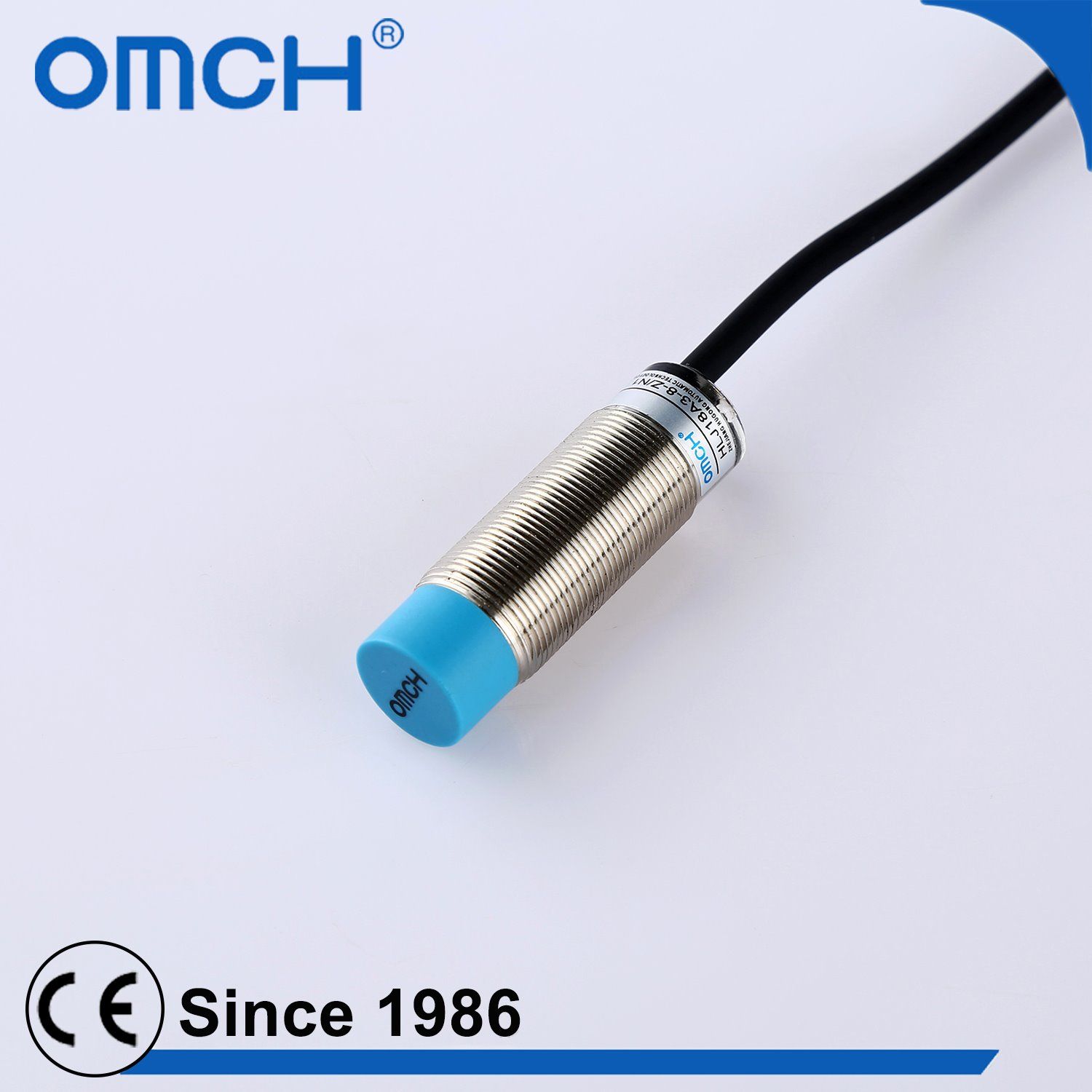

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
   Used in common places witch medium environment resistance
   Red LED indicates that it's available to detect the sensor operating state
   IP67 protection structure (IEC specification)
   Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

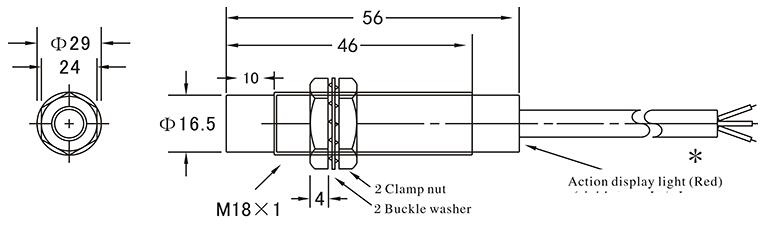

Dimension				M18
Mounting way				Non-screen shield type
TYPE	DC type	N P N	NO	HLJ18A3-8-Z/N1
			NC	HLJ18A3-8-Z/N2
			NO+NC	HLJ18A3-8-Z/N3
		P N P	NO	HLJ18A3-8-Z/P1
			NC	HLJ18A3-8-Z/P2
			NO+NC	HLJ18A3-8-Z/P3
		Two wire	NO	HLJ18A3-8-Z/D1
			NC	HLJ18A3-8-Z/D2
	AC type	Two wire	NO	HLJ18A3-8-J/A1
			NC	HLJ18A3-8-J/A2
		Three wire	NO+NC	HLJ18A3-8-J/A3
Detection distance				8mm+/-10%
Set distance				0~7mm
Standard detection object				Iron18181
Response frequency				DC:>=1kHz AC:50Hz
Delay distance:				10% below of the detection distance
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz
Consumption current				N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output				N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection				N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity				During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation resistance				50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP67 IEC specification
material				(Housing NIckel plated brass), Detection surface:ABS)

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
