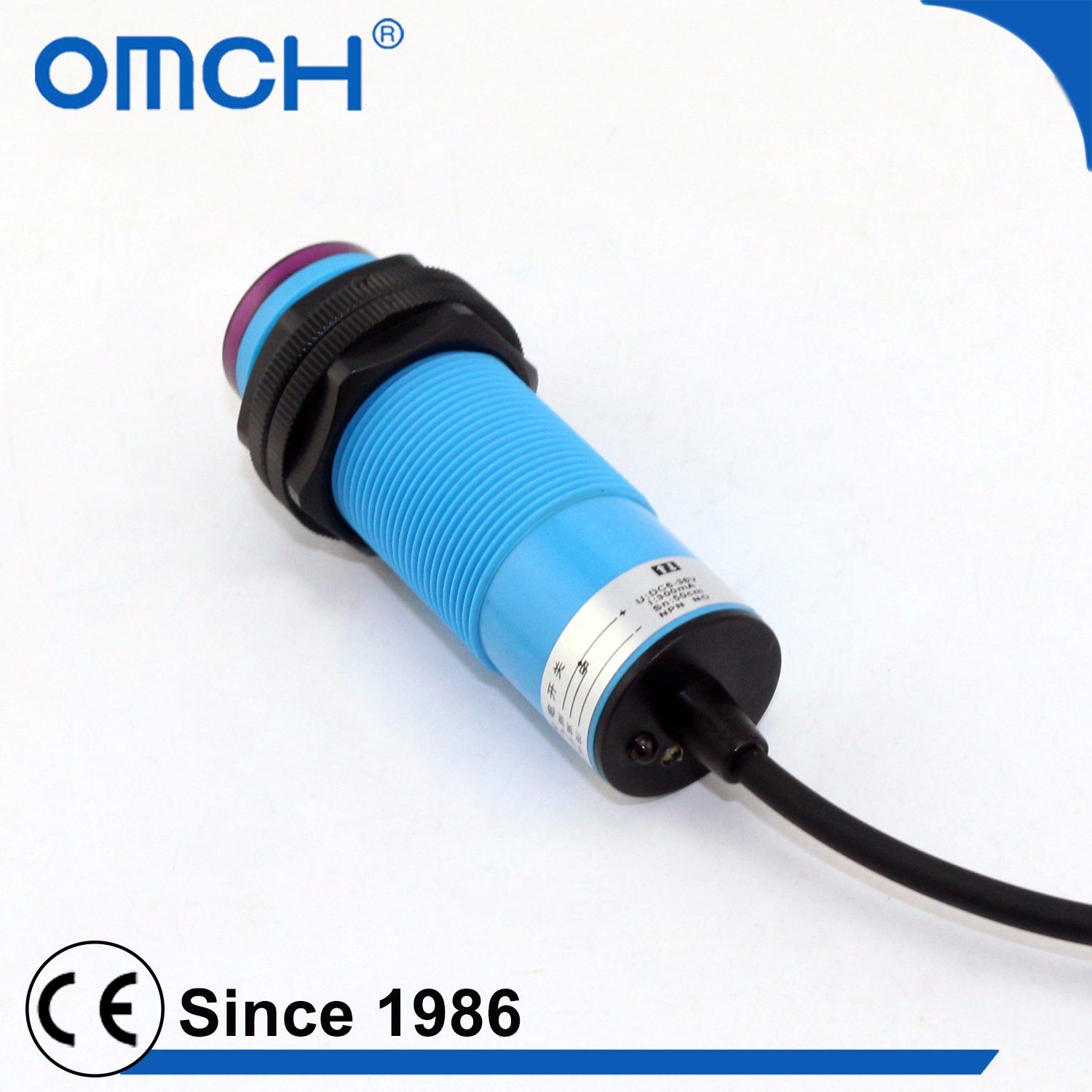

Omch E3f M18 Diffuse Reflection / Reflective / Through Beam Photoelectric Sensor Switch

Name: Omch E3f M18 Diffuse Reflection / Reflective / Through Beam Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 840269425
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	US $ 3-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Quick Details

Place of Origin:Zhejiang, China (Mainland) Brand Name:OMCHModel Number:E3Z Series

Usage:Position Sensor Theory:ptical Sensor Output:Switching Transducer

Certification:CE ROHSDetection Type:diffuse, reflective, through beam type Dimension:M18x1

Protection degree:IP 65Material:ABSDetecting surface (Lens):PMMA

Operating temperature:-30~+65 C

Packaging & Delivery

Packaging Details The photo sensor switch will be packaged in carton box or as requried by buyer
Delivery Time Shipped in 15 days after payment

optical sensors distance photoelectric sensor

Product Descriptio

Type and Specification

Dimension				M18
Mounting way				Diffuse type		Feedback reflex type	Through beam type
Type	DC type	NPN	NO	AE3F-DS10N1	AE3F-DS30N1	AE3F-R2N1	AE3F-5DN1-5L
			NC	AE3F-DS10N2	AE3F-DS30N2	AE3F-R2N2	AE3F-5DN2-5L
			NO+NC	AE3F-DS10N3	AE3F-DS30N3	AE3F-R2N3	AE3F-5DN3-5L
		PNP	NO	AE3F-DS10P1	AE3F-DS30P1	AE3F-R2P1	AE3F-5DP1-5L
			NC	AE3F-DS10P2	AE3F-DS30P2	AE3F-R2P2	AE3F-5DP2-5L
			NO+NC	AE3F-DS10P3	AE3F-DS30P3	AE3F-R2P3	AE3F-5DP3-5L
	AC type	Two wire	NO	AE3F-DS10A1	AE3F-DS30A1	AE3F-R2A1	AE3F-5DA1-5A
	AC type	Two wire	NC	AE3F-DS10A2	AE3F-DS30A2	AE3F-R2A2	AE3F-5DA2-5A
Detection distance				10cm+/-10%	10~30cm+/-10%	2m±10%	5m±10%
Set distance				Transparent/Opaque Object		Opaque Object	Opaque Object
Standard detection object				Fixed		sensitivity adjuster	Fixed
Response time				DC:1ms; AC:30ms		DC:1ms; AC:30ms	DC:1ms; AC:30ms

Connection delay	1.5ms
Light Source	Infrared light 660nm
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:20mA below A type:1.7mA below
Control output	N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection sturcture	IP67 ICE specification
material	Nickel plated brass(ABS); Detection surface(lens)PMMA

FAQ

1. Q: What certifications do you get?

A: We have CE RoHS, etc.

2. Q: Do you provide guarantee for the goods?

A: Yes, and all goods are offered 1year quality guarantee.

3. Q: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

4. Q: How to pay?

A: T/T and west union are acceptable.

5. Q: What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after the payment.

6. Q: What about the Package?

A: Standard export package (paper carton) for shipment, or package as you need.
