Product Description
WE'RE MANUFACTURER.

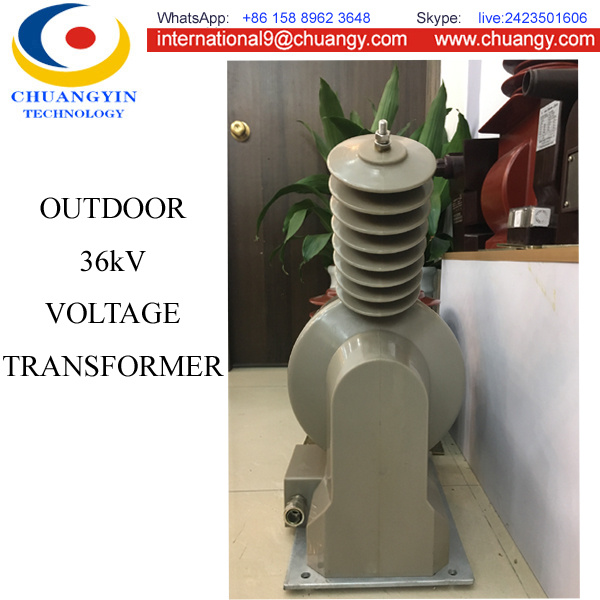

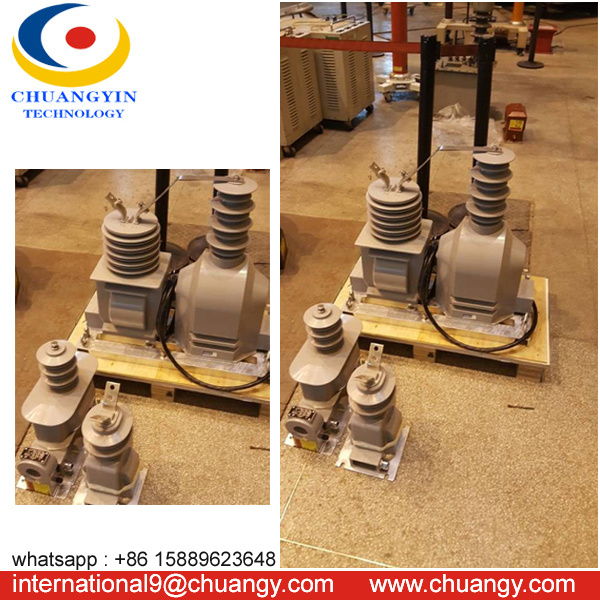

36kV Outdoor Epoxy Resin Voltage Transformer
Description:
JDZW2-36 voltage transformer, outdoor epoxy resin casting and double pole insulated VT, is widely used for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36 kV (Up to 40.5kV).
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.
Main Specification:
1. Rated primary voltage:30 kV or 33 kV or 35 kV etc.
2. Rated secondary voltage:100 V or 110 V.
3. Rated power-frequency withstand voltage: 70kV.
4. Rated lightning impulse withstand voltage: 170kV.
5. Technical standard accords with IEC 60044-2.2003.
Type | Rated Primary Voltage(kV) | Rated Secondary Voltage(kV) | Accuracy classes combination | Rated output (VA) | Thermal limiting current (VA) | Rated insulation level(kV) |
JDZW2-36 | 35 33 | 0.1 0.11 | 0.2 | 60 | 1000 | 36/70/170 (40.5/95/200) |
0.5 | 120 |
1 | 200 |
0.1/0.1 0.11/0.11 | 0.2/0.2 | 25/25 | 500 |
0.2/0.5 | 25/50 |
0.5/0.5 | 50/50 |
Remarks:Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

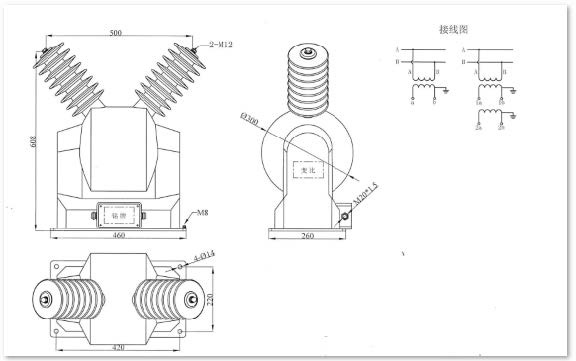

Drawing:

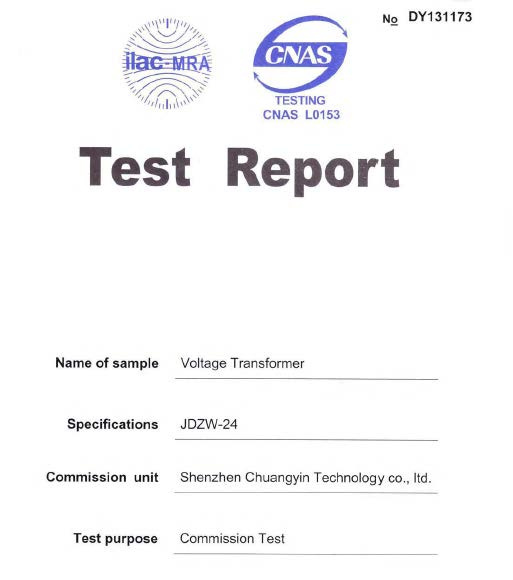

Type test report:
Remarks:Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Laboratory:

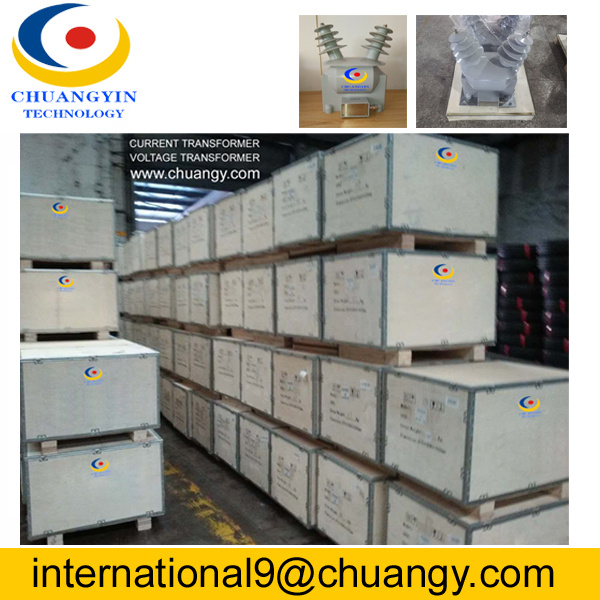

Packing list:
VT/PT/Potential Transformer/Tension Transformer/Pressure Transformer/Voltage Transformer:
CHUANGYIN JDZW2-36 36kv Outdoor, Single Phase Epoxy Resin Voltage Transformer
Unit Price: USD690.00 (FOB SHENZHEN).
Net Weight: 92.5kg.
Gross Weight: 123.5kg.
Volume: 870* 770 * 840 = 0.563CBM.
Delivery Time: 3 Days.
Catalog Please Check The Attachment: JDZW2-36, Please Contact Ms.Becky
