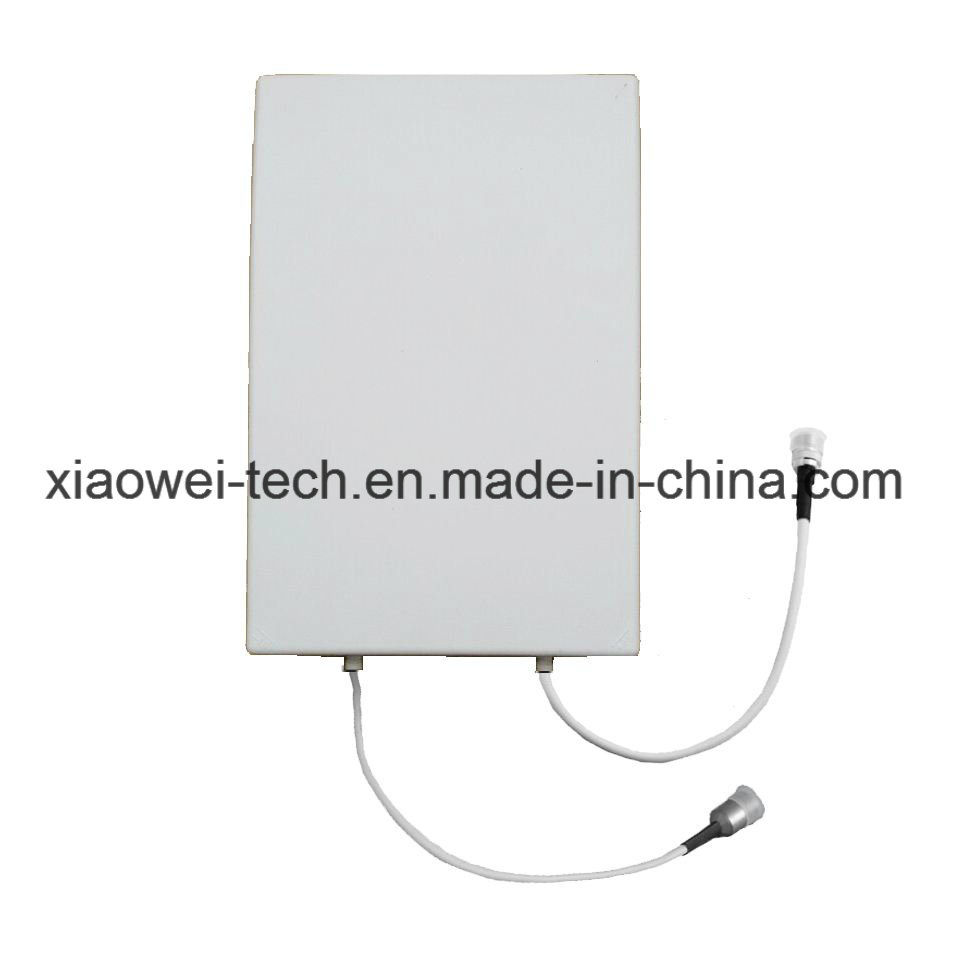

Outdoor 700-2500 Wall Mounting Directional Communication Antenna
| Price: |
US $ 2-6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GDH900/2700A-7/8 |
| Color: |
White |
| Gain: |
2 - 6 dBi |
| Polarization: |
Vertical |
| Radome Material: |
ABS |
| Usage: |
Communication Antenna |
| Material: |
Cu |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5~2 |
| Operating Wavelength: |
Customization |
Product Description
Outdoor 700-2500 Wall Mounting Directional Communication Antenna
Company profile
Shanghai Xiaowei Equipment Co., Ltd. located Shanghai, China which is branch for overseas market of Jiangsu Huacan Telecommunication Co., Ltd. We are specialist supplier of telecommunication equipment and the total solution for your project.
Jiangsu Huacan Telecommunicaton Co. Ltd is a Private Science and Technology Enterprises and National Hi-tech Enterprise which mainly deals with developing, producing and selling wireless base station antenna and antenna accessories. Founded in 2007, the company has an area of 160 thousand square meters, and more than 2000 staffs.Our company has four production bases: feeder accessories and telecommunication cables; basestation antennas and passive components; coaxial connectors and arrestors; cable assembly and indoor Distributed Antenna.
We are the supplier of civil system intergrators, such as Huawei, ZTE, because of the capacity of wireless communication accessories, and a higher products share. Thanks to high quality and thoughtful after-sales service, many system operators (China Mobile, China Unicom and China Telecom etc.) choose our products for their network.
Our companypassed the certification of ISO9001, ISO14001 and the occupational health system certification. As a member of China Communications Standards Association and with more than 140 patents of all kinds, we often participate in making draft and formulating mobile communication products industry standard.
Specification| Frequency Range | 806-960/1710-2500MHz |
| VSWR | ≤1.4 |
| Input Impedance | 50Ω |
| Gain | 7dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 90° |
| Vertical Beamwidth | 65° |
| Electrical Downtilt | 0° |
| Front to Back Ratio | ≥23dB |
| Max, power | 50W |
| Connector Type | N Female |
| Intermediation IM3 | ≤-107dBm |
| Lightning Protection | DC ground |
Mechanical Specifications |
| Height | 210mm×180mm×44mm |
| Weight | 0.6kg |
| Rated Wind Velocity | 210km/h |
| Diameter | UV Protected ABS |
1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.
2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care
3. Attention: The antenna mustn't be near to fire.
Detailed Images
For more information, please feel free to contact us!!
