Overhead XLPE Insulated Aerial Bundle Cable ABC
| Price: |
US $ 0.5-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Application
a. Duplex Service Drop
Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
b. Triplex Service Drop
Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
c. Quadruplex Service Drop.
Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

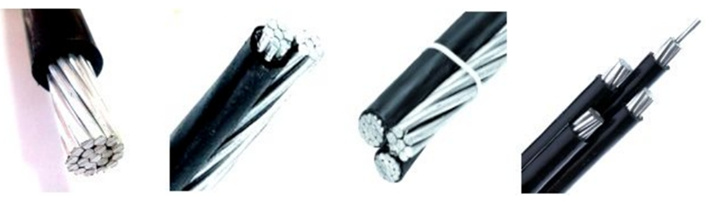

Constructions
Conductor: Round, stranded and compacted aluminum conductor
Insulation: HDPE, XLPE, PVC
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Standard
GB12527-91,IEC502, BS7870-5,NFC33-209
Other standards such as BS,DIN,ASTM and ICEA upon request
Specifications| Phase | Phase | Phase | Approx.Overall Diameter
| Max. D.C. Resistance of Conductor at 20ºC
|
| AAC+XLPE | Compact Conductor | XLPE Insulation |
| No. X Normal Cross Section of Cores | No.of Al Wires | Overall Diameter | Normal Thickness | Min. | Diameter |
| No. X mm2 | - | mm | mm | mm | mm | mm | ohm/km |
| 1 X 10 | 7 | 4.05 | 1 | 0.8 | 6.05 | 6.05 | 3.08 |
| 1 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 7.2 | 1.91 |
| 1 X 25 | 7 | 6 | 1.2 | 0.98 | 8.4 | 8.4 | 1.2 |
| 1 X 35 | 7 | 7 | 1.4 | 1.16 | 9.8 | 9.8 | 0.868 |
| 1 X 50 | 7 | 8.3 | 1.4 | 1.16 | 11.1 | 11.1 | 0.641 |
| 1 X 70 | 19 | 9.8 | 1.4 | 1.16 | 12.6 | 12.6 | 0.443 |
| 1 X 95 | 19 | 11.6 | 1.6 | 1.34 | 14.8 | 14.8 | 0.32 |
| 1 X 120 | 19 | 13 | 1.6 | 1.34 | 16.2 | 16.2 | 0.253 |
| 1 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 18.2 | 0.206 |
| 1 X 185 | 36 | 16.2 | 2 | 1.7 | 20.2 | 20.2 | 0.164 |
| 1 X 240 | 36 | 18.4 | 2.2 | 1.88 | 22.8 | 22.8 | 0.125 |
| 2 X 10 | 7 | 4.05 | 1 | 0.8 | 6.05 | 12.1 | 3.08 |
| 2 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 14.4 | 1.91 |
| 2 X 25 | 7 | 6 | 1.2 | 0.98 | 8.4 | 16.8 | 1.2 |
| 2 X 35 | 7 | 7 | 1.4 | 1.16 | 9.8 | 19.6 | 0.868 |
| 2 X 50 | 7 | 8.3 | 1.4 | 1.16 | 11.1 | 22.2 | 0.641 |
| 2 X 70 | 19 | 9.8 | 1.4 | 1.16 | 12.6 | 25.2 | 0.443 |
| 2 X 95 | 19 | 11.6 | 1.6 | 1.34 | 14.8 | 29.6 | 0.32 |
| 2 X 120 | 19 | 13 | 1.6 | 1.34 | 16.2 | 32.4 | 0.253 |
| 2 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 36.4 | 0.206 |
| 2 X 185 | 36 | 16.2 | 2 | 1.7 | 20.2 | 40.4 | 0.164 |
| 2 X 240 | 36 | 18.4 | 2.2 | 1.88 | 22.8 | 45.6 | 0.125 |
| 3 X 10 | 7 | 4.05 | 1 | 0.8 | 6.05 | 13.07 | 3.08 |
| 3 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 15.55 | 1.91 |
| 3 X 25 | 7 | 6 | 1.2 | 0.98 | 8.4 | 18.14 | 1.2 |
| 3 X 35 | 7 | 7 | 1.4 | 1.16 | 9.8 | 21.17 | 0.868 |
| 3 X 50 | 7 | 8.3 | 1.4 | 1.16 | 11.1 | 23.98 | 0.641 |
| 3 X 70 | 19 | 9.8 | 1.4 | 1.16 | 12.6 | 27.22 | 0.443 |
| 3 X 95 | 19 | 11.6 | 1.6 | 1.34 | 14.8 | 31.97 | 0.32 |
| 3 X 120 | 19 | 13 | 1.6 | 1.34 | 16.2 | 34.99 | 0.253 |
| 3 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 39.31 | 0.206 |
| 3 X 185 | 36 | 16.2 | 2 | 1.7 | 20.2 | 43.63 | 0.164 |
| 3 X 240 | 36 | 18.4 | 2.2 | 1.88 | 22.8 | 49.25 | 0.125 |
| 4 X 10 | 7 | 4.05 | 1 | 0.8 | 6.05 | 14.64 | 3.08 |
| 4 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 17.42 | 1.91 |
| 4 X 25 | 7 | 6 | 1.2 | 0.98 | 8.4 | 20.33 | 1.2 |
| 4 X 35 | 7 | 7 | 1.4 | 1.16 | 9.8 | 23.72 | 0.868 |
| 4 X 50 | 7 | 8.3 | 1.4 | 1.16 | 11.1 | 26.86 | 0.641 |
| 4 X 70 | 19 | 9.8 | 1.4 | 1.16 | 12.6 | 30.49 | 0.443 |
| 4 X 95 | 19 | 11.6 | 1.6 | 1.34 | 14.8 | 35.82 | 0.32 |
| 4 X 120 | 19 | 13 | 1.6 | 1.34 | 16.2 | 39.2 | 0.253 |
| 4 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 44.04 | 0.206 |
| 4 X 185 | 36 | 16.2 | 2 | 1.7 | 20.2 | 48.88 | 0.164 |
| 4 X 240 | 36 | 18.4 | 2.2 | 1.88 | 22.8 | 55.18 | 0.125 |
1. Duplex Service Drop-Aluminum Conductor
| Code Name | Phase Conductor | Bare Natural | Weight | Ampacity |
| Size&No. of Wires | Insulation Thickness | Nominal Diameter | Size&No.of Wire | Rated Strength | XLPE | Al | Total |
| Bare | OD | |
| | | mm | mm | mm | | kg | kg/km | kg/km | kg/km | A |
| AAC |
| Pekingese | 6-Solid | 1.14 | 4.1 | 6.4 | 6-7 | 255 | 20.8 | 72.9 | 94 | 78 |
| Collie | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 255 | 23.8 | 72.9 | 97 | 78 |
| Cocker | 6-7 | 1.52 | 4.6 | 7.7 | 6-7 | 255 | 32.7 | 72.9 | 106 | 78 |
| Dachshund | 4-Solid | 1.14 | 5.2 | 7.5 | 6-7 | 400 | 26.8 | 114.6 | 141 | 103 |
| Spaniel | 4-7 | 1.14 | 5.9 | 8.2 | 6-7 | 400 | 29.8 | 116.1 | 146 | 103 |
| Doberman | 2-7 | 1.14 | 7.4 | 9.7 | 2-7 | 612 | 38.7 | 184.5 | 223 | 136 |
| Basset | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 903 | 64.0 | 294.7 | 359 | 182 |
| AAAC |
| Chihuahua | 6-Solid | 1.14 | 4.1 | 6.4 | 6-7 | 499 | 20.8 | 72.9 | 94 | 78 |
| Vizsla | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 499 | 23.8 | 72.9 | 97 | 78 |
| Harrier | 4-Solid | 1.14 | 5.2 | 7.5 | 4-7 | 798 | 26.8 | 116.1 | 143 | 103 |
| Afghan | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 2023 | 64.0 | 296.1 | 360 | 182 |
| Heeler | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-7 | 2023 | 64.0 | 296.1 | 360 | 182 |
| ACSR |
| Setter | 6-Solid | 1.14 | 4.1 | 6.4 | 6/6/01 | 540 | 20.8 | 72.9 | 94 | 78 |
| Shepherd | 6-7 | 1.14 | 4.6 | 6.9 | 6/6/01 | 540 | 23.8 | 72.9 | 97 | 78 |
| Eskimo | 4-Solid | 1.14 | 5.2 | 7.5 | 4/6/01 | 844 | 26.8 | 114.6 | 141 | 103 |
| Bloodhound | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-6/1 | 1987 | 64.0 | 294.7 | 359 | 182 |
| Bull | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-6/1 | 1987 | 64.0 | 294.7 | 359 | 182 |
2. Triplex Service Drop-Aluminum Conductor
| Code Name | Phase Conductor | Bare Natural | Weight | Ampacity |
| Size&No. of Wires | Insulation Thickness | Nominal Diameter | Size&No.of Wire | Rated Strength | XLPE | Al | Total |
| Bare | OD | |
| | | mm | mm | mm | | kg | kg/km | kg/km | kg/km | A |
| AAC |
| Halotis | 6-Solid | 1.14 | 4.115 | 6.4 | 6-7 | 255 | 42 | 110 | 152 | 78 |
| Pike | 6-7 | 0.76 | 4.67 | 6.2 | 6-7 | 255 | 31 | 112 | 143 | 78 |
| Patella | 6-7 | 1.14 | 4.67 | 7.0 | 6-7 | 255 | 48 | 112 | 159 | 78 |
| Fusus | 4-Solid | 1.14 | 5.182 | 7.5 | 4-7 | 400 | 52 | 177 | 229 | 103 |
| Oyster | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 400 | 60 | 177 | 237 | 103 |
| Clam | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 76 | 281 | 359 | 136 |
| Murex | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 903 | 128 | 385 | 513 | 182 |
| AAAC |
| Homarus | 6-Solid | 1.14 | 4.115 | 6.4 | 6-7 | 499 | 42 | 118 | 159 | 78 |
| Cabera | 6-7 | 1.14 | 4.65 | 6.9 | 6-7 | 499 | 48 | 118 | 165 | 78 |
| Artemia | 4-Solid | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 52 | 162 | 214 | 103 |
| Sanderab | 1/0-7 | 1.52 | 9.35 | 12.4 | 2-7 | 1270 | 128 | 409 | 537 | 182 |
| Leda | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 2023 | 130 | 473 | 603 | 182 |
| ACSR |
| Cavolinia | 2/0-7 | 1.52 | 10.5 | 13.564 | 1-6/1 | 1610 | 146 | 496 | 697 | 279 |
| Aega | 3/0-19 | 1.52 | 11.9 | 14.986 | 1/0-6/1 | 1987 | 168 | 625 | 862 | 322 |
| Cuttlefish | 4/0-7 | 1.52 | 13.3 | 16.307 | 2/0-6/1 | 2404 | 191 | 787 | 1066 | 372 |
| Callista | 266.8-19 | 2.03 | 15.1 | 19.126 | 3/0-6/1 | 3003 | 280 | 991 | 1384 | 410 |
| Limpet | 336.4-19 | 2.03 | 16.9 | 20.980 | 336.4-18/1 | 3937 | 320 | 1429 | 1823 | 506 |
3. Quadruplex Service Drop-Aluminum Conductor
| Code Name | Phase Conductor | Bare Natural | Weight | Ampacity |
| Size&No. of Wires | Insulation Thickness | Nominal Diameter | Size&No.of Wire | Rated Strength | XLPE | Al | Total |
| Bare | OD | |
| | | mm | mm | mm | | kg | kg/km | kg/km | kg/km | A |
| AAC |
| Libyan | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 902.644 | 192 | 598 | 790 | 182 |
| Orloff | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 1138.511 | 217 | 754 | 973 | 210 |
| Percheron | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 1138.511 | 220 | 754 | 976 | 210 |
| Mongolian | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 1378.914 | 249 | 951 | 1199 | 242 |
| Oldenburg | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 1737.250 | 289 | 1199 | 1490 | 279 |
| AAAC |
| Bay | 6-Solid | 1.143 | 4.115 | 6.401 | 6-7 | 503.485 | 63 | 155 | 217 | 78 |
| Arabian | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 784.711 | 89 | 247 | 336 | 103 |
| Saddle | 1-19 | 1.524 | 8.433 | 11.481 | 2-7 | 1270.052 | 171 | 466 | 637 | 158 |
| Plow | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 2023.011 | 192 | 624 | 814 | 182 |
| Sherland | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-7 | 2023.011 | 193 | 624 | 817 | 182 |
| ACSR |
| Standardbred | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-6/1 | 1986.724 | 192 | 598 | 859 | 182 |
| Grullo | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-6/1 | 2404.027 | 220 | 753 | 1063 | 210 |
| Mare | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-6/1 | 3002.766 | 249 | 951 | 13.8 | 242 |
| Stallion | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-6/1 | 3787.477 | 286 | 1198 | 1622 | 279 |
| Appaloosa | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-6/1 | 3787.477 | 289 | 1198 | 1627 | 279 |

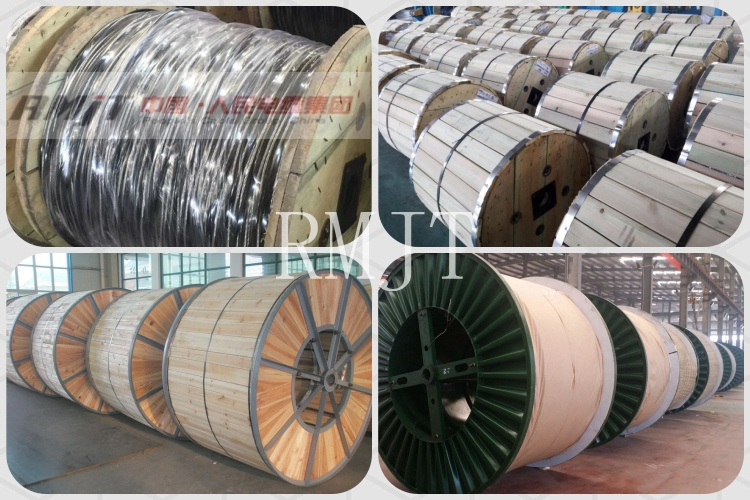

ABC Cable Packaging
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

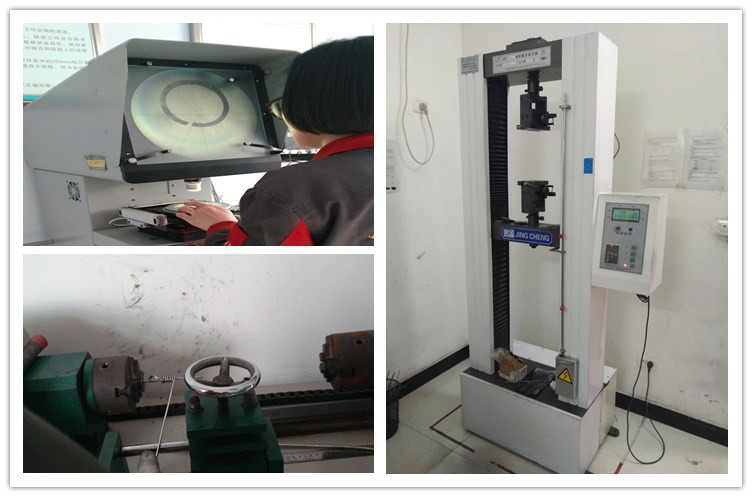

Test Progress
We have professional equipment and technical person to test the products, the equipments will be examined at a certain time to ensure the accuracy of the result, and the quality of products.
FAQ
Q:How many years has People's Cable Group been in production?
A:People's Cable Group CO., Ltd was founded in 2007, up to now it has been engaged in wires and cables industry over 10 years.
Q:What kind of products does People's Cable Croup manufacture?
A:(1)Aerial Bundled Cable: Duplex, Triplex, Quadruplex Service Drop Aluminum Conductor, etc.
(2)Bare Conductor: AAC, AAAC, ACSR,AACSR, ACAR, ACSR/AW, etc.
(3)Building Wire: Copper/Aluminum Conductor PVC/XLPE Insulated Electrical Wire, etc.
(4)Power Cable: Copper/Aluminum Conductor PVC/XLPE Insulated Steel Armoured Cable in Low,Medium,High Voltage, etc.
(5)Rubber Cable,Galvanized Steel Wire/Stranded, Welding Cable, Control Cable and so on.
Q:I didn't find the cable which I need in this page?
A:Because of the limitation of platform, we didn't show all specifications of cables. If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

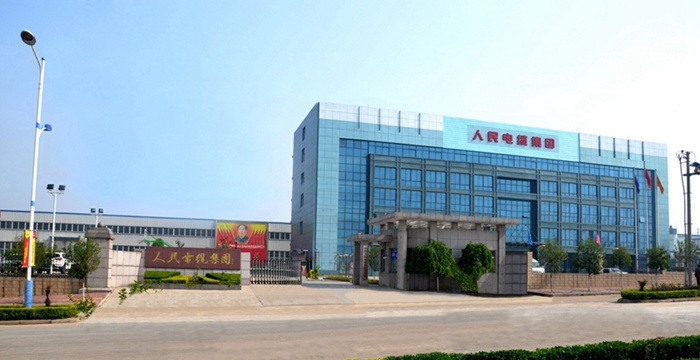

About Us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Our advantages:
1.27 years manufacture experience and 15 years export experience
2.With our own factory, supply stability with low cost and excellent quality
3.Product certification: CCC, ISO, BV, SGS, UL, CE and so on
4.OEM and ODM service available
5.Rapid delivery and feedback, faster lead time
6.Free sample is available
We are wires, cables and bare conductors manufacturer more than 20 years, till now our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
For more details please check our website as my contact information.
If you have any problem, please do not hesitate to let us know, we will offer you our best service.
Contact Us
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Attn: Kathy Wong
Tel:+86 15981975851
Fax:+86-371-55632837
| Prod Model: |
ABC Cable |
| OEM: |
Yes |
| Standard: |
IEC, BS, DIN, ASTM, NFC |
| Manufacturer: |
People's Cable Group |
| Voltage Type: |
Low Voltage, Medium Voltage |
| Sample: |
Free |
| Rated Voltage: |
0.6/1kv, 11kv, 22kv, 35kv |
| Core: |
Single/Duplex / Triplex/ Quadruplex |
| Color: |
Black, Grey, Red or as Customed |
| Advantage: |
Factory Supply |
| Delivery Time: |
15-25days |
| Current: |
DC & AC |
| Sheath Material: |
N/a |
| Certification: |
ISO, CCC, BV, SGS |
| Insulation Material: |
XLPE/PVC/PE |
| Application: |
Construction, Overhead, Underground, Industrial |
| Brand: |
Rmjt |
| Voltage: |
Low, Medium, High Voltage |
| Wire Core Material: |
AAC, AAAC, ACSR |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
