PCB Metal Core with Insulated Holes

Name: PCB Metal Core with Insulated Holes
Brand: all-electronics-online.com
SKU: 731493212
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Professional PCB Board Manufacturer with Low Price

*Layers: 1-22
*Base material: FR-4 CEM-1
*Thickness: 0.2-5.0mm
*Solder mask: Green, black, red, yellow, white
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold, OSP. Lead free HASL.
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours
4 layer- 8 layer pcb delivery time: 48-96 hours

Payment: T/T in advance (Western Union , payple is welcomed)

2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.

3. Sample can be delivered in 3days

4. Shipping freight are quoted under your requests

5. Shipping port: Shen zhen,Mainland China

6. Discounts are offered based on order quantities

7. MOQ: 1PCS

Prod Model:	FD
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Base Material:	Fr4

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

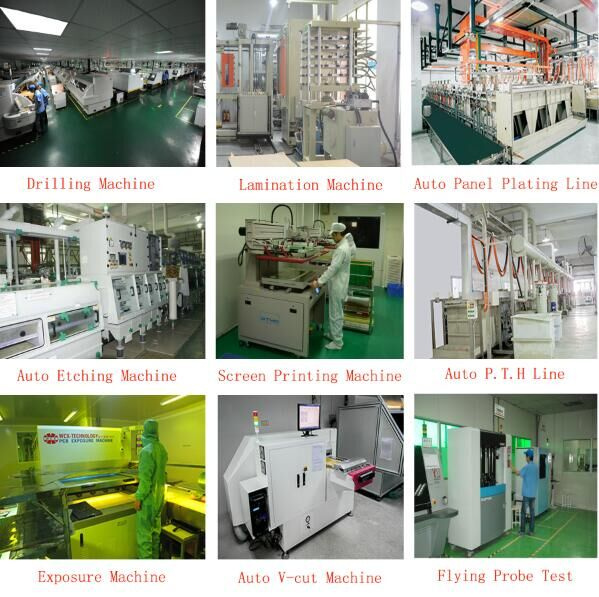

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
