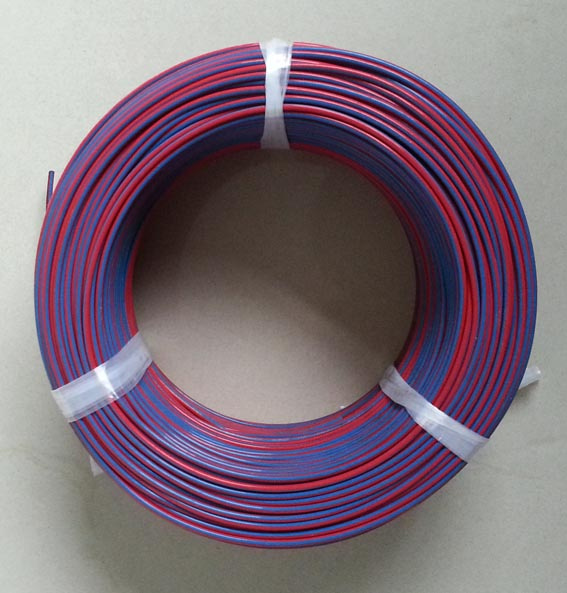

PFA Teflon Insulated High Temperature Wire

Name: PFA Teflon Insulated High Temperature Wire
Brand: all-electronics-online.com
SKU: 761934695
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	US $ 0.02/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	1571
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Air Purifier
Certification:	CCC
Control Type:	Mechanical
Type:	Temperature Controller
Display Type:	LCD
Material:	Copper

Product Description

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Hoochan
Model Number: AWM1332
Conductor Material: bare,silver, tinned copper
Insulation Material: FEP teflon
Application: up to 200C degree

Packaging & Delivery

Packaging Details:	rolls in carton
Delivery Detail:	20 days

·Rated Voltage:300V
·Rated temperature:200°C
·Conductor: nickel-coated, tin-coated and silver-coated copper wire
·Insulator: FEP teflon

AWG	Conductor			Insulation		Wire OD		Conductor Resistance
AWG	section	Structure	Diameter	Nominal thick	Min. thick	Nominal	Allowance	20°C
NO.	mm²	No./mm	mm	mm	mm	mm	mm	Ω/KM
30	0.05	1/0.254	0.254	0.51	0.46	1.28	±0.10	361
30	0.05	7/0.10	0.30	0.51	0.46	1.32	±0.10	381
28	0.08	1/0.32	0.32	0.51	0.46	1.34	±0.10	227
28	0.08	7/0.12	0.36	0.51	0.46	1.38	±0.10	239
26	0.128	1/0.42	0.42	0.51	0.46	1.44	±0.10	143
26	0.128	7/0.16	0.48	0.51	0.46	1.50	±0.10	150
24	0.21	1/0.52	0.52	0.51	0.46	1.54	±0.10	89.3
	0.21	7/0.20	0.60	0.51	0.46	1.62	±0.10	94.2
	0.21	19/0.12	0.60	0.51	0.46	1.62	±0.10	94.2
22	0.33	1/0.65	0.65	0.51	0.46	1.67	±0.10	56.4
	0.33	7/0.25	0.75	0.51	0.46	1.77	±0.10	59.4
	0.33	19/0.15	0.75	0.51	0.46	1.77	±0.10	59.4
20	0.52	1/0.82	0.82	0.51	0.46	1.84	±0.10	35.2
	0.52	7/0.31	0.93	0.51	0.46	1.95	±0.10	36.7
	0.52	19/0.19	0.95	0.51	0.46	1.97	±0.10	36.7
18	0.823	19/0.235	1.18	0.51	0.46	2.20	±0.10	23.2
17	1.04	19/0.265	1.33	0.51	0.46	2.35	±0.10	18.3
16	1.34	19/0.30	1.50	0.51	0.46	2.52	±0.10	14.6
15	1.65	19/0.33	1.65	0.51	0.46	2.67	±0.10	11.3
14	2.08	19/0.375	1.88	0.51	0.46	2.90	±0.10	8.96
13	2.63	19/0.42	2.10	0.51	0.46	3.12	±0.10	7.10
12	3.31	19/0.475	2.38	0.51	0.46	3.40	±0.10	5.64
11	4.19	19/0.53	2.65	0.51	0.46	3.67	±0.10	4.48
10	5.24	37/0.425	2.98	0.51	0.46	4.00	±0.10	3.546

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
