Phosphine PH3 Detector Sensor 1000 ppm Environmental Control Toxic Gas Safety Process Control Electrochemical Compact

Name: Phosphine PH3 Detector Sensor 1000 ppm Environmental Control Toxic Gas Safety Process Control Electrochemical Compact
Brand: all-electronics-online.com
SKU: 838109265
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 100-300/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Gas Module Introduction
FAD gas module with two/three wire TTL/0-20mA/RS485 output, integrates toxic gas sensor + transmitter board. Adopting imported advanced electrochemical gas sensors, it has features of high accuracy, long lifetime, high stability and high anti-interference. The module is designed to prevent circuit reversed connection, high voltage, high current and lightning.

Gas Module Feature

- Long lifetime imported advanced electrochemical sensors

- High accuracy op ams, power supply IC, stable and sensitive

- Detect low or high concentration toxic gases precisely

- High anti-interference ability

- Over range protection, reversed polarity protection and lightning protection

- Low power consumption with a standard 4-20mA two/three-wire signal output

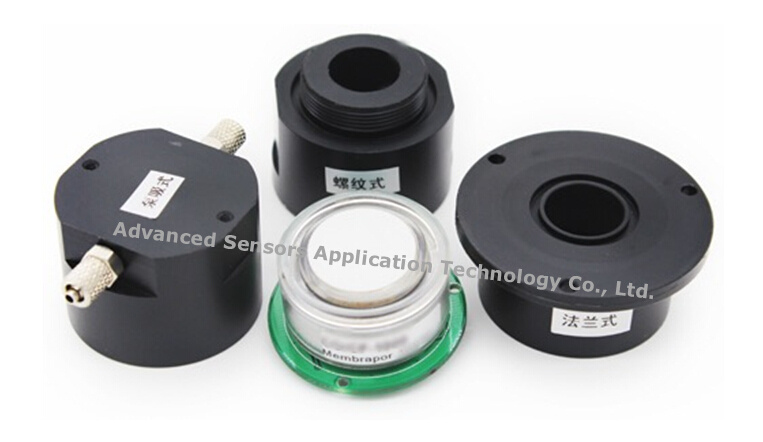

- Interface: pump, diffusing, flange, flange thread types

- 12-36VDC operating voltage

Sensor Performance Characteristics

Nominal Range	0 - 1000 ppm
Maximum Overload	2000 ppm
Expected Operation Life	2 years in air
Output Signal	100 ± 25 nA/ppm
Resolution (Electronics dependent)	1.0 ppm
Temperature Range	-20 °C to 50 °C
Pressure Range	Atmospheric ±10%
Pressure Coefficient	No data
T90 Response Time	< 25 sec
Relative Humidity Range	15 % to 90 % R.H. non-condensing
Typical Baseline Range (pure air, 20°C)	<1.0 ppm
Maximum Zero Shift(20°C to +40°C)	N.D.
Typical Long Term Output Drift	< 2% signal loss/month
Recommended Load Resistor	10 Ohm
Bias Voltage	Not recommended
Repeatability	< 2 % of signal
Output Linearity	Linear

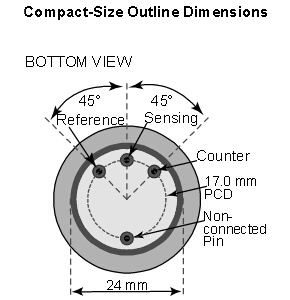

Sensor Physical Characteristics

Weight	~ 13 g
Position Sensitivity	None
Storage Life	Six months in container
Recommended Storage Temperature	5 °C - 20 °C
Warranty Period	12 months from date of dispatch

Sensor Cross-sensitivity Data

Interfering Gas	Concentration(ppm)	Reading(ppm)
CO	100	0
H2S	34	8
NO	100	0
NO2	100	-30
SO2	100	25
H2	100	0
C2H4	100	0
SiH4	10	5

Performance data conditions: 20 °C, 50% RH, 1013 mbar

Module Parameters

Module type	GM-I2(3)-M/C/S--**/G/P/F/FL
Detected gas	Toxic gas
Detecting principle	Electrochemistry
Sampling	Diffusing pump flange thread
Responding time	30s~40s(of the sensor)
Module accuracy	≤±3%FS(actual concentration, higher accuracy depends on specified sensors)
Module repeatability	≤±2% FS
Module linear error	≤±2% FS
Module zero temperature drift	≤±2% (FS/year)
Module operating temperature	-40~80°C
Module humidity	0-95%RH(non-condensation)
Sensor operating temperature	-20°C~50°C
Sensor humidity	0-90%RH(non-condensation)
Signal output	TTL/4-20mA /RS485 (two or three wire)
Transmitting distance	1000 meters(RS485)
Operating voltage	DC 12-36V
Maximum power	≤0.8W
Size	80*48mm
Explosion proof	Intrinsic safe
Connection cable	RVVP3 x 1.5mm²

Module applications
Petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking, leak detection, safety and environmental control

Prod Model:	PH3/C-1000
Output:	TTL/4-20mA/RS485
Transmitter Board:	Integrated/Seperated
Wire:	Two or Three Wire
Detecting Range:	Selectable
After Sale Service:	Yes
Material:	PC

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
