| Prod Model: |
TPZ1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
0~2bar......600bar |
| Overpressure: |
1.5 F.S |
| Accuracy Class: |
0.25, 0.5, 1%F.S |
| Stability: |
0.5%F.S/Year Max. 1%F.S/Year |
| Working Temp. (Degrees Celsius): |
-40~100 |
| Temp. Compensation (Degrees Celsius): |
-10~80 |
| Transmission Type: |
2-Wire or 3-Wire≤±0.1% |
| Output Signal: |
4-20mA DC, 0.5~4.5V DC |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
| Response Time: |
10ms |
Product Description

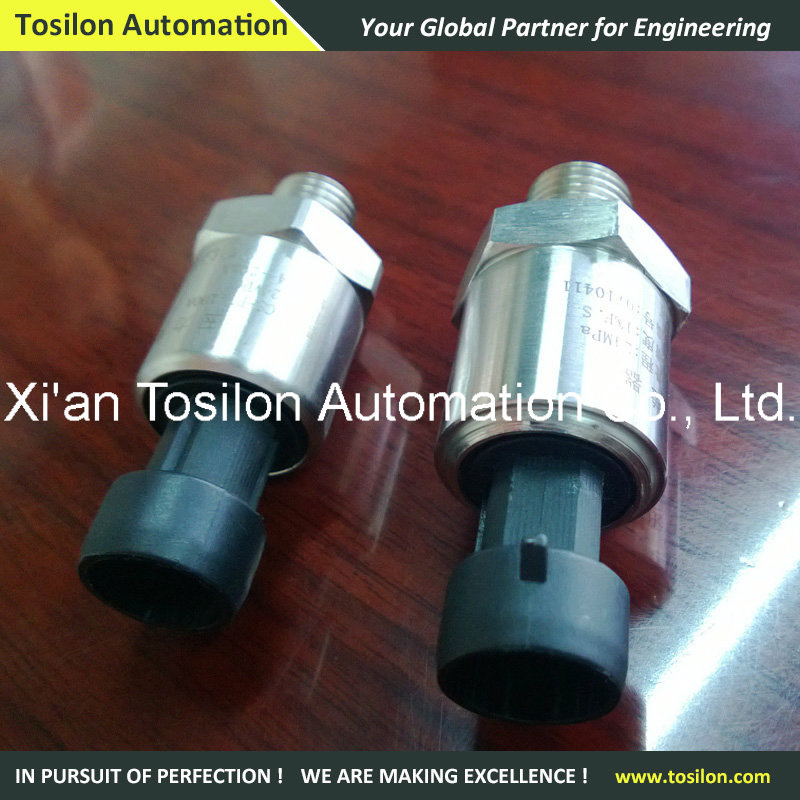

Tosilon Piezoresistive Ceramic Pressure Transducer for Air Compressor (CE, Ex Approved)
Design and Manufacturing According to CE Standard
Introduction
Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features
· Full stainless steel construction;
· Pressure Buffer Connector;
· Electric connection optional;
· Pressure connection optional;
· Ceramic core and cell imported from German
Performance Parameters (For details, please contact Tosilon)
Pressure Range Overpressure
0~2bar...600bar 1.5 F. S
Accuracy Stability
± 0.25, 0.5, 1%F. S 0.5%F. S/year Max. 1%F. S/year
Working Temp. Temp. Compensation
-40 oC~100 oC -10 oC~80 oC
Transmission Type Output
2-wire or 3-wire 4-20mA DC, 0.5~4.5V DC
Pressure Type Response Time
Gauge, Sealed Gauge, Absolute 10ms
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Item | Description |
| Pressure Range | 0~2bar......600bar |
| Overpressure | 1.5 F.S |
| Accuracy | ±0.25,0.5,1%F.S |
| Stability | 0.5%F.S/year Max. 1%F.S/year |
