Popular Used Kst Temperature Thermostat Switch

Name: Popular Used Kst Temperature Thermostat Switch
Brand: all-electronics-online.com
SKU: 726916512
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 0.25-0.35/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	431-1
Type:	for Temperature Control Switch
Rated Current:	10A/16A/20A

Product Description

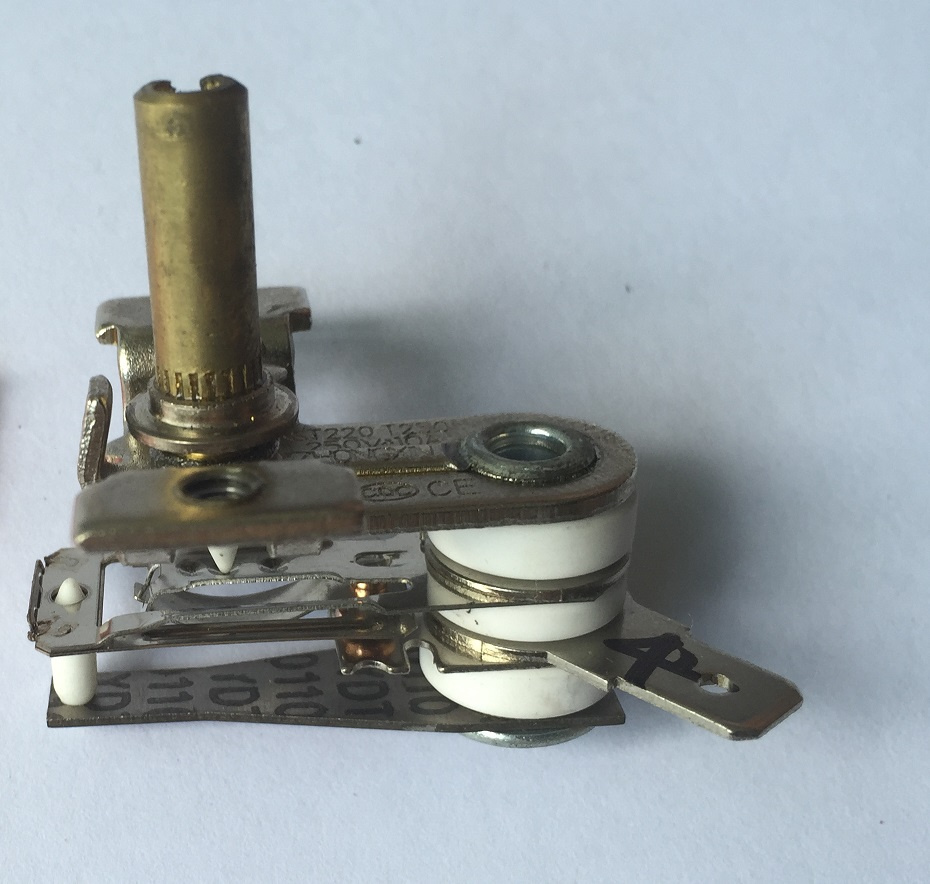

Popular Used KST Temperature Thermostat Switch

KST thermostat switch is used in home appliance for temperature control from low temperature to high.
Design of KST adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. KST turns on and off within prescribed temperature range.

Main applications of KST :
1) Oven, electrical irons, rice cookers, water boilers
2) Fan heater Barbeque grill and various household appliances.

Specifications :

Function:	Single-pole with contact opens when temperature range is reached.
Standard Rating:	250VAC 15A 120VAC 20A
Automatic Cycles For Each Automatic Action:	[VDE&CB] 100,000cycles [UL&cUL] 30,000 cycles
Maximum Temperature:	[All standards] 250C±5%
Temperature Range:	[All standards] 0-250ºC
Tolerance:	±5%

Special Features :
- KST can replace ceramic fixed thermostat when using a screw instead of its axis.
- KST can control temperature and shorten temperature range through detecting current.
- KST can be crimped a block for installation and conducting heat.
- The mounting brackets have several shapes.

Options:
- Dimension and angle of shaft are optional.
- Tripping-off temperature and property curve are optional.
- Dimension and direction of terminals are optional.
