| Prod Model: |
YJV |
| Color: |
Black |
| Model Number: |
Armoured Power Cable |
| Sectional Area: |
4X25mm |
| Packing: |
as Your Requirement |
| Application: |
Industrial |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Brand: |
Upward |
Product Description

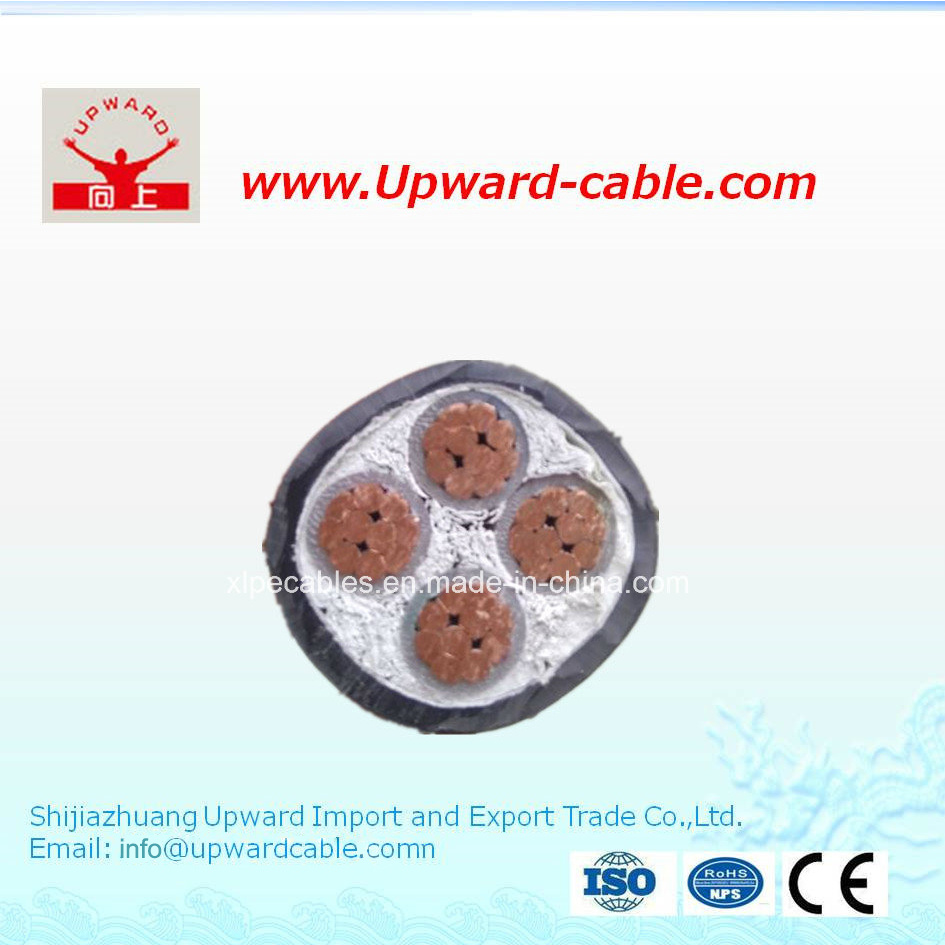

Power cable 4x25mm copper and xlpe insulation material YJV cable Wire
Parameters of low-voltage cable
Standard GB/T 12706.1-2008
Detailed description
- Conductor: Compacted or un-compacted copper or aluminum
- Insulation: Cross-linked polyethylene or polyethylene
- Filler: Filler yarn
- Packaging: Wood shaft or packaging bag, depending on your requirement
- Outer sheath: Polyethylene
- Armoring: Fine steel wire armoring or steel tape armoring
Standard sectional areas: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.
| Type | Name | Application |
YJV
YJLV | Cross-linked polyethylene-insulated, PVC-sheathed power cable
Cross-linked polyethylene-insulated, PVC-sheathed aluminum power cable | Be laid indoors or outdoors, can bear certain pulling force, but cannot bear external mechanical force. |
YJV22
YJLV22 | Cross-linked polyethylene-insulated, steel tape-armored, PVC-sheathed power cable
Cross-linked polyethylene-insulated, steel tape-armored, PVC-sheathed aluminum power cable | Be applicable to direct burying underground, and can bear certain external mechanical force but cannot bear large pulling force. |
YJV32
YJLV32 | Cross-linked polyethylene-insulated, fine steel wire-armored, PVC-sheathed power cable
Cross-linked polyethylene-insulated, fine steel wire-armored, PVC-sheathed aluminum power cable | Be laid in rainwater or in the area with high drop, and can bear external mechanical force and equivalent pulling fore. |
| Note: Add ZC to the original model of flame-retardant cable of the Company, NH to fire-resistant cable, and WDZN to low-smoke, halogen-free, flame-retardant and fire-resistant cable. |
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
