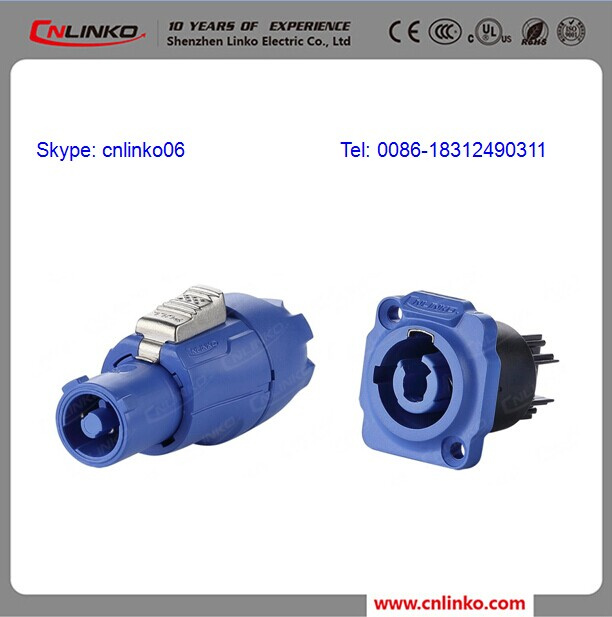

Power Connector System 230V Socket 3 Pin Powercon Connectors

Product Description:
YF series connectors,because of its unique locking bolt,which is easy to operate and has a unique blue-gray separable power input and output,so effectively distinguish device input and output ports and a power coupling,both portable terminals transform at same time and make it more flexibility.Widely used in Audio,video and power equipment.

1.Locking 3-pin connector of the device,with contacts for the middle,straight,pre-adaptation safety ground.
2.High current capacity 20A/250VAC.
3.The use of different colors(blue line)input and output(output gray)control,to avoid the possibility of inverworking.
4.Fast and easy locking system
5.Use of U.S. imports carried silver-plated beryllium copper double double entry,quality asurance,increasing the stability of the current and effective temperature control.
6. IP44 and IP65-way choice.
7.20A rms rated current
8.Unique copper core needle anti prolapse design.

YF-24-C03PE-03-001,YF-24-J03SX-03-001
Specifications:
Connecting mode:	latching lock
Protection level:	IP44/IP67
Cable specification:	2.5m2 ~4mm2 /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.0x3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder & lock screw
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Oversea's department
TEL:0086-0755-86960323 FAX:0086-0755-86960305
Cell phone :0086-18312490311

Contact percon:Ms Jody
Website:http://www.cnlinko.com

Prod Model:	YF-24-C03PE-03-001, YF-24-J03SX-03-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	2.5m² ~4mm² /14~12AWG
Dimater Od:	8mm-12mm
Waterproof Level:	IP44 or IP67
Rated Current:	20A
Voltage:	500V
Durability:	≥500 Mating&Unmating Cycles
Temperature Rating:	-40°c~80°c
Method Of Connecting Cable:	Solder & Lock Screw
Prevent The Combustion Level:	UL94-V0
Waterproof Circle:	Silica Gel
