Power Fuse for Protection Oil-Immersed Tyoe Transformev

Name: Power Fuse for Protection Oil-Immersed Tyoe Transformev
Brand: all-electronics-online.com
SKU: 808651635
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	US $ 25-40/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

General

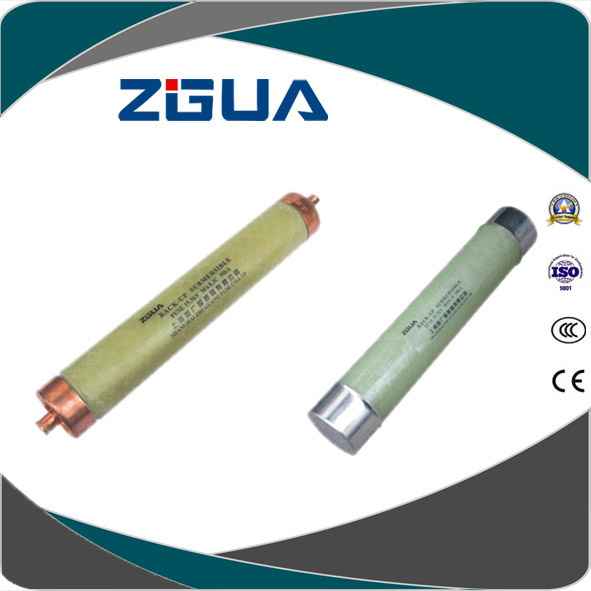

ZGR3(XRNT5)-15.5H.V.current-limiting back-up fuse for short-circuit protection of oil-immersed transformer(here-under fuse) is availab-le ailable for H.V. indoor electric system,with rated voltage 1 5.5Kv,rated cu rrent up to 175A, 50Hz a.c..It is used for protecting from short-circuit for power transformer.It can offer protection of all-round together in series with ZGR4(PRNTl3)-15.5 H.V.fuse for overload rotection of oiI-immersed transformer

Standard
Accord with GB15166.2 Alternating-current high-voltage fuses Current-limiting fuse

Prod Model:	ZGR3
Test Report:	Yes
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Zhejiang Zhiguang Fuse Co., Ltd. A modern company specialized in high and low voltage fuseptoduclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100 types of series "ZGUA"producls covering more than1000 specificalions, all the productscomply with international IEC standard and national GB13539and GB15166 standard and have passed.

We specialized in high and low voltage fuse produclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100types of series "ZGUA"producls covering more than1000 specificalions, all the products comply with international IEC standard and national GB13539and GB15166 standard and have passed.

The market is the base for the entrprise's survival. After years of market test; The products notonly satisfy the customers at home but also have been exported to above 30 countries and areas, ithas won the reputation all of the world with its advanced technology, perfect functiion, reliable quality and high quality service.

In order to realize sustainable development of enterprise in the competitive market, the companyalwavs intends to offer better products, more advanced technology and betler service to the customer with the tenet of "Quality No. 1, Managing with credibilily"and create a more magnificent future withmind and wisdom.
