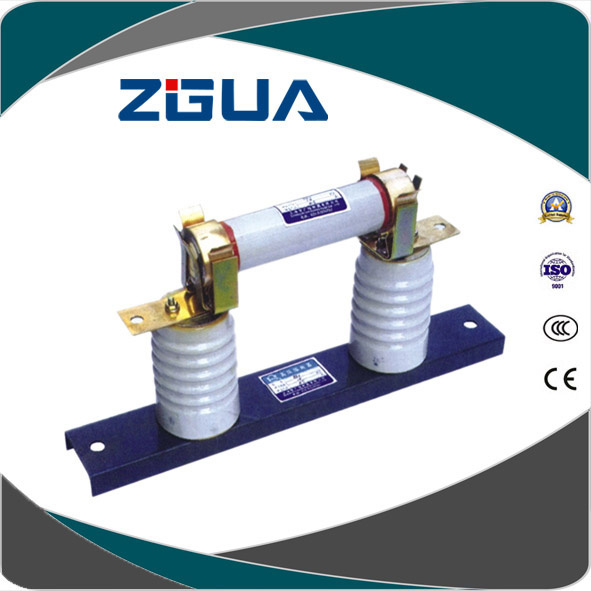

Power Fuse

Name: Power Fuse
Brand: all-electronics-online.com
SKU: 838518145
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 6.1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

The product is in overload or short-circuit protection for elctric transformer. The current limiting means that the fuse will cut off the circuit before the shortcircuit current reaches the peak value.

Fusing performance
Current which passes the fuse when being 1.3 times of its specified electric current, Do not fusing for an hour; When the current through the fuse is 2 times of its specined electric current, fusing in an hour; Refer to its fusing feature curve in chart 1 when select the fuse.

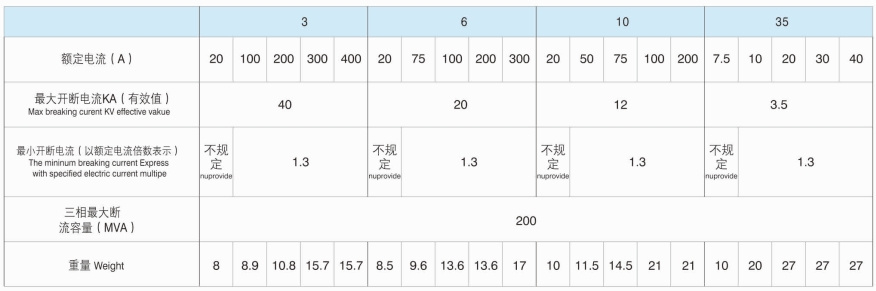

Technique data

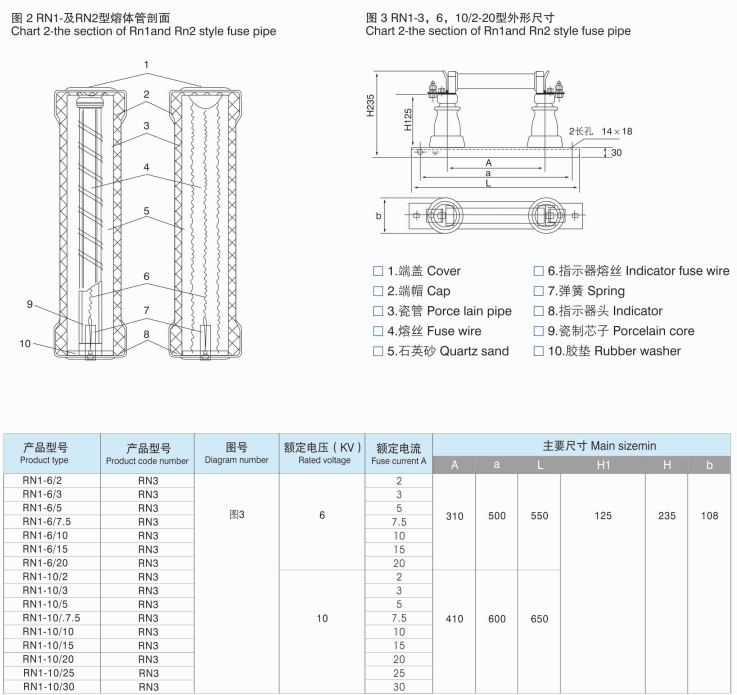

Structure of fuse link
The fuse pipe is the main part of fuse,it is made by installing the fuse wire in the porcelain pipe,filling the quartz sand in the porcelain pipe and sealing to-ends of pipe.For the fuse pipe with rated current below 7.5Aand 35V rated voltage,its fuse wire is rolled on the special por-
celain core,referening to chart 2.a.for the fuse pipe with rated current above 7.5A,its fuse wire is hang in the porcelain pipe,referening to the chart.

Installation Dimensios

Prod Model:	RN
Best Market:	Russia
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	IEC
