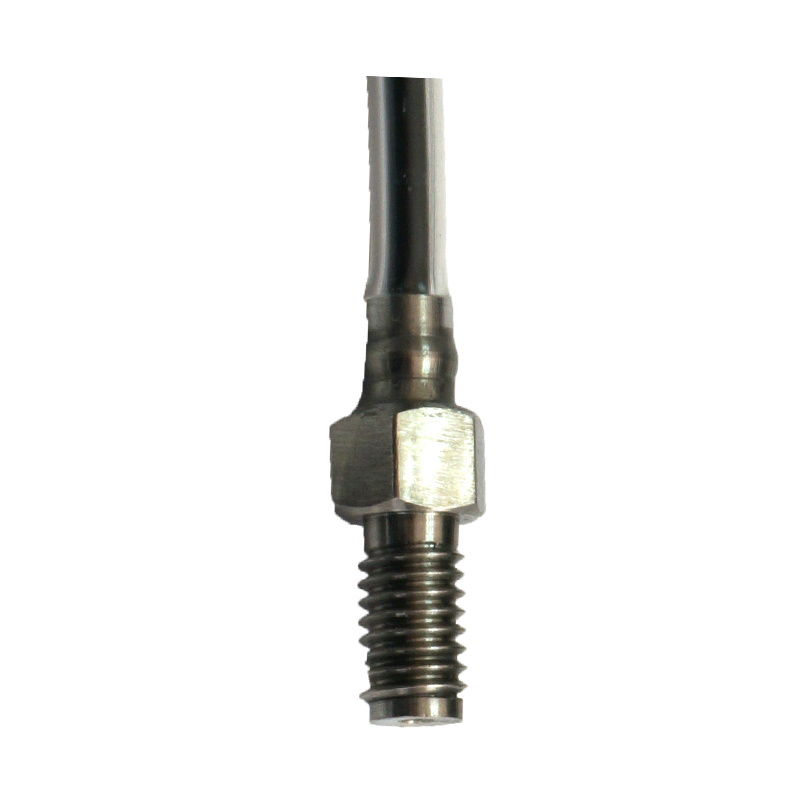

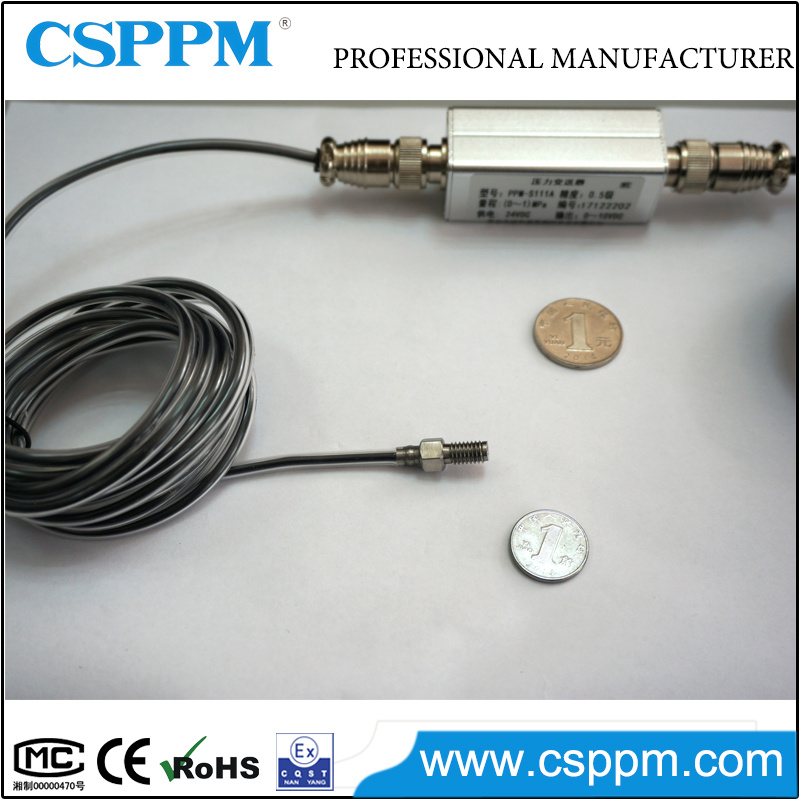

Ppm-S111A Dynamic Pressure Sensor for Hydrodynamics

Name: Ppm-S111A Dynamic Pressure Sensor for Hydrodynamics
Brand: all-electronics-online.com
SKU: 835387395
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description
The PPM-S111A pressure sensor is designed for hydrodynamics experiment which require small size sensor. It features high response frequency, stability, reliability.The precision of the micro pressure sensor is higher than the piezoelectric dynamic pressure sensor.

Application
engine inlets, chemical explosion test, tunnel, material, hydrodynamics, acoustics, civil engineering, rock-soil mechanics, hydraulic power mechanical test.

Specification

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S),Absolute pressure(A)
Measuring range	-100kPa~0~10kPa~1MPa~10MPa
Power supply	0.5-2.0mA,5-12VDC
Output signal	100mV(Typical value)
Transmitter output	Power supply:24VDC(±15VDC), Output signal:0-5VDC, 4-20mA
Nonlinearity	0.2% FS, 0.5% FS
Repeatability	0.05%FS
Accuracy	±0.2%FS, ±0.5%FS
Long-term stability	0.2%FS/year
Temperature	-40~85ºC
Response frequency	500kHz
Input impedance	5kΩ
Insulation resistance	>500 MΩ/100VDC
Overpressure	200%FS
Damage pressure	500%FS
Process connection	M5,M6 or others on request
Relative humidity	0~95% RH
Ingress protection	IP65
Electric connection	Cable outlet, connector

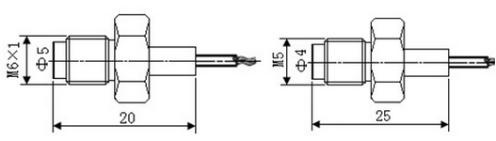

Dimensions in mm

Prod Model:	PPM-S111A
Certification:	CMC
