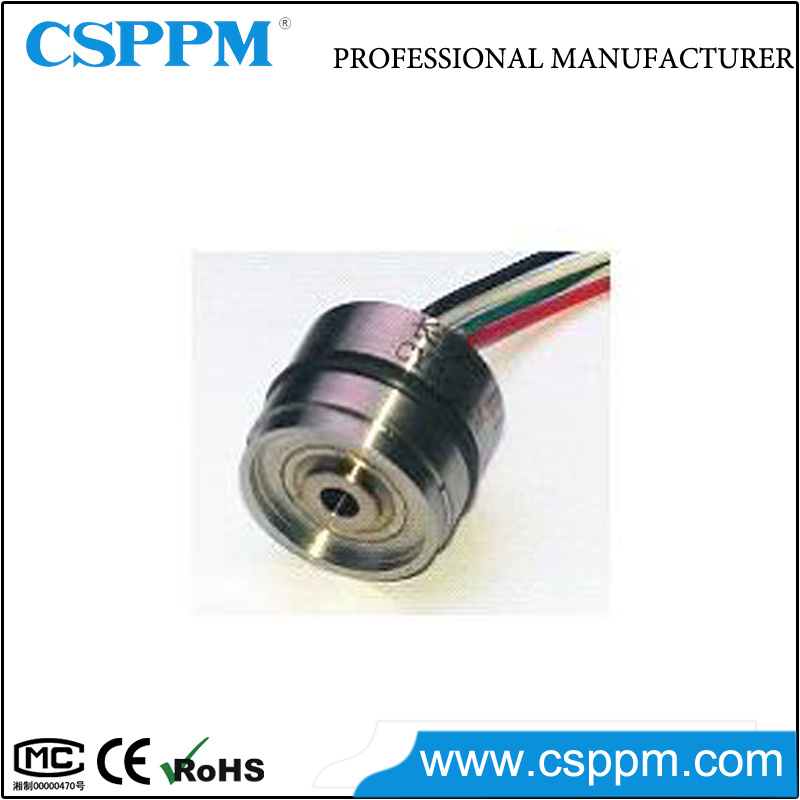

PPM-S319A Pressure Sensor for high temperature application
Description
The model PPM-S319A pressure sensor adopts thin-film sputtering technology. Each sensor was strictly temperature compensated for both zero and span. The PPM-S319A is available with measuring ranges up to 120Mpa and is suitable for oil industrial application. All wetted parts are manufactured from stainless steel and are fully welded. It is easy to install and configure and customized dimensions are accepted. Features
1. Small in size
2. High accuracy up to 0.1%FS
3. High stability
4. Resistant to high and low temperature
5. strong anti-overload abilityApplications
1. Oil fields
2. Aerospace industry
3. Engine testing
4. Internal combustion engine, diesel engine
5. Applications in harsh areasSpecification
| Measuring medium | Gas, liquid, steam |
| Pressure type | Gauge pressure(G), Sealed pressure(S),
Absolute pressure(A) |
| Pressure range | 0~1MPa…10MPa…30MPa…40MPa…60MPa…70MPa…100MPa…120MPa |
| Power supply | 5VDC(3-12VDC) |
| Output signal | 0-10mV, 0-25mV(2mV/V, 5mV/V) |
| Nonlinearity | ≤0.02% FS, ≤0.04% FS, ≤0.05% FS |
| Hysteresis | ≤0.02% FS, ≤0.04% FS, ≤0.05% FS |
| Non-repeatability | ≤0.1% FS |
| Accuracy | 0.1%FS, 0.2%FS |
| Long-term stability | 0.1%FS/year |
| Medium temp | -40~125ºC/150ºC/175ºC/200ºC/250ºC |
| Operation temp | -40~+85ºC |
| Zero temp. drift | ≤0.005%FS/ºC, ≤0.01%FS/ºC |
| FS temp. drift | ≤0.008%FS/ºC, ≤0.015%FS/ºC |
| Response time | ≤1ms(10%~90%) |
| output impedance | 1500±50Ω,3300±50Ω,5500±1500Ω |
| Insulation resistance | ≥500 MΩ/100V |
| Overpressure | 200%FS (2 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shcok resistance | 50g, 20ms |
| Process connections | M10×1, or other process connections on request |
| Sealing method | Double sealing rings, sealing cone, end face sealing |
| Materials | Wetted parts: 17-4PH, 15-5PH
Non-wettedparts: stainless steel 316, 1Cr18Ni9Ti |
| Ingress protection | IP65 |
| Electrical connections | Red-Power+, Black-Power-, Green-Output+, White-Output- |

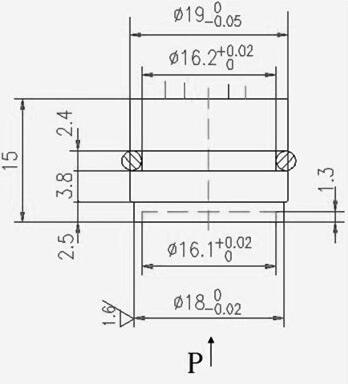

Dimensions in mm
Order information
| Model PPM-S316A Pressure Transmitter |
| | Code | Pressure type |
| | G | Gauge pressure |
| | S | Sealed pressure |
| | A | Absolute pressure |
| | Code | Pressure ranges |
| | M | 0~ X MPa |
| | K | 0~ X KPa |
| | P | 0~ X Pa |
| | Code | Accuracy |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Output signal |
| | V0 | mV |
| | Code | Operation temperature |
| | T1 | -10~70ºC |
| | T2 | -25~85ºC |
| | T3 | -30~125ºC |
| | T4 | -45~150ºC |
| | T5 | -10~175ºC |
| | T0 | Others |
| | Code | Power supply |
| | D1 | 5VDC |
| | D2 | 10VDC |
| | D0 | Other |
| | Code | Process connection |
| | M1 | M20x1.5 |
| | M2 | M14 x1.5 |
| | M3 | M10x1 |
| | G1 | G1/4 |
| | G2 | G1/2 |
| | N1 | 1/4NPT |
| | N2 | 1/2NPT |
| | F0 | Other |
| | Code | Electrical connectiong |
| | W1 | Cable outlet |
| | Code | Other |
| | P1 | Commom |
| | P2 | Non-cavity diaphragm |
| |
