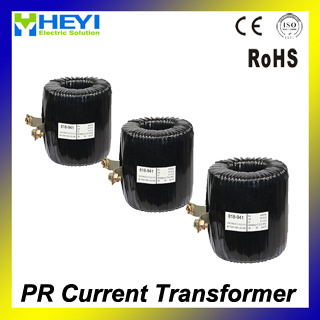

Pr Current Transformer for Current Measuring and Protection

Name: Pr Current Transformer for Current Measuring and Protection
Brand: all-electronics-online.com
SKU: 750262815
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 0.5-10.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DESCRIPTION
PR Series Protective Current Transformer can work under such condition when system currentis much times than rated working current, also can work under exceeding measuring current transformer. When current transformer is used to power protective relay, it will keeps its electricalfeatures on many times working current, this ratio wiil be 5, 1 0, 20 0r even higher.

Protective grade: 5P10; 10P5; 10P10

SPECIFICATIONS

Rated Frequency()
Rated Test Voltage()
Rated short-time thermal current(lth)()
Rated dynamic curren t (ldyn)()
Rated voltaae (Um)()
Contin uou s -ove rload ()
Operating temperature()
Housing self-extinguishing class()
Safety factor()
Secondary current()

50/60Hz
3kv AC.(1min)
6oln
2.5lth
0.72Kv AC.
1.2ln
-10ºC~50ºC
VO
FS5
5A/1A

CI: 10P5 15VA

Spec.	60/5A	100/5A	150/5A	200/5A	250/5A	300/5A	400/5A	500/5A	600/5A
OD	100	100	100	100	96	96	96	100	100
ID	34	34	34	34	34	34	34	60	65
HT	148	98	68	58	68	68	68	48	58

CI: 5P10 15VA

Spec.	100 /5A	150 /5A	200 /5A	250 /5A	300 /5A	400 /5A	500 /5A	600 /5A	800 /5A	1000 /5A	1200 /5A	1600 /5A	2000 /5A	2500 /5A	3000 /5A	3500 /5A	4000 /5A	5000 /5A
OD	100	100	100	96	96	96	102	110	120	120	123	123	123	178	178	182	182	184
ID	34	34	34	45	45	45	62	68	62	85	82	82	125	125	125	120	120	118
HT	180	130	110	110	110	90	110	88	22	68	60	68	40	40	40	35	35	38

CI: 10P10

Spec.	100 /5A	150 /5A	200 /5A	300 /5A	400 /5A	500 /5A	600 /5A	800 /5A	1000 /5A	1200 /5A	1600 /5A	2000 /5A	2500 /5A	3000 /5A
OD	100	100	100	96	96	102	110	120	120	123	123	178	178	178
ID	34	34	34	45	60	60	68	62	85	82	82	125	125	125
HT	168	108	88	108	108	88	88	22	58	60	50	38	38	38

Prod Model:	PR series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Approve:	CE
Color:	Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
