Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
3. Examine the water automatically
4. After cutting-off, start automatically with electric
5. Protect the pump from damage caused by overheat
6. Forced start
State LED:
1. Green LED lights up: The unit is off
2. Green LED and red LED flash alternately (in 1Hz): Pump in operation
3. Green LED and red LED flash alternately (Green LED 2.5S, Red LED 0.5S, flash alternately 3S/time): Pump stops, waiting to start.
4. Red LED lights up: System failure: After troubleshooting, restart the unit after the power is turned off for less than 5S can solve the state. (Anytime, press ON/OFF button lasts 3S, red LED lights up, the unit is forced protection).
Description of forced start
When pump stops, press ON/OFF button, green LED and red LED flash alternately (1Hz): If there was water in the pipe, the pump into constant pressure after 60S delay; If the pipe was in the absence of the water, pump into waiting restarted after 80S delay.
Description for the exam process:
While the pump is in the absence of the water, the unit will protect the pump from damage caused by dry-running after 30 seconds, the green LED and red LED will flash alternately in every 3 seconds; If the pipe is in the absence of the water continually, first step, the unit will start to exam the water for 4 times in every 15 mins, second step, it will last for 12 times in every 1 hour; Third step, it will last for 4 times in every 3 hours; And 4 times in every 6 hours; Finally, it will circling to exam in every 24 hours. The state of water shortage will not be solved until there is water in the pipe.
Technical parameters:
1. Rated voltage: 110V/230V
2. Max. Current: 12(6)A
3. Frequency: 60Hz/50Hz
4. Max. Power: 1.1KW/2.2KW
5. Joint Screw: G1"
6. Starting pressure: 1.5bar/2.2bar

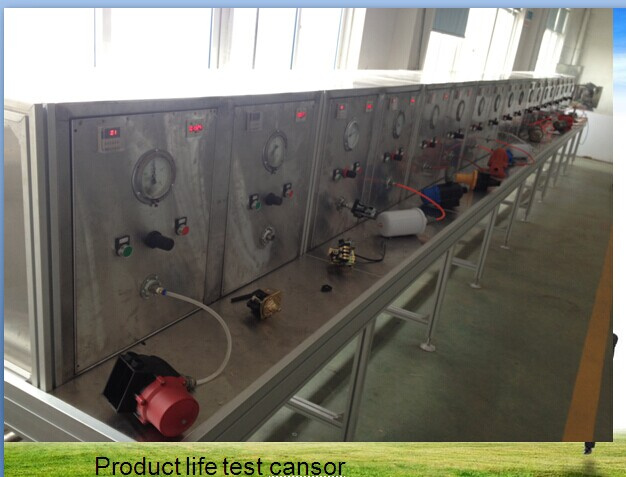

Automatic test photos:
ZHEJIANG YAODA INTELLIGENT SCI-TECH Co., Ltd is a national high-tech enterprise engaged in R&D, design, manufacturer, sales and service of all series pump controller, tanks and progressive die areas. YAODA is the first listed company in Chinese pressure controller industry.
We have more than 200 staffs, 50 of them are the core technical staffs. It has advanced production equipments, high-quality management personnel, professional production teams. We created Zhejiang provincial R&D center, with various professional test equipments. The comprehensive development capacity reaches the highest level in the same field. We have passed the certificates: ISO9001: 2008, TUV, CE, PED, RoHS, EU and CCC.
We sell the products to over 100 countries and regions, such as Europe, Southeast Asia, Middle-East, Australia, South America and Africa countries, etc. Our main products are automatic pressure controller, frequency inverter, pressure switch, float switch, pressure tank, expansion tank for heating system, progressive die, which play a crucial role in water pump system, air compressor system, heating system, mould industry, etc. We supply the products to LEO pumps, SHIMGE pumps, SANYU pumps, JUNHE pumps, LX pumps, TAIFU pumps, etc.
With the several subsidiary companies- TAIZHOU MEITAI IMPORT & EXPORT Co., Ltd, TAIZHOU TASLEEN PRECISE DIE Co., Ltd, YAODA possesses a solid foundation to be a world-class pump auto-controller specialist and system solution provider.
With more than 20 years' professional experience and enterprise spirit "Quality, Technology, Profession, Service", we will provide personalize service to make the best water control system for your efficient life.
