| Prod Model: |
HTW-31-H17 |
| Power Supply: |
100~240VAC, 50/60Hz. 24VAC Optional |
| Communication: |
RTU Modbus Via RS485 |
| Extension Function: |
Window Card/Key-Card/IR Optional |
| Installation: |
Flush Mounted in EU Standard/86/60 Junction Box |
| Temperature Display Unit: |
.C/F |
| Changeover: |
Heating/Cooling/Cooling Only/Ventilation |
| Output Type: |
on/off or 0~10V or Floating |
Product Description

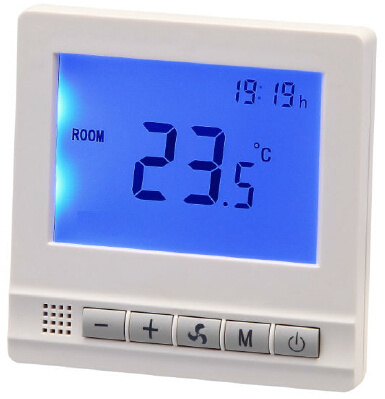

GeneralProgrammable Digital House Switch Thermostat(HTW-31-H17), applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high-precision sensor.
It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/off the motorized zone valve, so as to keep room in a certain temperature.Features>>Output: On/off, 0-10V, FL optional
>>Backlight: Blue
>>Usage: FCU/HVAC System
>>Sensor: Internal/External optional
>>Programmability: 7-Day Weekly Programmable
>>Network: Modbus, RS-485 optional
>>Mounting: EU standard Junction box / 86*86MM Mounting
>>Other: Temp. offset, Key-card, IR optional
⊙Heating/Cooling Mode Remote Selectable ⊙Adjustable MAN mode and PRG. Mode ⊙Water Heating System(Max.3A) with Refreshing Cooling⊙Weekly Programmable (5+1+1) in Heating mode⊙Condensation Detector On/off Switch⊙EU Junction Box/86*86mm MountingApplications

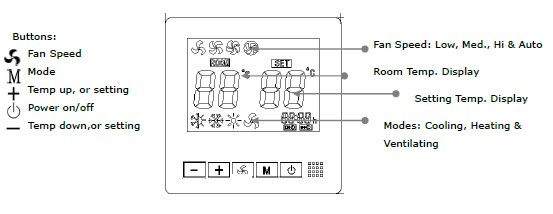

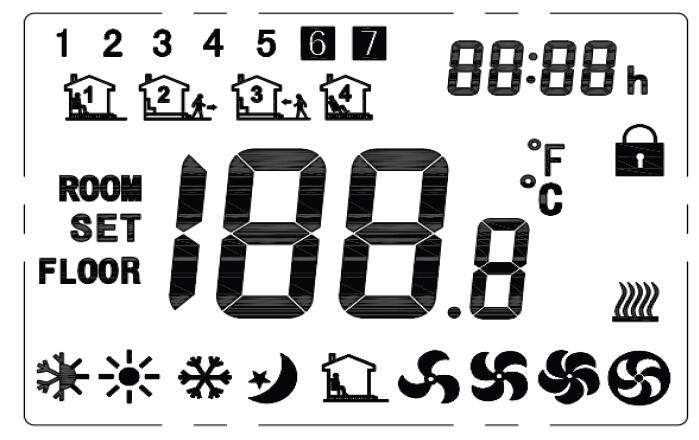

Display
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
