| Prod Model: |
DIN1X2 ISO Z-W-P-O |
| Input-Ouput: |
1-Channel |
| Installation Type: |
Rail-Mounting |
| Material: |
ABS |
Product Description

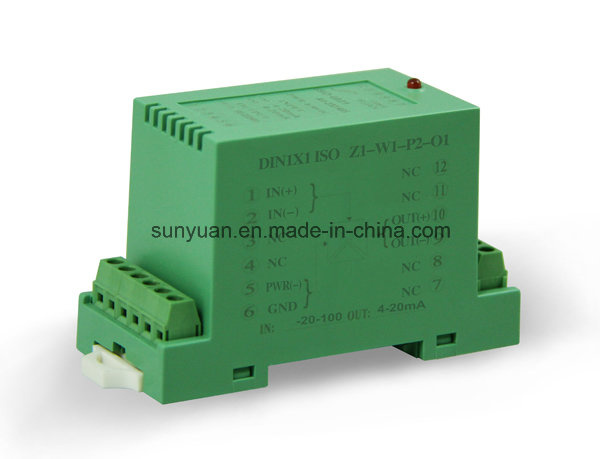

RTD Thermal Resistanc Signal to Current/Voltage Signal Isolation Transmitter/Converter
Features:
Three-wire, four-wire or two-wire PT100 thermal resistance signal input
Accuracy, Linearization error grade: 0.2
Linearization disposal and long line compensate circuit
Isolation Voltage: 3000VDC input/power/output
Power: 5V\12V\15V or 24VDC
International standard signal output: 4-20mA/0-5V/0-10V etc.
Small size, low cost
Standard, UL94V-0 anti-fire
Industrial temperature range: - 45 ~ + 85 centigrade
Application:
PLC/DCS systemic temperature signal isolation, acquisition.
Industrial high accuracy temperature measurement
Thermal resistance signa isolation and temperature control
Ground-loop elimination
Temperature sensor signal converter to standard signal
Oil temperature measurement and alarm
No distortion in long distance signal transmission
Electric supervision, medical application and safe isolated bar.
Description:
ISO W-Z Series is a mixed integrate circuit that thermal resistance signal as temperature high/low Isolation converter to linearity standard signal to temperature. It integrated a set of isolated DC/DC Converters, Linearization disposal and long line compensate circuit, can bring two group of each other Isolated power to input port for magnifying circuit, modulating circuit powered and output port Demodulation. They can meet industrial wide temperature, humidity, shaky poor operation condition.
RTD PT100 Cu100 to 4-20mA/0-5V Signal Transmitter Model Selection:
| Input | Temperature Range | Output | Power supply |
| Pt100 | -20--+100C | 4-20mA | 24V |
| Pt10 | 0-100C | 0-20mA | 12V |
| Cu100 | 0-150C | 0-5V | 5V |
| Cu50 | 0-200C | 0-10V | 15V |
