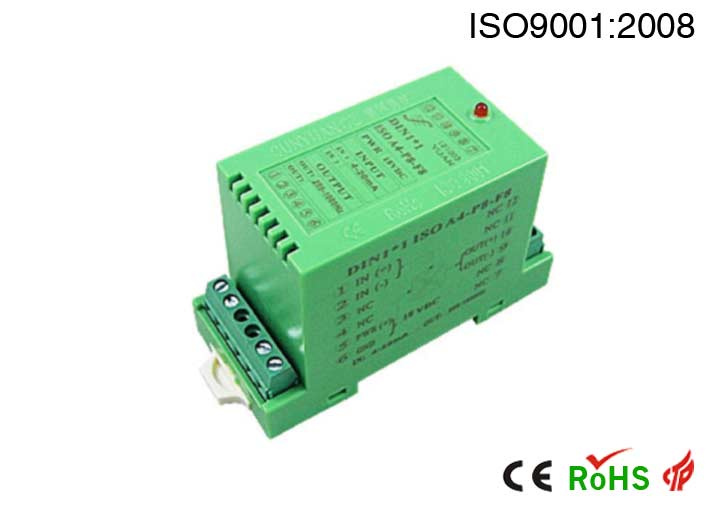

RTD Thermal Resistanc Signal to Current/Voltage Signal Isolation Transmitter/Converter
Main Features:Three-wire,four-wire or two-wire PT100/PT1000 thermal resistance signal input
Accuracy, Linearization error grade:0.2
Linearization disposal and long line compensate circuit
Isolation Voltage: 3000VDC input/power/output
Power:5V/12V/15V/24VDC or 110VAC/220VAC
International standard signal output:4-20mA/0-5V/0-10V etc.
Small size,low cost

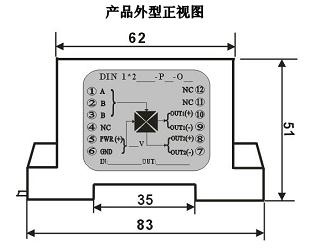

Standard DIN Rail-mounted :DIN 1x1
Industrial temperature range: - 45 ~ + 85 ºC
Model Selection
DIN ISO Z - W - P - O
Z:RTD Type
Z1: Pt100 Z2: Pt10
Z3: Cu100 Z4: Cu50
W:Input Temperature Range
W1: -20-100ºC
W2: 0-100ºC
W3: 0-150ºC
W4: 0-200ºC
W5: 0-400ºC
W8: User-defined
P:Power Supply
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V P8: User-defined
O:Output Signal
O1: 4-20mA O2: 0-20mA O4: 0-5V O5: 0-10V
O6: 1-5V O8: User-defined
E.g.:Signal Input: Pt100,temperature range:0~100ºC; signal output:4-20mA; power:24V
Part No.: DIN1x1 ISO Z1-W1-P1-O1
