Pull Rod Type Electronic Ruler for Injection Molding Machine Equipment

Name: Pull Rod Type Electronic Ruler for Injection Molding Machine Equipment
Brand: all-electronics-online.com
SKU: 820197325
Availability: InStock
Rating: 4.6 (74 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTC-75
Working Stroke:	75-1250mm
Repeatability:	0.01mm
Working Speed:	10m/S
Max Voltage:	42V
Feature:	High Pricision& Resolution
Usage:	Bar Type Displacement Sensor
Material:	Alumiune Alloy

Product Description

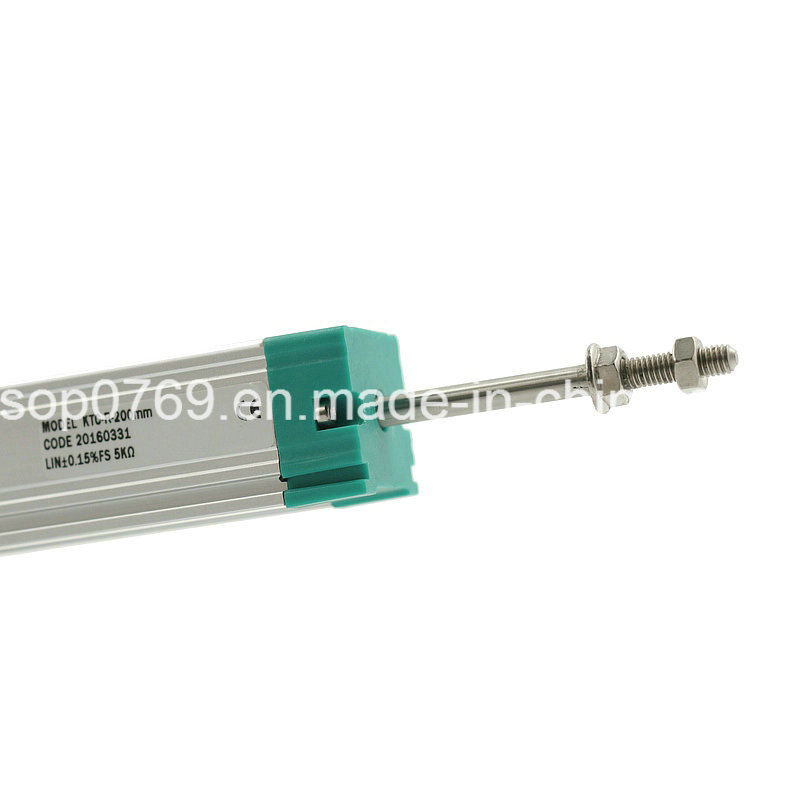

Pull rod Type Electronic Ruler for Injection Molding Machine Equipment

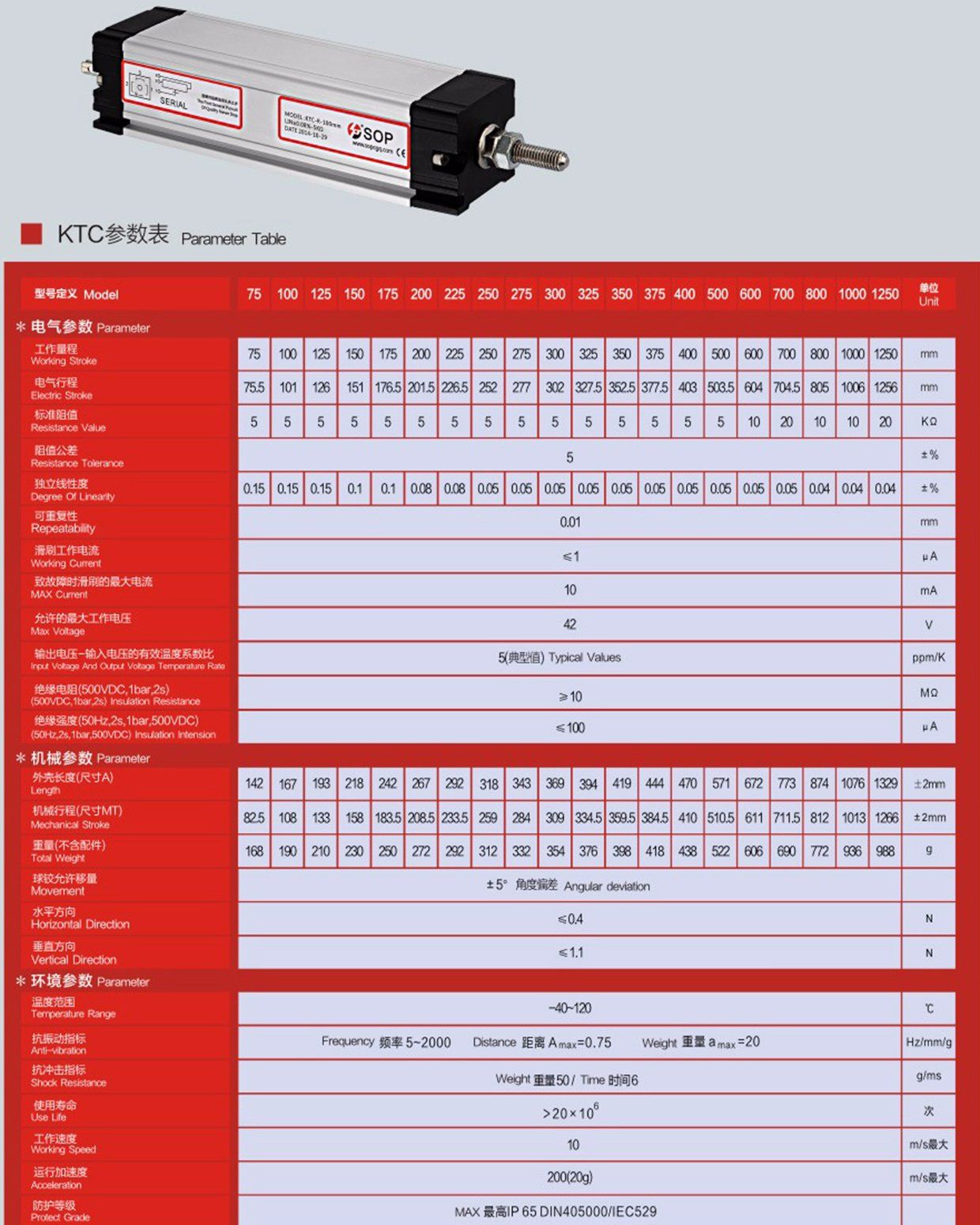

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

Dispalcement Sensor Feature:

Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.

* Compact structure and light weight.

* Straight line measurement, easy to install.

* Anti-dust, anti-vibration, durable.

* Groove for cable, each circle trip is the same, high repetition accuracy.

* Multi-strand soft stainless steel rope, corrosion-resistant type.

* Economic and practical.
KTC is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine

Package:

Packing with standard carton
Are your company a Professional manufacturer?
Yes, we are a factory with 13 years' custom production.
What's your company warranty policy?
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
