| Prod Model: |
FPV-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Fpv-63 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Poles Number: |
4 |
| Certification: |
CCC |
| Installation: |
DIN Rail |
Product Description

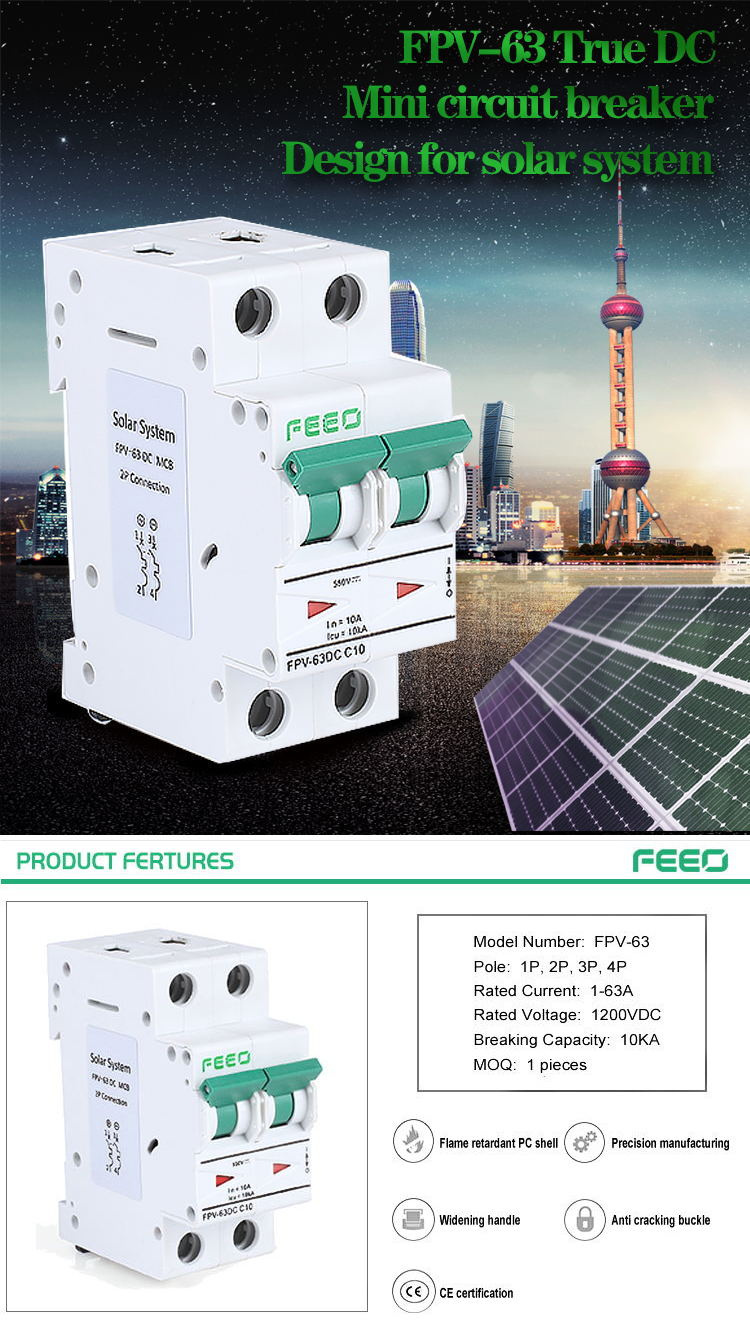

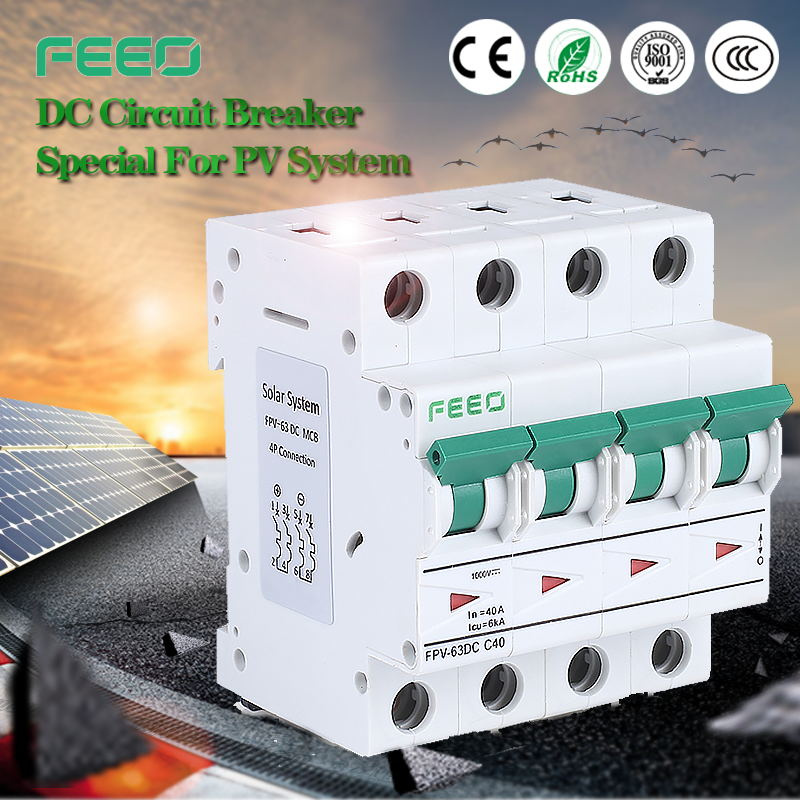

PV System 4p 1000V DIN Rail DC Breaker Solar MCB Product Description
DC Breaker Solar MCB Application:

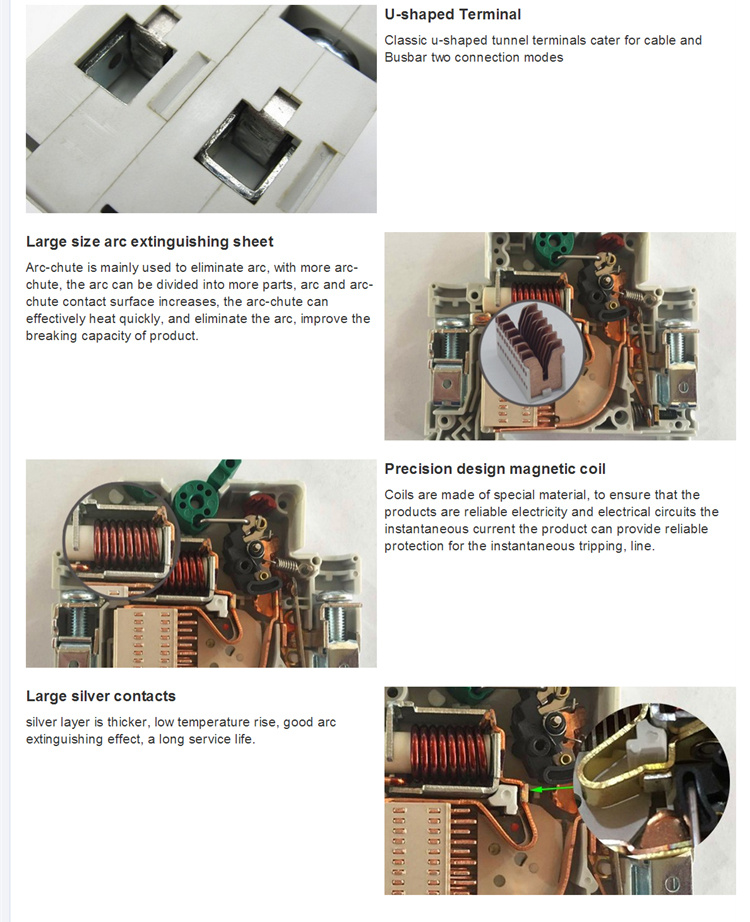

FPV-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.DC Breaker Solar MCB Features:1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomicDC Breaker Solar MCB Parameters:| Item | DC Breaker Solar MCB |
| Code | FPV-63 |
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250VDC | 550VDC | 750VDC | 1000VDC |
| Current | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A |
| Standard | IEC/EN60947 |
| Breaking Capacity | 6KA,10KA |
| Characteristic Curve | B,C,D |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Mechanical life | More than 2000times |
| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |

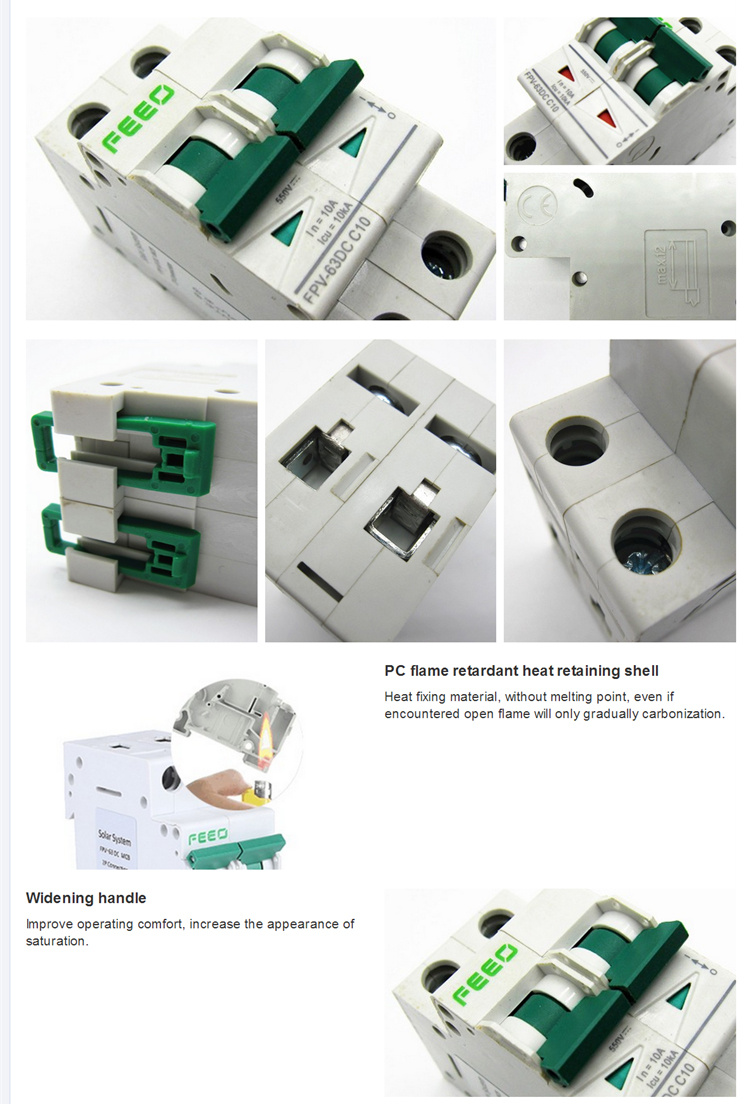

Detailed Images
Packaging & Shipping

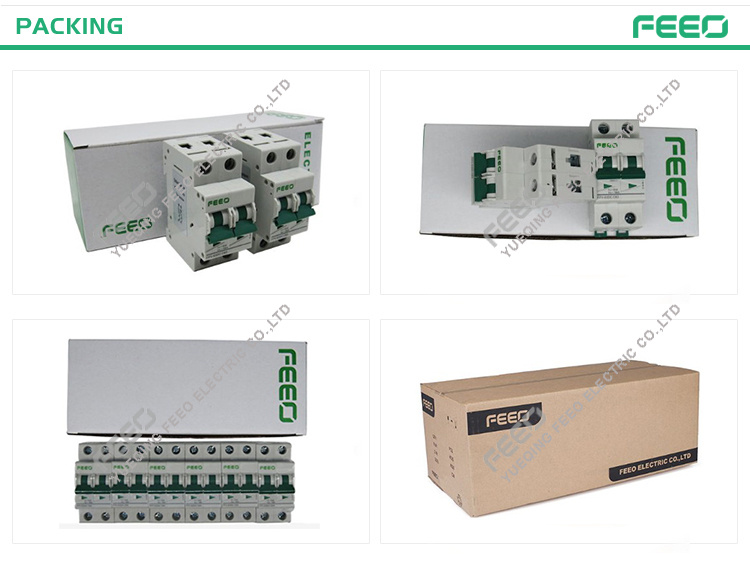

DC Breaker Solar MCB Package:Standard export carton packing:
1P DC MCB 120pcs/ctn
2P DC MCB 60pcs/ctn
3P DC MCB 40pcs/ctn
4P DC MCB 30pcs/ctn
Carton Size 47*23.5*18CM3
G.W./N.W.: 15/14.5kgs
DC Breaker Solar MCB Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC Breaker Solar MCB Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.

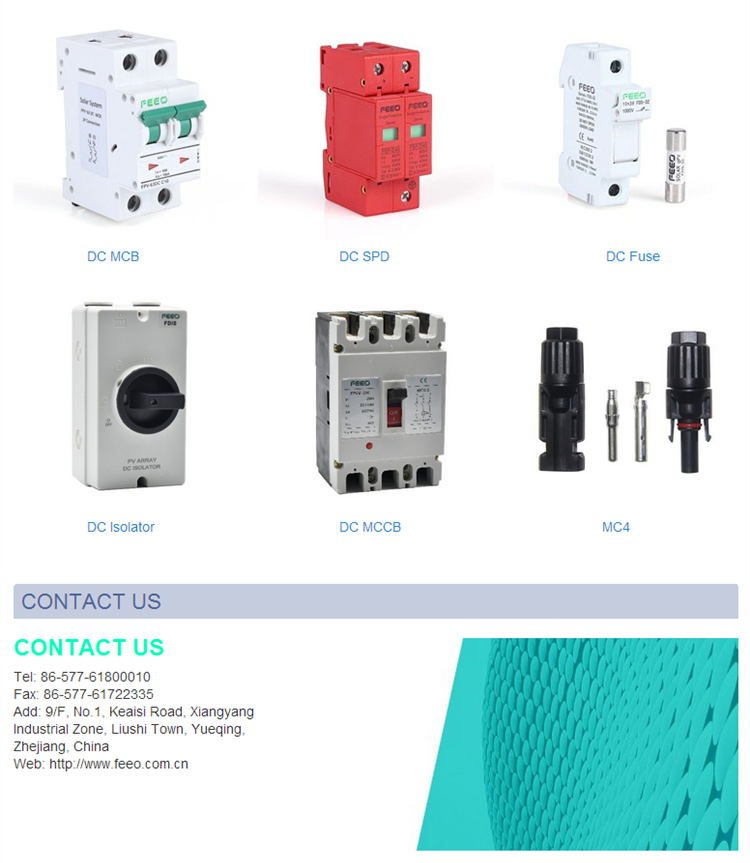

is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!
Q:Can I get a sample before the order because I really don't how is your DC MCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your DC MCB?
A:We offer two year warranty for our customer.
Hot Product
Our company is a manufacturer of Solar Electrical Products/DC Circuit Breaker/DC SPD/DC FUSE/Waterproof Box with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.

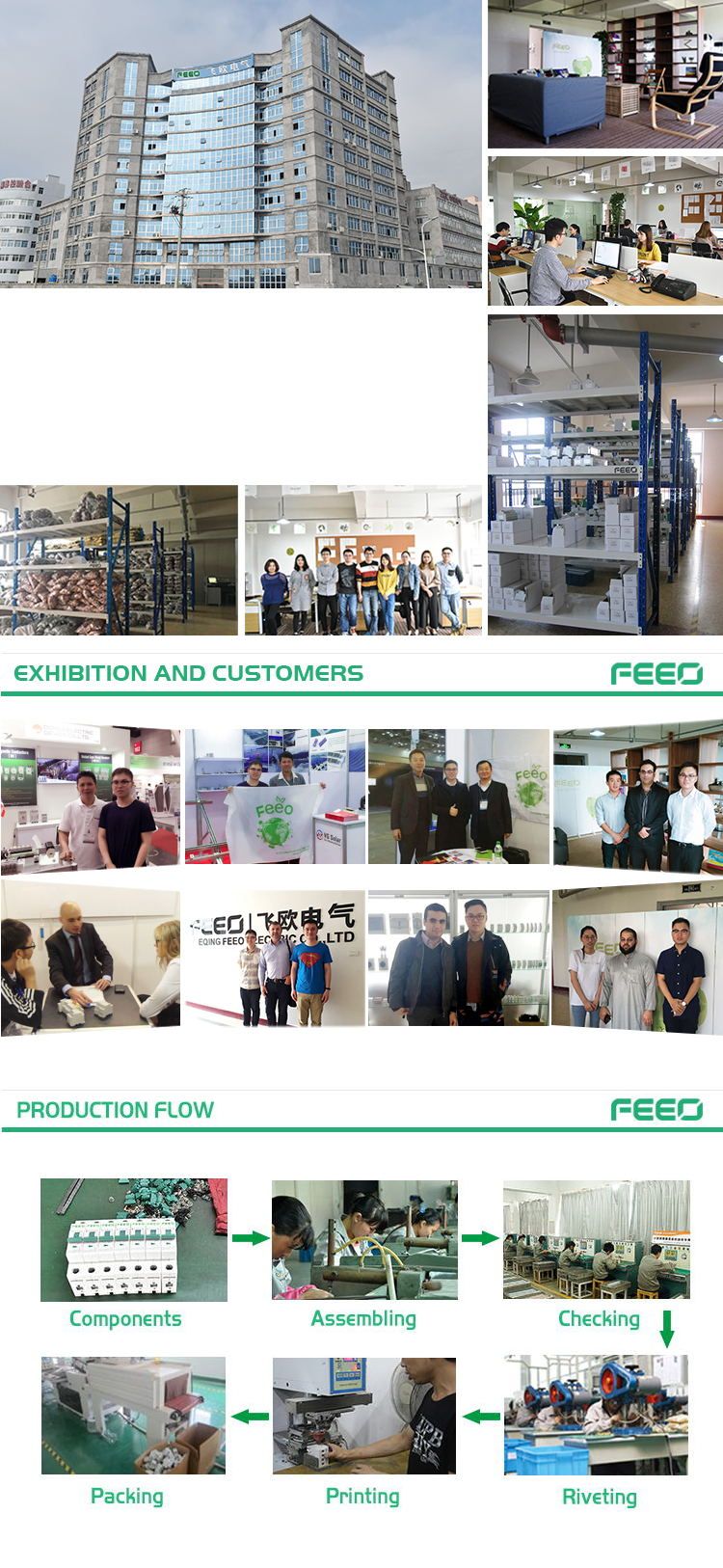

Established in 2000, YUEQING FEEO ELECTRIC Co., Ltd. Specializes in manufacturing Solar PV product. Located in WENZHOU we enjoy convenient access to major transportation networks. Our company covers an area of 2000m² And has around 70 staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
