| Prod Model: |
RG6/UQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Package Length: |
100m,200m, 305m, 500m... |
| Inner Conductor: |
CCS, Cu etc. |
| Conductor Od: |
1.02mm |
| Insulation: |
4.57mm |
| Shiled: |
Aluminum Foil |
| Braiding Material: |
Al, CCA, Cu, Tcu etc. |
| Braiding Coverage: |
30%, 45%, 60%, 80%, 90% etc. |
| Jakcet: |
6.9mm PVC |
| Jakcet Color: |
White, Black, Yellow etc. |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Coaxial Cable |
Product Description

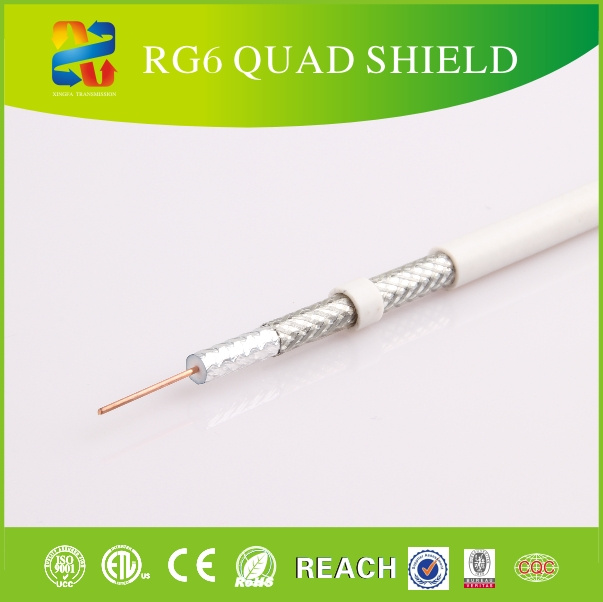

Hangzhou Xingfa Transmission Equipment Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.Quad Shield Coaxial Cable RG6 for CATV/CCTV Equipments1.Product Description1) Construction| Center Conductor | 1.02+0.01mm Solid Copper/Copper Clad Steel |
| Dielectric | 4.57mm Foam PE/Solid PE |
| Shealth 1st | Bonded/Unbonded Aluminum Foil or Al/Pet/Al |
| Shealth 2nd | Braid, Al ire 0.12/0.15mm/0.16mm |
| Braiding | 40%-95% coverage+Al foil+Al wire 60% coverage |
| Shealth 3rd | Al/Pet/Al or Al/Pet |
| Shealth 4th | Braid, Al wire 0.12/0.15/0.16mm |
| Coverage | 60% |
| Jacket | 7.54mm PVC (UL/LSZH/FR) |
| Jelly/APD | Per Customers Special Requirement |
2) Characteristics| Sparker Test: | 4000VAC |
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
3) Attenuation| Attenuation | [@68o F. (20o C.)] |
| Impedance | 75±3 Ohm |
| Capacitance | 16.0pF. /Ft. Nom. |
| Velocity of Propagation | 66.7% |
| Return Loss | 20dB min (5-860MHz) | 15dB min(860-2500MHz). |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.86 | 2.82 |
| 55 | 1.95 | 6.39 |
| 187 | 3.60 | 11.81 |
| 250 | 4.00 | 13.11 |
| 300 | 4.45 | 14.6 |
| 350 | 4.64 | 15.21 |
| 400 | 4.88 | 16.00 |
| 450 | 5.40 | 17.72 |
| 500 | 5.60 | 18.36 |
| 550 | 5.90 | 19.34 |
| 600 | 6.20 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |

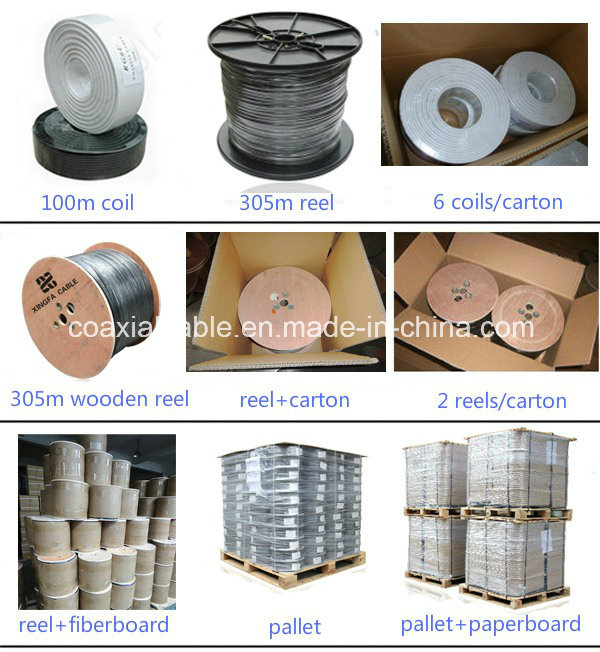

2.Packing:1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.
This is our factory pictures below.
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.
Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
