| Prod Model: |
HP9117C 1000-3000VA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Uninterrupted Power Supply Online UPS |
| Shape: |
Rack Mount UPS |
| Capacity: |
0.7-3kVA |
| Power Factor: |
0.9 |
| Design: |
Double Conversion Online UPS |
| Applications: |
Telecom |
| Nominal Frequecy: |
50/60Hz |
| High Efficiency UPS: |
>95% |
| Transfer Time: |
0ms(AC to DC) |
| DC Voltage: |
24/36/48/96VDC |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Sorotec |
Product Description

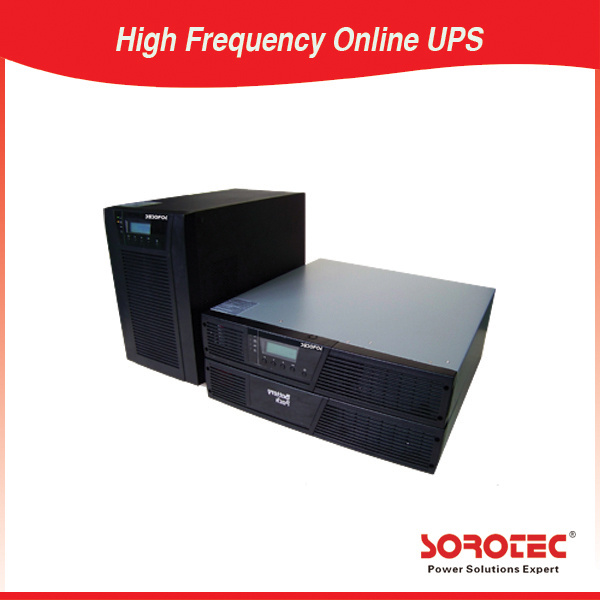

Rack Mount Online UPS ,Uninterrupted Power Supply Online UPS for TelecomSOROTEC HP9117C Series Rack Mount UPS-High Frequency Online UPS 0.7-3KVA1.Output power factor: 0.9
2.Configuration: Rack mount or Tower
3.Product Rating: 1000 to 3000VA
4.Voltage: 100-120V or 220-240V
5.Frequency: 50/60Hz(auto-sensing)
Key Features:1. Protects against downtime, data loss and process interruption by providing continuous, clean power
2. Offers premium performance with a 0.9 power factor and >95 percent efficiency
3. Increases battery service life and system uptime with ABM battery charging technology
4. Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical system or processes
5. Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space.
6. Enhanced monitoring and configuration capability through easily navigated multilingual graphical display
7.Optional language by LCD display(multilingual: English, Russian, German, French, Spanish)
Technical Spcification:| Model | HP9117C 0.7-3KVA |
0.7KT/
0.7KR | 0.7KTXL/
0.7KR-XL | 1KT/
1KR | 1KT-XL/
1KR-XL | 1.5KT/
1.5KR | 1.5KTXL/
1.5KR-XL | 2KT/
2KR | 2KT-XL/
2KR-XL | 3KT/
3KR | 3KT-XL/
3KR-XL |
| Capacity | 0.7KVA/0.63KW | 1KVA/0.9KW | 1.5KVA/1.35KW | 2KVA/1.8KW | 3KVA/2.7KW |
| Nominal Voltage | 100/110/120/127VAC or 200/208/220/230/240VAC |
| Nominal Frequency | 50/60 Hz |
| Input |
| Voltage Range | 60-138VAC or 115-276VAC |
| Frequency Range | 50HZ:(46~54HZ);60HZ:(56HZ~64HZ) |
| Power Factor | >0.98 |
| Output |
| Voltage Precision | 100/110/120/127VAC 2%) or 200/208/220/230/240VAC (±2%) |
| Frequency Precision | 50Hz/60Hz±0.05Hz |
| Power Factor | 0.9 |
| Harmonic Distortion | Linear Load<3% Non-Linear Load<5% |
| Overload Capacity | 100%~102% overload warning;102%~129% 12s; 130%~149% 2s; ≥150% 100ms |
| Current Crest Ratio | 3:1 |
| Transfer Time | 0ms (AC→DC)
|
| Battery |
| DC Voltage | 24VDC | 36VDC | 48VDC | 96VDC | 96VDC |
| Recharge Time | 5 hours to 90%(it mean standard model which battery inside the UPS) |
| Charge Current | 1A | 4A/8A
(option) | 1A | 4A/8A
(option) | 1A | 4A/8A
(option) | 1A | 4A/8A
(option) | 1A | 4A/8A
(option) |
| Panel Display |
| LCD | UPS status, input/output voltage and frequency, battery voltage, capacity, load, temperature, history records |
| Language | English, French, German, Russian, Spanish |
| Communications |
| Communications Interface | Optional: SNMP card,AS400 card or the CMC provide software, EPO ,USB port |
| Working Environment |
| Temperature | 0 40ºC |
| Relative Humidity | 0 95% (Non-condensing) |
| Storage Temperature | -25ºC 55ºC |
| Elevation | <1500 m |
| Noise Level(1m ) | <45dB | <50dB |
| Physics Characteristic |
Weight
(KG) | N.W | 13 14 | 9 10 | 15 16 | 8.5 9 | 18 18.5 | 10 10.5 | 33 10.5 | 16.5 11.5 | 34 11.5 | 17 12.5 |
| G.W | 15 16 | 11 13 | 17.5 17.5 | 11 11.5 | 20 20.5 | 12 12.5 | 35 12.5 | 18.5 13.5 | 36 13.5 | 19 14.5 |
| Dimensions: ( Wx D x H )mm | |
| Main unit(Tower) | 158X355X250 | 158X385X250 | 158X433X250 | 220X410X345 | 220X410X345 |
| Main unit(Rack mount) | 482.6X450X89(2U) |
FAQ:1.Output wave when take the full loadThis product provide pure sine wave output when take the resistance load.
...................................................................................................................................................
2.About THDIBecause this series product is not rectifier function, so can't make the THDI when use it.
...................................................................................................................................................
3. About serviceWe are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most
perfect after- sales service.
...................................................................................................................................................
4.About SORO technologyWe have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.
...................................................................................................................................................
