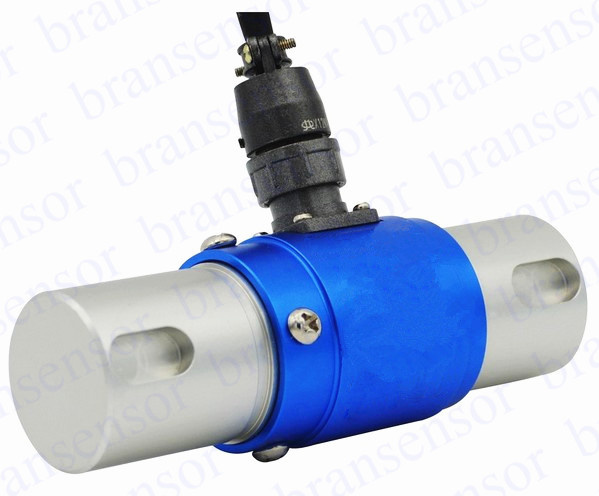

1.Product Name: Reaction Torque Sensor With Shaft to Shaft Torque force measurement transducer (BTQ-402)
2. Material: Alloy Steel
3. Capacity: 0-0.5,1,2,5,10,20,50,100Nm; 0~200,300,500,1000 Nm; 0~2000,3000,5000Nm

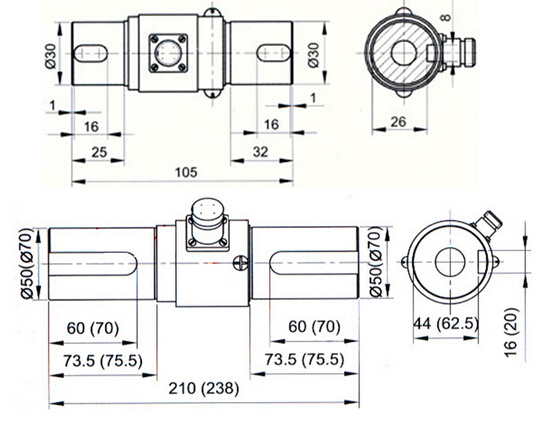

4. Design

5. Description:
Brans shaft to shaft reaction torque sensors are designed for installation between test pieces, such as motors, switches, axles or shafts and their mounting plates. These models operate and are calibrated in both directions. Each transducer utilizes four bonded strain gauges on a special-machined portion of the transducer to achieve a maximum non-linearity of 0.2% over a wide dynamic range. They are constructed of either stainless or nickel-plated alloy steel with no moving parts for enhanced durability in harsh, industrial environments.
6. Datasheet

Number	Specifications	Technique
1	Capacity/Range	0-0.5,1,2,5,10,20,50,100Nm, 0~200,300,500,1000 Nm 0~2000,3000,5000Nm
2	Rated output	1.0~2.0mV/V
3	System accuracy	±0.1; ±0.3; ±0.5%F.S
4	Zero balance	0~±1%F.S.
5	Non-linearity	±0.2% R.O.
6	Hysteresis	±0.2% R.O.
7	Repeatability	0.05%F.S.
8	Creep(30min)	0.1%F.S.
9	Temp.effect on output	0.1%F.S./10ºC
10	Temp.effect on zero	0.1%F.S./10ºC
11	Input impedance	700±10/350±10Ω
12	Output impedance	700±10/350±10Ω
13	Insulation	≥2000MΩ/100VDC
14	Recommended excitation	12VDC
15	Response frequency	100μS
16	Compensated temp range	-20~60ºC
17	Operation temp range	-35~80ºC
18	Safe overload	120%F.S.
19	Ultimate overload	200%F.S.
20	Cable size	Φ5×3000mm(option)
21	Material	Alloy Steel
22	IP Class	IP67

7. Features:
Made of Alloy Steel,Strong stability
Easily integrates into OEM applications
Shaft to shaft reaction type
Designed for Torque auditing
Uses strain gauge technology
Reaction (non-rotating) Torque measurementsMainly used for packing scales,hopper scale and industrial measuring system

For those who are a looking for a complete system solution, BRANS can provide both signal conditioned displays system. All of these will help you to do data acquisition and get±5V, ±10V, 0-5V, 0-10V or 4-20mA output easily.

Need something special or a completely customized design? Contact Honeywell to discuss your particular application requirements.

Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time. www.bransensor.com

Prod Model:	BTQ-402
Certification:	SGS
