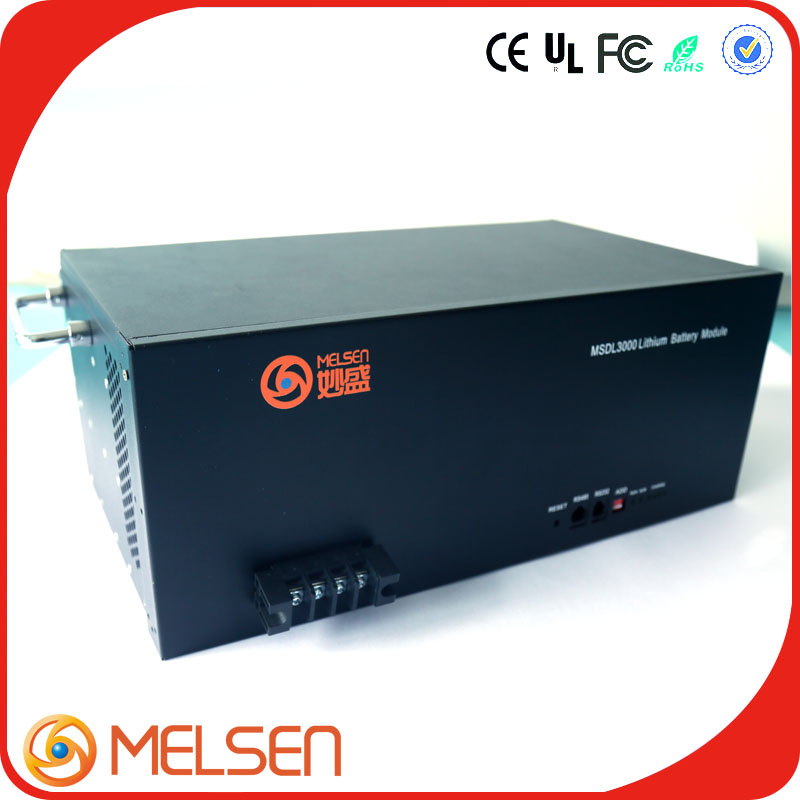

Rechargeable 48V 100ah LiFePO4 Battery Packs for Solar System
1. Battery Parameter
Model | LFP48V01 |
Rated voltage of lithium battery 48V 50Ah | 48V |
Rated capacity | 50Ah |
Standard charge | Constant current at 0.3C with max. voltage of 57.6V and cutoff current at 0.01C |
Standard discharge | Constant current at 0.5C to 40V |
Max. charge current | 25A (0.5C) |
Max. discharge current | 50A (1C) |
Operating temperature | Charge:0~45 deg.C;discharge:-20~65 deg.C |
Storage temperature | -10~45 deg.C less than 3 months;-0~25 deg.C less than 1 year |
Storage humidity | 25 to 85% RH |
Weight of lithium battery 48V 50Ah | 32KG |
Dimension | OEM |
Long cycle life | More than 2000 times(95% DOD) |
Internal resistance | 2 mΩ |
2. Description of Lifepo4 Telecom Battery
1. Adopt lithium iron phosphate (LiFePO4) material
2. Communication of monitored data via battery
3. Usually be connected in series or in parallel as battery pack
4. Can choose RS232 & RS485 standard communication interface
5. Internal cell balance, built-in Integrated BMS (Battery Management System)
6. Fast charging-normally recommended 0.5C for 2 hours
7. Ensure long cycle life-at least 2000 cycles under 100% DOD
8. Can replace lead acid battery with same size and 1/2 weight
The capacity and dimension can customize according to your request.
(For replacement of lead acid battery,the same size of SLA battery)
48V 20AH,50AH,100AH,200AH,300AH ,600AH and so on!
4. More other battery packs4.1. our 3.6v modules , designed for big electric vehicles like 10kwh / 20kwh / 30kwh.

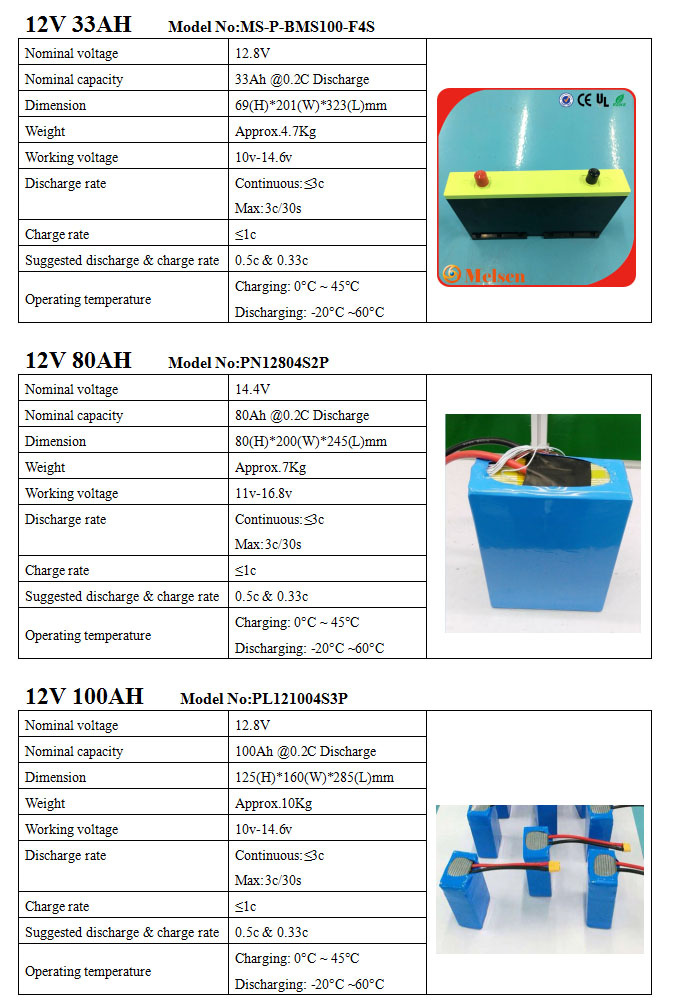

4.2. our 12v battery pack , designed for car start or small energy storage or solar. We also could make 12v with other capacity from 12ah to 200ah, please contact me for details.
4.3. our 24v battery pack , designed for small energy storage or solar. Other capacity is also available from 12ah to 200ah.
4.4. our 48v and 72v battery pack , designed for small electric vehicles like motorcycle or golf cart . Other capacity is also available from 12ah to 200ah.
5. Our battery cells catalogMelsen uses Lithium Iron Phosphate (LiFeP) batteries for electric vehicle conversions. The battery cells utilize the latest advancements in nanotechnology.
All of our battery packs(12v-400v,12ah-200ah) are made of those following lithium ion pouch cells. These cells are very safe in normal operation, DO NOT cause fires as the early Lithium Phospate batteries.
The selected batteries solve the Safety concerns of being in an Electric Vehicle (EV) / Electric Car Conversion Kit, every cell has a built-in safety device if punctured or damaged, will vent to the atmosphere making the cell much safer.
Compared to lead acid battery, it is 4 time lighter in weight , and 4 time longer in lifespan.
Compared to li ion battery, it is 2 time lighter in weight , and 2 time longer in lifespan.
Compared to lithium ion square battery, it is 0.5 time lighter in weight , but much safer when using. | | | | | |
| | | | 280±5.0g | |
| | | | 260±5.0g | |
N43188236 | 20Ah | 3.6V | 4.3*188.5*236.5 | 400±5.0g | 60&20 A |
N7892232 | 18.2Ah | 3.6V | 78*92*232 | 360±5.0g | 54.6&18.2 A |
| | | | 550±5.0g | |
| | | | 640±5.0g | |
| 33Ah | | | 700±5.0g | |
| | | | 790±5.0g | |
6. Our company introduction
The largest lithium-ion battery production base for new energy vehicles.
Melsen Power Technology Co,Ltd. is a professional manufacturer engaging in research,development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.Those products are widely used in EV,HEV,UPS,solar and wind system and remote control products.
Located in Hunan National Economic Development Zone in 2012, Melsen power has registered capital of RMB 50 million and been proved by government to be a national high tech enterprise.
Melsen Power has more than 800 staffs,including 20 advanced managing people, more than 40 development and research engineers.It has building area of 120,000 square meters and 3 factory bases ,those are,Ningxiang base ,Changsha base and Shengyang base.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality,we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
Not only in local market,our products are also exported to abroad market like Euro,USA,India,Australia,Korea. Our sales volume reached 100 millions in 2015.
We stick to the company concept of human orientation and efficient innovation and we welcome customization.So, lets join together to promote the development of renewable energy and friendly environment.
let's continue discussions and work on more,tks.----Michael (from Berlin,Germany)
8. Order Information
Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 7 working days for sample order, 15- 25 working days for mass order.9. FQADo the batteries have a warranty?
§ Yes, currently 2 years; extended warranties are also available.
How long do the batteries last?
§ 10 years / 200,000 KM (124,275 miles) [calculated based on 100km battery pack]
§ 2000 charges & discharges at 100%.
§ This means approximately 10 years of normal use 200,000 KM. (124,275 miles)
§ Normal use is defined as 20,000km/year. (12,500 miles/year)
Do you use Lead Acid Batteries?
NO WE DO NOT! Our reasons:
§ Lead Acid Batteries do not allow as many charge & discharge cycles as advanced lithium batteries
§ Lead Acid batteries degrade after 300 charge cycles in an electric car until they expire, approximately 1.5 -2 years of driving
§ Not cost effective to change your battery pack every two years
§ Lead Acid is HEAVY, and reduces your range, doesn't supply continuous power
Welcome you to visit our production base and to check our production lines!
If any requirements on those lifepo4 & NCM battery cell, please feel free to contact me without hesitate.
