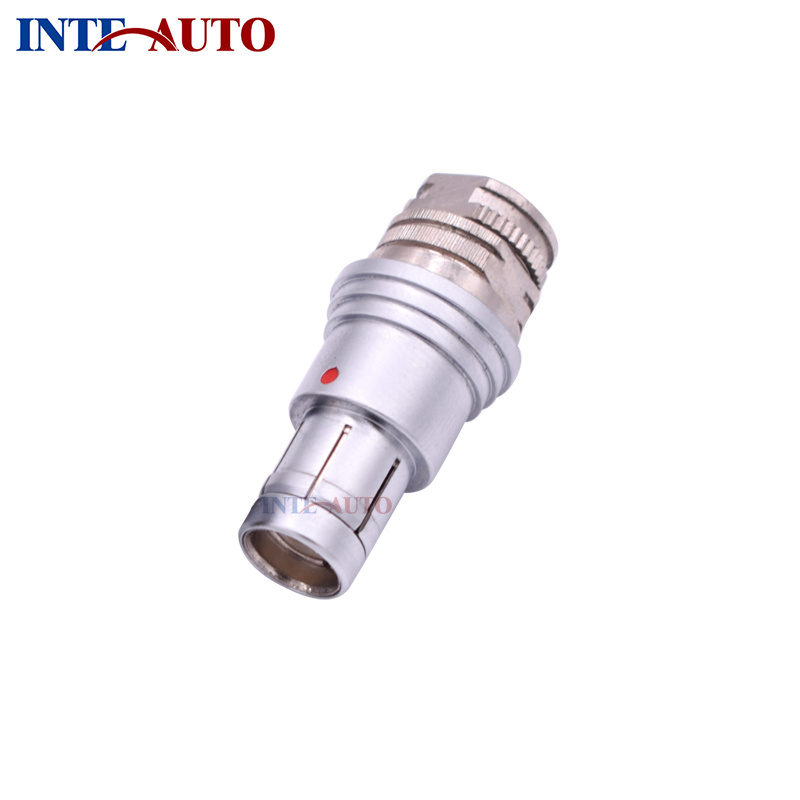

Replacement Fischer Metal Waterproof Short Plug
| Price: |
US $ 7-10/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

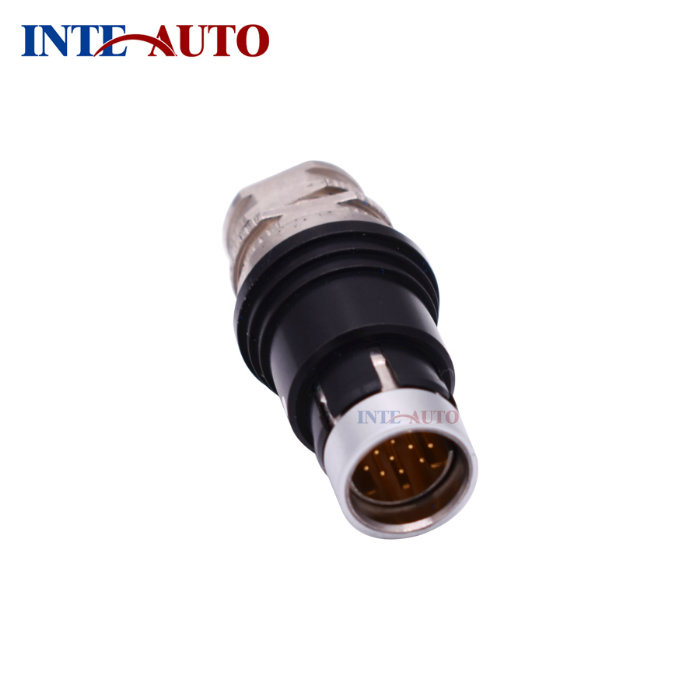

0F series circular male connector,multipins.
Model(T3). Series(0F…1F),Straight plug,with half-shell key(G or A),Short type, cable collet and nut for overmolding
F series connector with the following main features:
1.-Original push-pull locking system
2.-Widely adopted by the industry
3.-Unparalleled signal integrity
4.-Fully secured against accidental disconnection
5.-Self-locking mechanism
6.-Designed for frequent connect/disconnect operations
7.-Ideal for compact product designs
8.-Locking system integrated into connector housing
9.-Push-pull locking system delivered as standard
10.-Non-locking or emergency quick release solutions also available

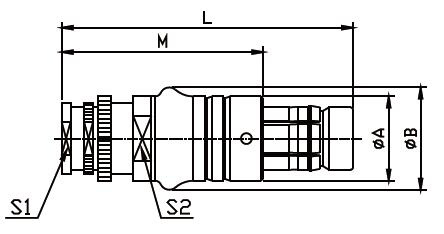

Product size:
| Reference | Dimension |
| Model | Series | L | A | M | S1 | S2 |
| INT3 | 0F | 32.5 | 9.4 | 22.5 | 7 | 8 |
| INT3 | 1F | 32.8 | 11.8 | 25 | 11 | 11 |
Product Details:
Parts of connector:
1. shell made of copper alloy, stainless steel is used in special occasions, plated with Nickel or Chrome;
2. pin and jack made of copper alloy, plated with gold;
3. insulator molded with engineering plastic which is high-temperature endurable and good insulating;
4. sleeve molded with soft plastic to protect cables.
5. Waterproof gasket ring is made of high-temperature endurable silicone rubber
Industry Application:
This F series are widely used in electronics, instrumentation, video processing, sensors, medical equipment, and detection system area and so on.
INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.

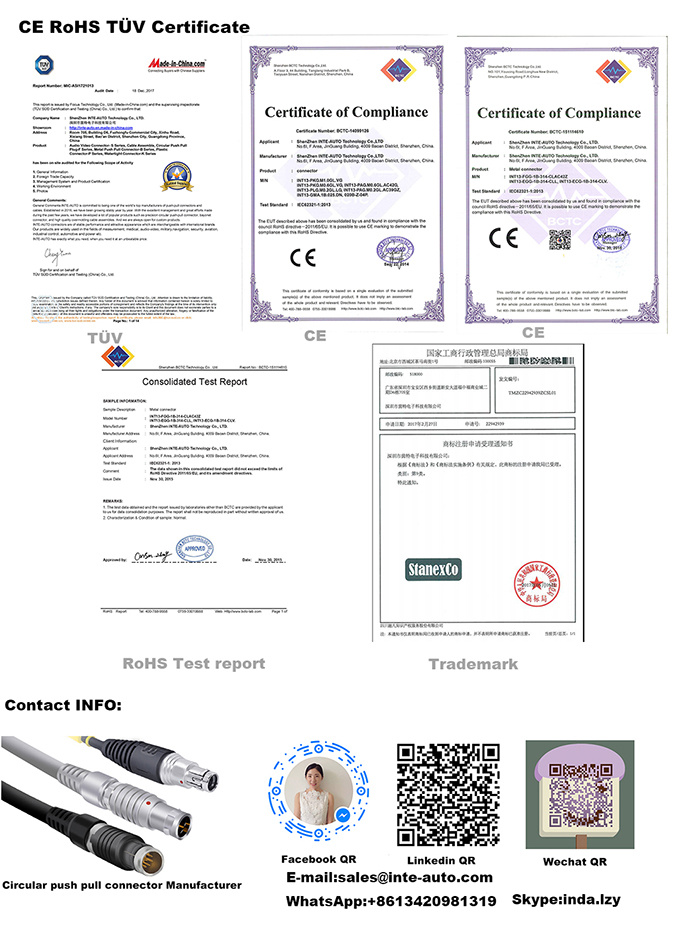

INTEAUTO Certifications &Contact INFO
Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.
| Prod Model: |
Fischer S1031-SS |
| Contacts Type: |
Solder |
| IP Degree: |
IP50 |
| Number Of Contacts: |
2,3,4,5,6,7,9pins |
INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.
