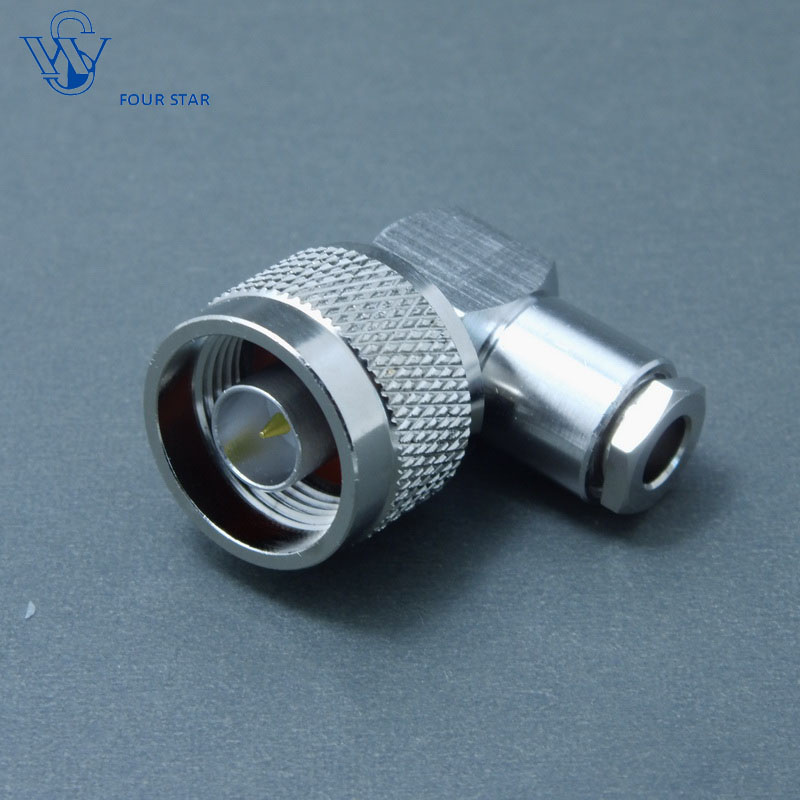

RF Male Clamp Right Angle Coaxial N Connector for Rg58 Cable
| Price: |
US $ 0.78-1.13/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
TYPE N is a kind of low to medium power connectors with screw coupling,Characteristic impedance has two types:50ohm and 75ohm.The characteristic of connector is high reliability,great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable,this type will gain smaller VSWR, and the frequency can by up to 11GHZ.| N male right angle clamp connector for rg58 cable |
| Model No. | N-JW3 |
| Interface | IEC 60169-16;MIL-C-39012;CECC-22210 |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-11GHz |
| VSWR | ≤1.25@DC-3000MHz |
| Insertion Loss | ≤0.24dB(6GHz) |
| 3rd Order IM (PIM3) | - |
| Working Voltage | 1000V RMS,50Hz,at sea level |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center Contact ≤1mΩ |
| Mating | | |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Cable Clamp | Brass | Ag |
| Ferrule | - | - |
| Environmental | |
| Operating Temperature | -45 ºC to 85 ºC |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant by exemption |
| Suitable Cable Family | RG58/RG142 cable |
