Rotary Shaft Torque Sensor (BTQ-406)

Name: Rotary Shaft Torque Sensor (BTQ-406)
Brand: all-electronics-online.com
SKU: 822117115
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1. Product Name: Rotary Torque Sensor - Non contact shaft to shaft with Encoder(BTQ-405)
2. Material: Alloy Steel
3. Capacity: 0-100KNm

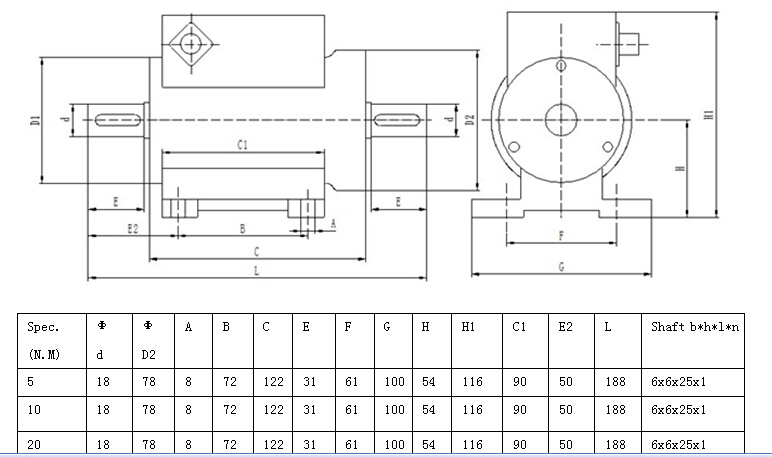

4. Design

5. Datasheet

Number	Specifications	/Technique
1	Capacity/Range	0-20,50,100-5000,10-300KN.m
2	Rated output	1.0~2.0mV/V
3	System accuracy	±0.1; ±0.3; ±0.5%F.S
4	Zero balance	0~±1%F.S.
5	Non-linearity	±0.2% R.O.
6	Hysteresis	±0.2% R.O.
7	Repeatability	0.05%F.S.
8	Creep(30min)	0.1%F.S.
9	Temp.effect on output	0.1%F.S./10ºC
10	Temp.effect on zero	0.1%F.S./10ºC
11	Input impedance	700±10/350±10Ω
12	Output impedance	700±10/350±10Ω
13	Insulation	≥2000MΩ/100VDC
14	Recommended excitation	12VDC
15	Response frequency	100μS
16	Compensated temp range	-20~60ºC
17	Operation temp range	-35~80ºC
18	Safe overload	120%F.S.
19	Ultimate overload	200%F.S.
20	Cable size	Φ5×3000mm(option)
21	Material	Alloy Steel
22	IP Class	IP67

6. Features:
Easily integrates into OEM applications
Designed for Torque auditing
Flange to flange design, easy to install
Alloy or stainless-steel construction
Strain gauge based
7. Description:

Brans offers a line of non-contact, rotary, transformer, shaft torque sensors ideal for test installations running long-term durability testing. The non-contact nature of the signal transfer virtually eliminates the need for maintenance. High overload protection with high signal output helps prevent potential damage to the sensor. The carrier frequency excitation provides increased signal/noise immunity.

Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements.

Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time. www.bransensor.com

Prod Model:	BTQ-406
Certification:	SGS

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
