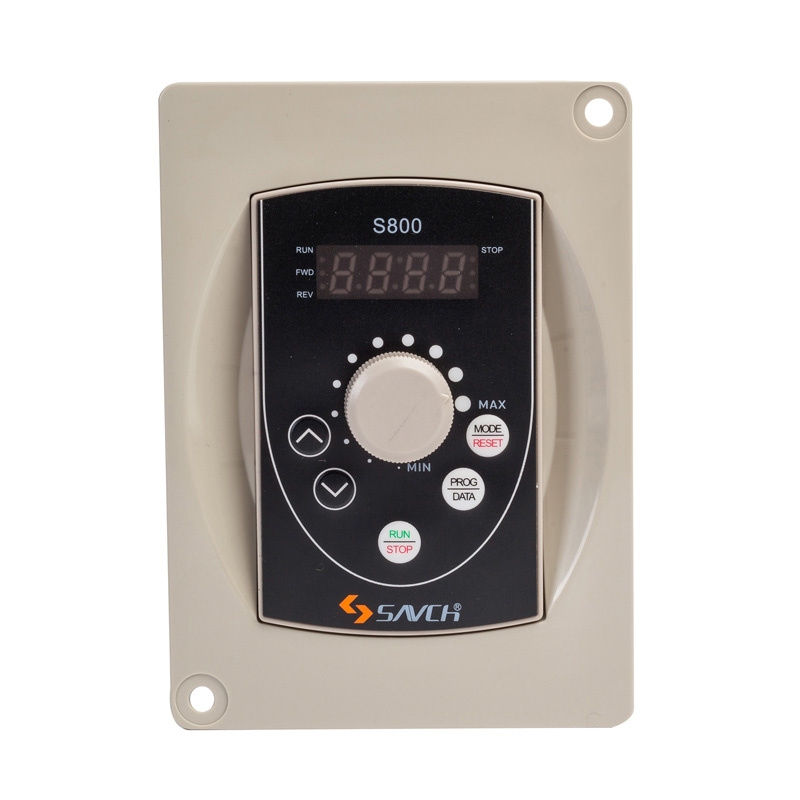

| Prod Model: |
S800E VSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Size: |
Mini |
| Certification: |
CE.ISO |
| Warranty: |
12month |
| Control: |
Vector Control |
| Power Range: |
0.2-1.5kw |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Sanch |
Product Description
Specifications:
1) Rated voltage: 220V / single phase
2) Power range: 0.2 ~ 1.5kW
3) Output frequency: 1.0 ~ 400Hz
Low Noise High-Performance
Rated Voltage (V): 220V single/three phase Power Range (kW): 0.2kW~0.75kW Output Frequency: 1.0~400Hz
Features:
1, Compact and easy to install
2, Easy to operate
3, 4-level speed auto torque compensation
4, Auto slip compensation
5, Parameter locking/reset adjustable carrier
6, Uses interface design of port making wiring easier
7, Frequency setting potentiometer
8, RS-485 in-line with built in interface
Product application
1, logistic equipment: Assembly line, conveying equipment, automatic storage & transport equipment...
2, electronic manufacturing equipment: Winding machine, wave soldering machine, PCBequipment, foam
Mechanical equipment, small plastic machinery
3, Machining equipment: Engraving machine, centerless grinder, wire-cutting machine, electric discharge machine
4, Textile machinery: Small knitting machine, glove knitting machine, winding machine, spreading machine, loom
5, others: Stone cutting machine, washing machine, printing equipment, pharmaceutical machinery, food machinery, medical equipment, fitness appliance(treadmill, body shaping machine) screen print machine
Fan&water pump(water supply for building)
| Input Voltage Level | 220V |
| Model S8000-2s*** | 0.2G | 0.4G | 0.75G | 1.5G |
| Applicable Motor Power(kw) | 0.2 | 0.4 | 0.75 | 1.5 |
| Rated output capacity(Kva) | 0.6 | 1.0 | 1.6 | 2.9 |
| Rated output current(A) | 1.6 | 2.5 | 4.2 | 7.0 |
| Maximum output voltage(v) | SINGLE-PHASE CORRESPONDING INPUT VOLTAGE |
| Range of output frequency(Hz) | 1.0~400 Hz |
| Rated input current(A) | 4.9/2.4 | 6.5/3.0 | 9.7/5.1 | 15.7/9 |
| Admissible variation range | Single-phase power supply 200-240V 50/60Hz |
| of input voltage |
| Variation range of power | +-5% |
| supply frequency |
| Control mode | V/F& SVPWM spatial vector modulation |
| (carrier 2kHz-12kHz) |
| Resolution of output frequency | 0.1 Hz |
| Torque characteristic | Torque and speed drop compensation function. |
| trigger torque can be up to 150% in 3 Hz |
| Overload toleration | 60 seconds under 150%of Rated output current |
| Accelerating and decelerating time | 0.1~600seconds(can be set independently) |
| V/F curve | Randam V/F curve setting |
| Action adjustment to avoid losing speed | Set by percent of Rated current, 20%~200% |
| Protective Function | Over-voltage, over-current, low-voltage, overl |
| oad limits, electronic thermocouple, overheat, |
| self-check, ground protection, abnormal port |
| Type of Cooling | Air-blast cooling |
| Using location | Lower than 1000m, indoor(keep from corrosive |
| gases, liquids and dust) |
| Environment temperature | -10~40(no dewing and icing) |
| Storage temperature | -20~60 |
| Humidity | Below 90%RH(no dewing) |
| Vibration | 9.80665m/s2 below 20Hz(1G) 5.88m/s2 below |
| 20~50Hz(0.6G) |
