Sc/FC/St/LC Simplex Single Mode 3.0mm Fiber Optic Armored Patchcord
Price: |
US $ 0.88/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
Armored Patchcord |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Fiber Optic Armored Patchcord |
Connector: |
Sc, LC,FC,St,E2000 etc. Is Optional |
Cable Material: |
PVC,LSZH,Ofnp,Ofnr etc |
Cable Jacket: |
Single Armored |
Cable Od: |
3.0mm |
Cable Color: |
Blue |
Bend Radius: |
40mm |
Tensile Loads: |
100~132 Lbs |
Certificate : |
Ce, RoHS,ISO |
Warranty: |
2 Years |
Application: |
Communication |
Type: |
Single-mode Fiber |
Connection Structure: |
SC-SC |
Certification: |
CCC |
Product Description
SC/FC/ST/LC Simplex Single Mode 3.0mm Fiber Optic Armored Patchcord
DescriptionArmored fiber cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. Features:* Connector type SC, LC,FC,ST,E2000 etc. is optional* Stainless steel tube provides good protection against physical damage.* Single mode and Multimode; Simplex or Duplex* Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core* Custom order length* Cable out Jacket: PVC,LSZH,OFNP,OFNR etc.* All parts compliant with ROHS* IEC standard compatible* GR-326-CORE CompliantParameter:Item | Mode Type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
Cable Diameter | 3.0mm |
Cable Jacket | Single Armored |
Cable Color | Blue |
Bend Radius | 40mm |
Tensile Loads | 100~132 lbs |
Cable Material | Stainless steel tube, PVC |
Operating Temperature | -40ºC~+75ºC |
Storage Temperature | -40ºC~+75ºC |

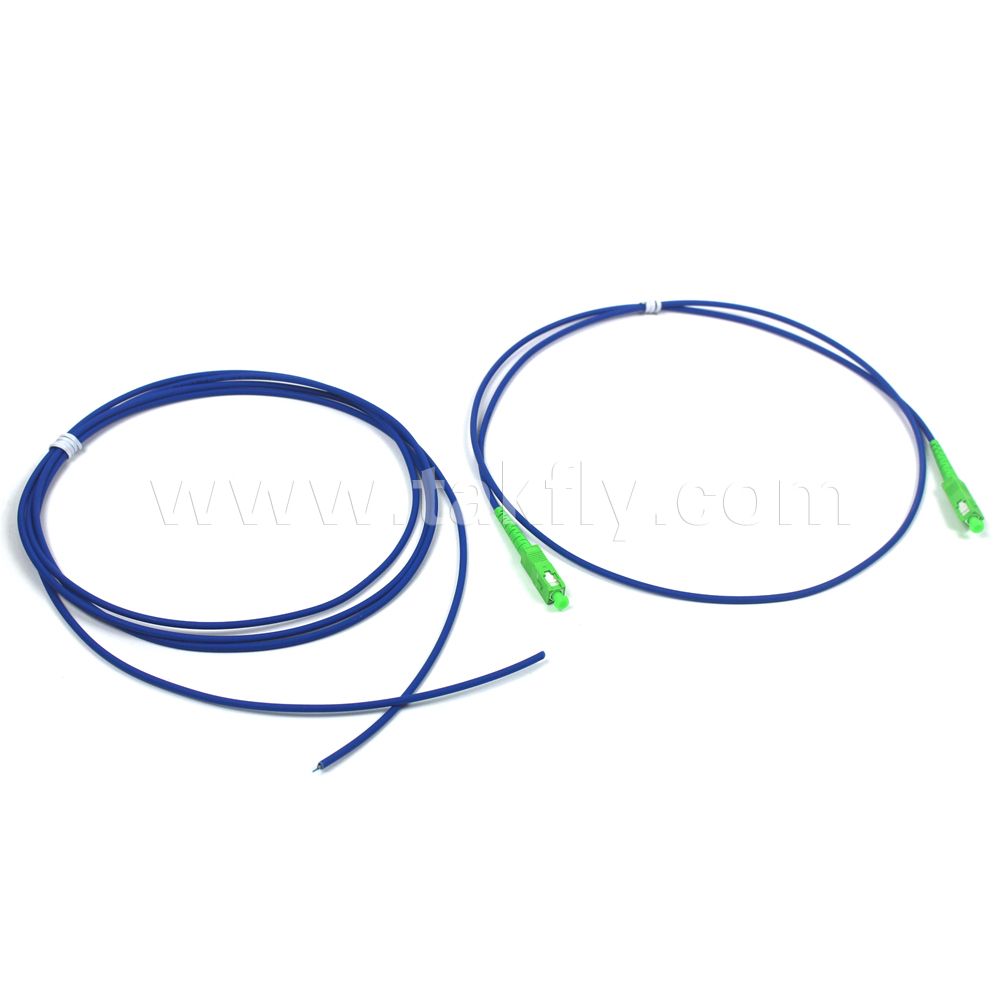

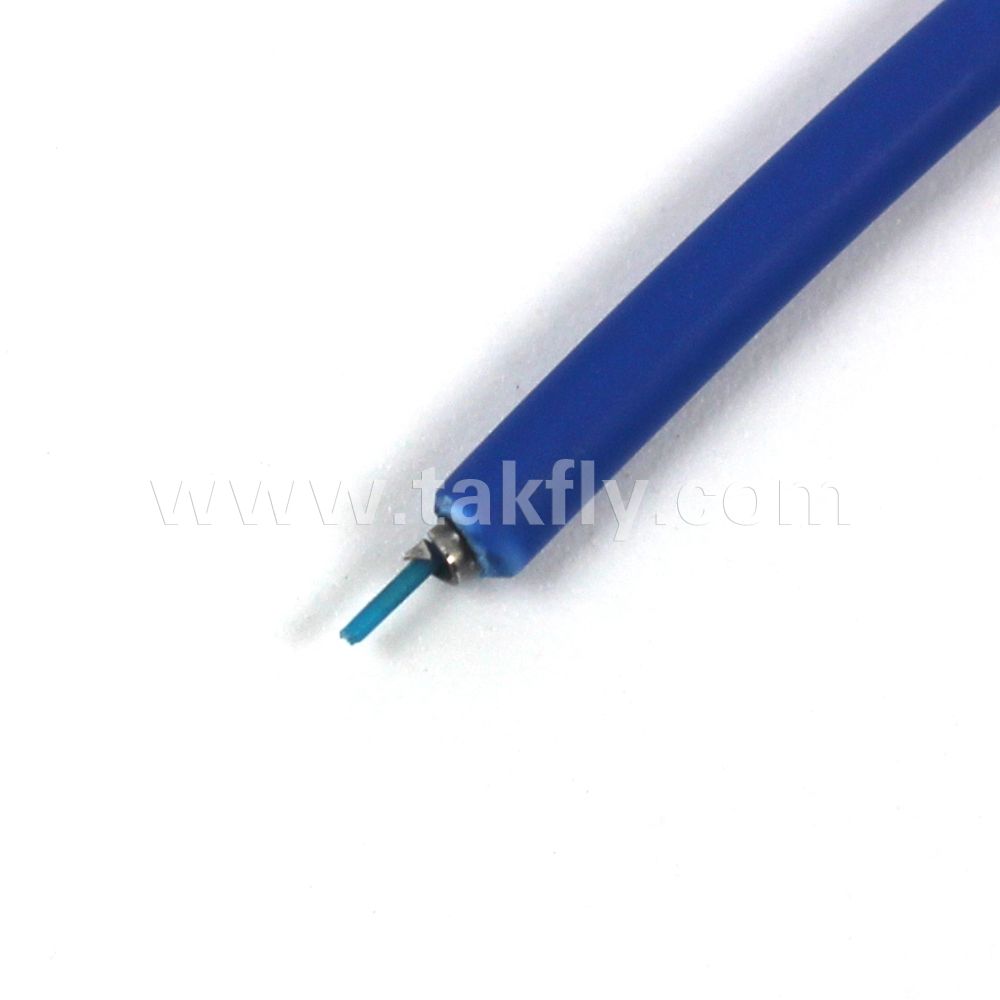

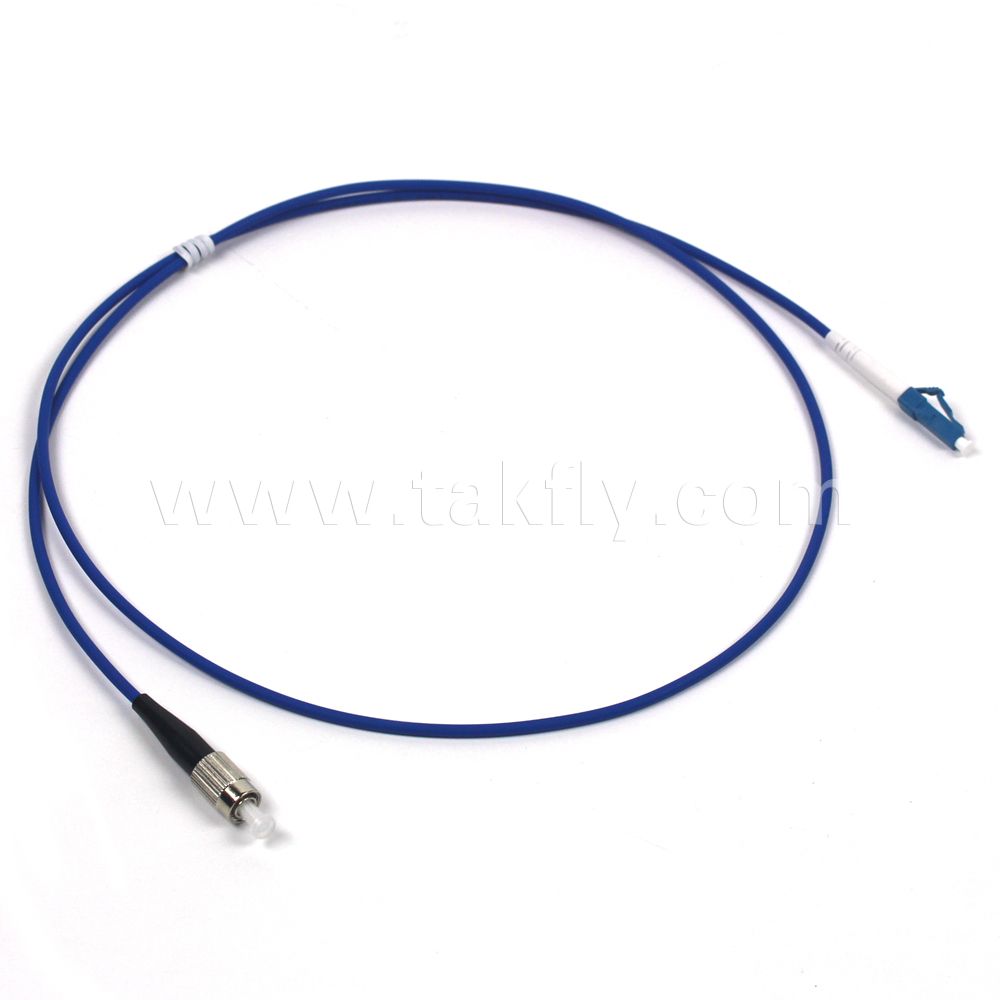

Product PictureCertificates
International Exhibition
Services1,We provide professional offer, detailed products test report and related specifications.2,We provide professional technology support to meet the requirements of customers.3,Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers.4,we supply free samples if necessary.5,We supply ODM/OEM products & services.If you interest or have any question, Why not send inquiry? Welcome & Just Do It !!!
