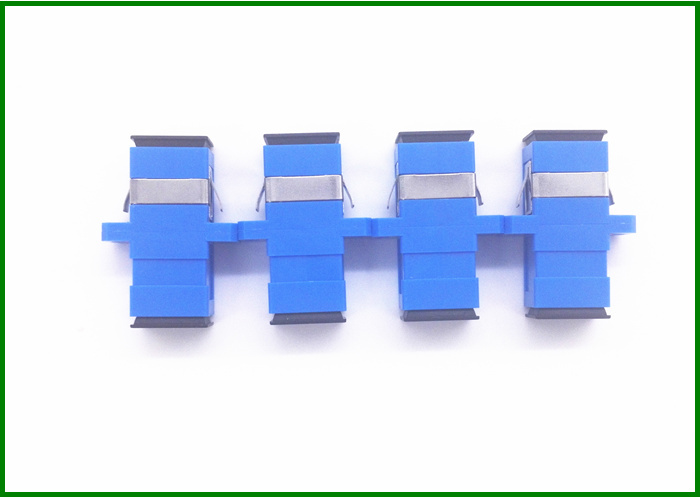

Sc Optic Adaptor Fiber Optic Converters Plug Simplex Core for Test Equipment

Name: Sc Optic Adaptor Fiber Optic Converters Plug Simplex Core for Test Equipment
Brand: all-electronics-online.com
SKU: 798220525
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 0.25-0.45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-AA-S-S-S-SC-FPC-SC-FPC
Config:	Adaptor
Connector:	Sc APC
Ferrule Type:	FPC
Feature:	Low Insertion Loss
Jacket:	Plastic/Metal
Sleeve:	Zirconia
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Connector Type:	Sc

Product Description

Description
Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are designed and manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications                                                                                        Features
Optical Network Wiring                                                                       Low Excess Loss
Test Equipment
Telecommunication Networks
CATV System
Telecommunication network
CATV/LAN
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland)                 Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve                                             Leadtime: 2 weeks

Company Profile
Business type:Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.

Ordering Information
SADP-1-2-3-4-5-6-7-8

1 Config	2 Fiber mode	3 Core	4 Type	5 Housing of 1st End	6 Ferrell Type	7 Housing of 2nd End	8 Ferrell Type
A=Adaptor	S=Single mode	S=Simplex	S=Standard	FC	MPC= Male PC	FC	MPC= Female PC
C=Converter	M=Milt-mode	D=Duplex	F=Flange	SC	MPC= Male PC	SC	MPC= Female PC
P=Plug	/	Q=Quad	0=Oval		FAPC= Female APC		FAPC= Female APC
/			P=Pismatic	LC	FAPC= Female APC	LC	FAPC= Female APC

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20 (Plug≤0.30)
Repeatability	Time	>1000
