Shark Fin GPS GSM FM Am Combo Antenna, Combination Antenna, Shark Fin Car Antenna, Screw Mount, Waterproof IP67 GPS GSM FM Am Car Antenna

Name: Shark Fin GPS GSM FM Am Combo Antenna, Combination Antenna, Shark Fin Car Antenna, Screw Mount, Waterproof IP67 GPS GSM FM Am Car Antenna
Brand: all-electronics-online.com
SKU: 730549392
Availability: InStock
Rating: 4.8 (47 reviews)

Price:	US $ 15-16/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-GPS/GSM/FM010
Antenna Type:	Combo Antenna
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

GPS/ GSM/FM/AM Combo Antenna Specifications:

Part Number: WK-GPS/GSM/FM010
Size	25×25×4mm
Center Frequency	1575.42MHz±3 MHz
V.S.W.R	1.5:1
Band Width	±5 MHz
Attenuation	fo±100MHz>30dB
Impedance	50 ohm
Peak Gain	>3dBic, Based on 7×7cm ground plane
Gain Coverage	>-4dBic at -90°<0<+90°(over 75% Volume)
Polarization	Right-handed Circular(RHCP)
LNA specifications
LNA Gain (Without cable)	28dB Typical
Noise Figure	1.5dB
V.S.W.R	<1.65
DC Voltage	2.7V-5.0V±0.5V
DC current	15mA Max(5V DC)
GSM specifications
Frequency Range	824-960/1710-2170MHz
V.S.W.R	1.5:1
Gain	2.5dBi
Polarization	Linear
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
FM/AM specifications
Frequency Range	520-1629KHz/76-108MHZ
V.S.W.R	2.5:1
Gain	20/12dBi
Polarization	Linear
Supply voltage	12V DC
Impedance	50 ohm
Mechanical Specifications
Weight	<500g
Cable	GPS: 4m RG174, RG316, LMR100 or other GSM: 4m RG174, RG316, LMR100 or other FM/AM: 4m RG174, power cable

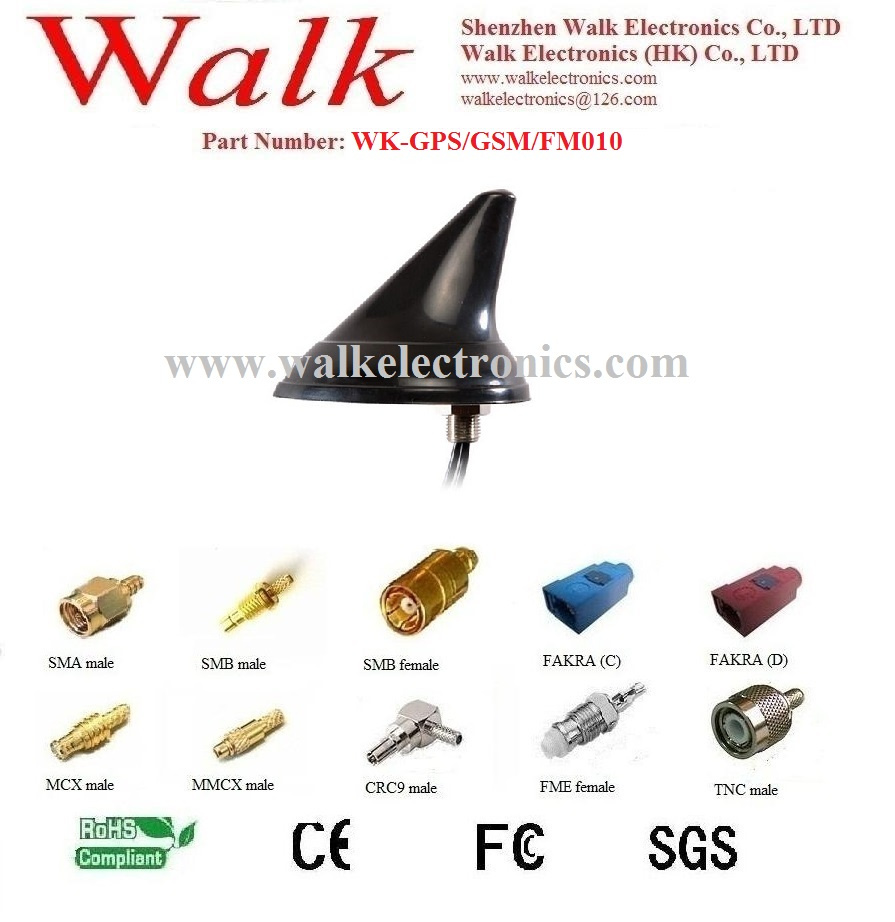

Connector	GPS: SMA male straight, SMB, FME, FAKRA or other GSM: SMA male straight, SMB, FME, FAKRA or other FM/AM: Car radio antenna connector
Mounting	Screw

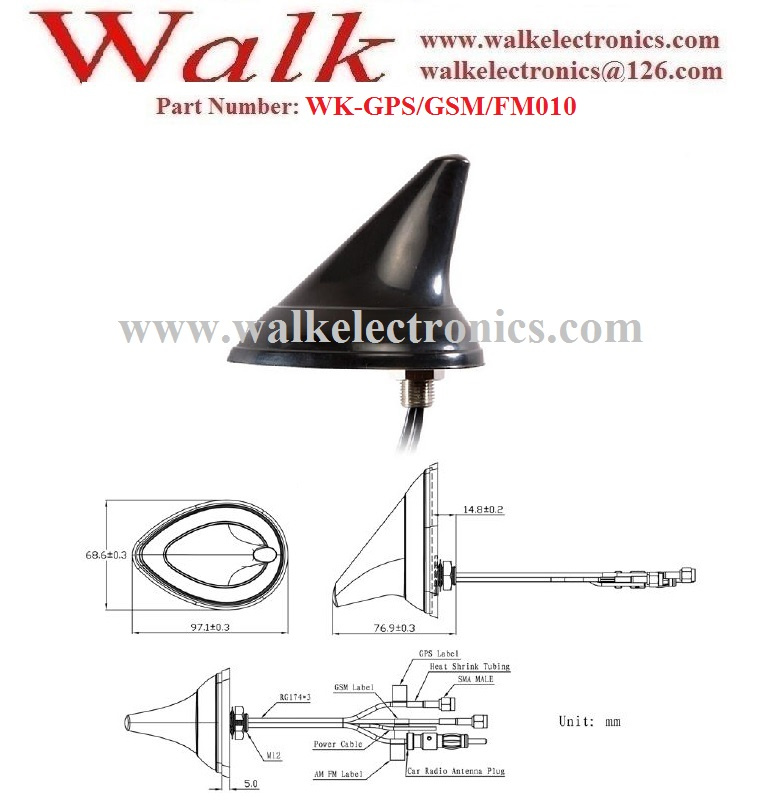

Housing	97x68x77mm, Black ABS
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
Weatherproof	100%Waterproof, IP67
MTBF=1×10-6/pc.hr	40ºC±5ºC, DC=3.0V±0.5V, 2000pcs For 480h
