SMA Male Straight Connector, Waterproof GPS Antenna, GPS Active Antenna, Magnetic or Adhesive Mount GPS Car Antenna,

Name: SMA Male Straight Connector, Waterproof GPS Antenna, GPS Active Antenna, Magnetic or Adhesive Mount GPS Car Antenna,
Brand: all-electronics-online.com
SKU: 730294822
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	US $ 3.1-3.6/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-GPS001-SMA
Connector:	SMA Male
Usage:	Car Antenna
Operating Wavelength:	Ultra-short Wave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Material:	ABS

Product Description

GPS Active Car Antenna Specifications:

Part Number: WK-GPS001-SMA
Dielectric Antenna Specification
Size	25x25x4mm
Center Frequency	1575.42±1MHz
Frequency Range	CF±5MHz
V.S.W.R	1.5:1
Attenuation	fo±100MHz>30dB
Impedance	50 ohm
Peak Gain	>3dBic, Based on 7×7cm ground plane
Gain Coverage	>-4dBic at -90°<0<+90°(over 75% Volume)
Polarization	Right-handed Circular(RHCP)
LNA specifications
LNA Gain (Without cable)	28dB Typical
Noise Figure	1.5dB
V.S.W.R	<1.65
DC Voltage	2.7V-5.0V±0.5V
DC current	13mA Max(5V DC)
Mechanical Specifications
Weight	<200g

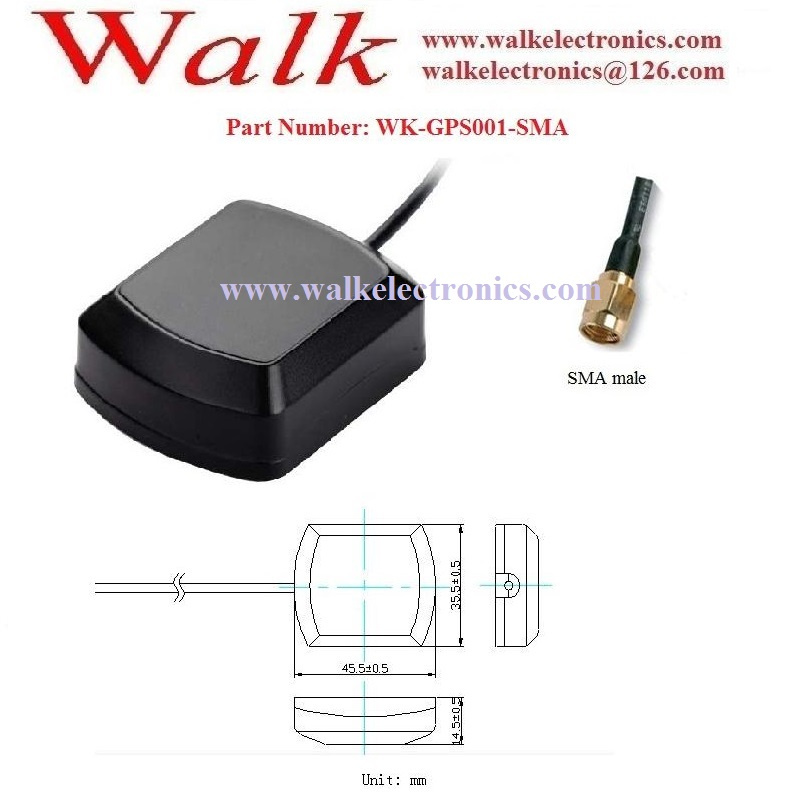

Size	45x35x14mm
Cable	3m RG174, RG316, LMR100 or others

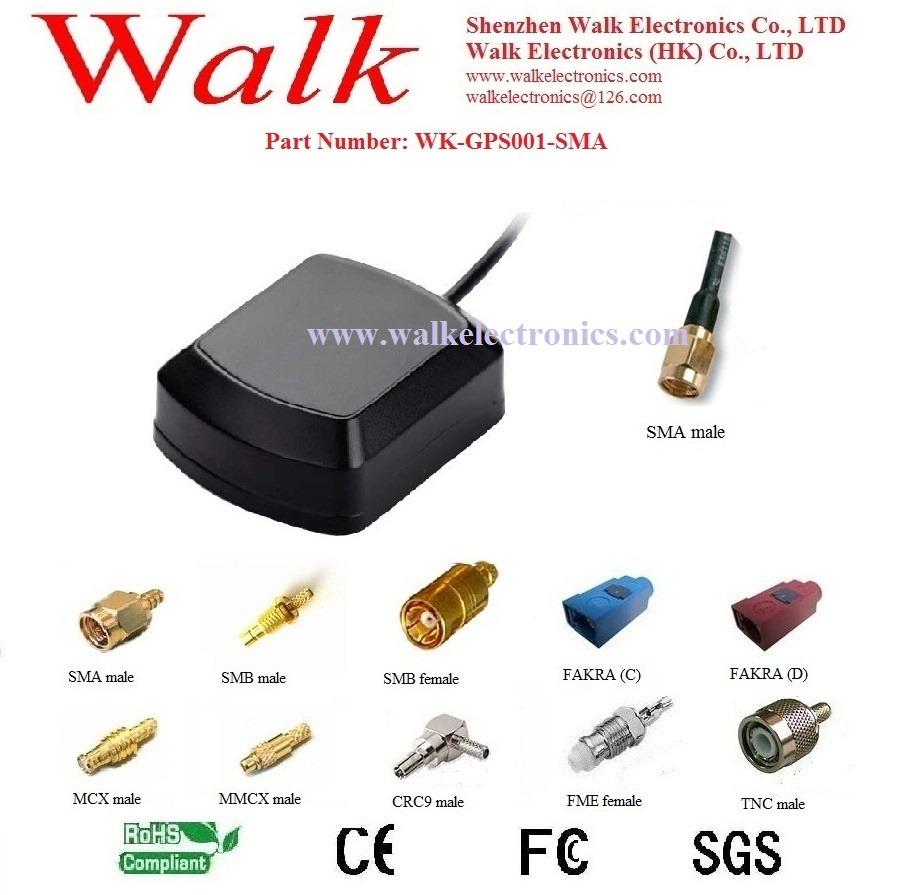

Connector	SMA male straight, SMB, FAKRA, FME or others
Mounting	Magnetic or Adhesive
Housing	Black ABS
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
Weatherproof	100%Waterproof
MTBF=1×10-6/pc.hr	40ºC±5ºC, DC=3.0V±0.5V, 2000pcs For 480h

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
