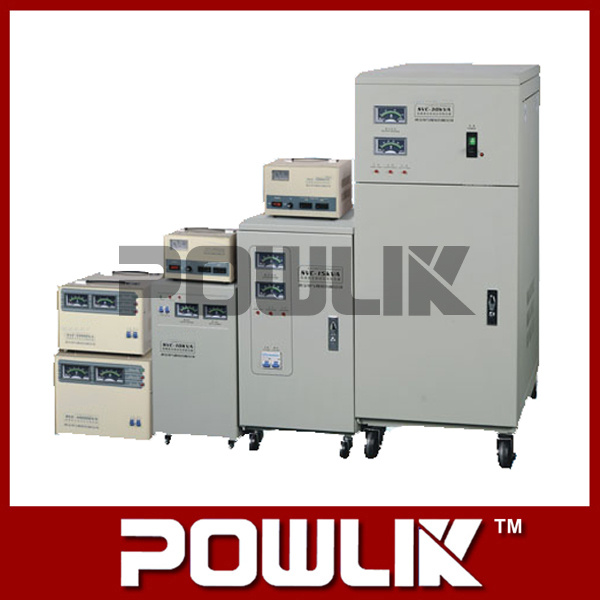

Single Phase and Three Phase Voltage Stabilizer (SVC)

SVC single - phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be djusted to rated value and get a steady state.

Single-phase input voltage	160v-250v	Frequency	50Hz
Single-phase output voltage	0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V	Adjustable time	<1s(when input voltage has a change of 10%)
Three-phase output voltage	Phase voltage 160V-250V Wire voltage 277V-430V	Ambient temperature	-5C to 40C
Three-phase output voltage	Phase voltage 160V-250V Wire voltage 277V-430V	Waveform distortion	No additional waveform distortion
three-phase output voltage	Phase voltage 220V Wire voltage 380V	Load power factor	0.8
three-phase output voltage	Phase voltage 220V Wire voltage 380V	Dielectric strength	1500V/1min
Accuracy of voltage stabilization	220V±3% 110V±6%	lnsulation resistance	≥2MΩ

Prod Model:	SVC SDW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Powlik
