| Prod Model: |
MZVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Characteristics: |
Continous Linear Voltage Adjustment |
| Characterized Voltage: |
Customizable |
| Input Voltage: |
380V/220V |
| Output Voltage: |
380V/220V |
| Dimension: |
360*175*300 |
| Weight(Kg): |
15.3 |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
JIW |
| Frequency: |
High Frequency |
| Size: |
Small/Large |
| Application Range: |
Hotel/School |
| Brand: |
Meze |
Product Description

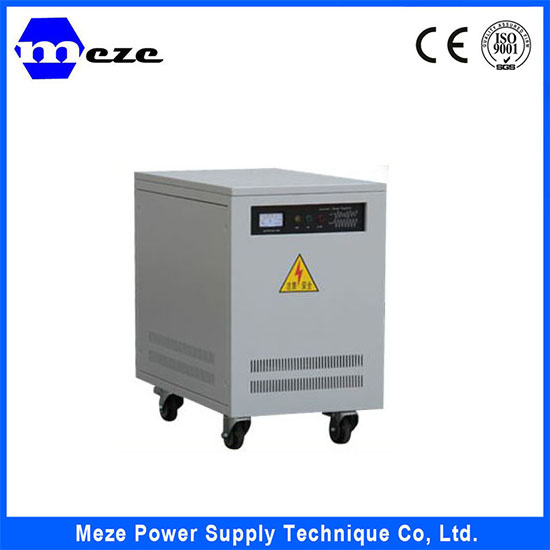

single phase voltage regulator ac stabilizer 5kVA-30kVA
| Model | MZVC1005 | MZVC1010 | MZVC1015 | MZVC1020 | MZVC1030 |
| Nominal capacity | 5KVA | 10KVA | 15KVA | 20KVA | 30KVA |
| input voltage | 220V±20% |
| output voltage | 220V±3% |
| frequency | 50/60Hz |
| Voltage regulation | ≤±3% |
| overpressure | 250V±5V |
| Under voltage protection value | 183V±5V |
| waveform distorition | ≥95% |
| effciency | No additonal waveform distortion |
| The electric strength | ≤1.5s |
| insulation resistance | ≥2MΩ |
| Response time | Power frequency sine voltage 1500v lasted 1 min no breakdown or flashover phenomenon |
| temperature | -10ºC~45ºC |
| humidity | ≤95% |
| Altutide | <2000 |
| Why to work | continuous |
| Dimensen | 360x175x300 | 500x220x425 | 380x330x770 | 400x530x730 |
| Weight | 15.3 | 30.7 | 48 | 71 | 105 |
MZVC Series Product Characteristics And Application Fields
MZVC series high precision automatic ac regulated power supply using selected energy
saving ring transformer and first-class quality of integrated circuits and components for
production, with small volume, light weight, high efficiency and energy saving, no additional
output waveform distortion, stable and reliable performance, etc.
This series of products is mainly composed of contact type self coupling voltage regulator,
servo motor, automatic control circuit, etc.When grid voltage instability or load change,
automatic control circuit according to the change of output voltage to drive the servo motor,
adjust the contact from the carbon brush on the coupling voltage regulator, adjusted to make
the output voltage rating, reach steady state.
Areas of application: industrial and mining enterprises, hospitals, health, radio station,
hotel, scientific research institutes, computer network computer room and so on.
Load performance is good, suitable for impedance, capacitive and inductive load
Small volume, light weight, compact structure
Main characteristics:
Ring transformer structure, less leakage, low noise
USES the multi-layer structure of carbon brush, long service life, less maintenance workload
In phase with the input and output voltage, manual and automatic switching
Stepless voltage regulation, stable voltage output, does not produce waveform distortion
Can withstand the instantaneous overload shock, can work continuously for a long time
