Slider Linear Displacement Reliable Quality Sensor for Position Measurement

Name: Slider Linear Displacement Reliable Quality Sensor for Position Measurement
Brand: all-electronics-online.com
SKU: 825885535
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

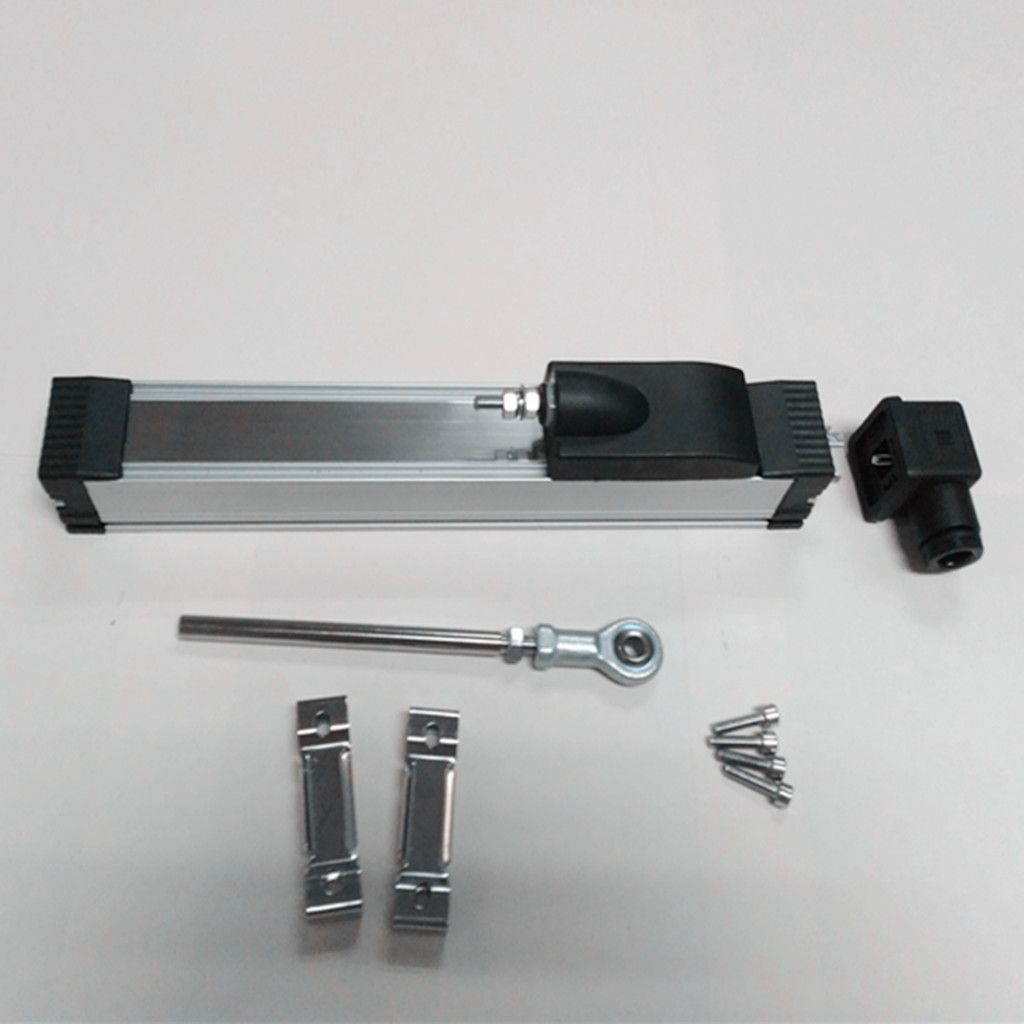

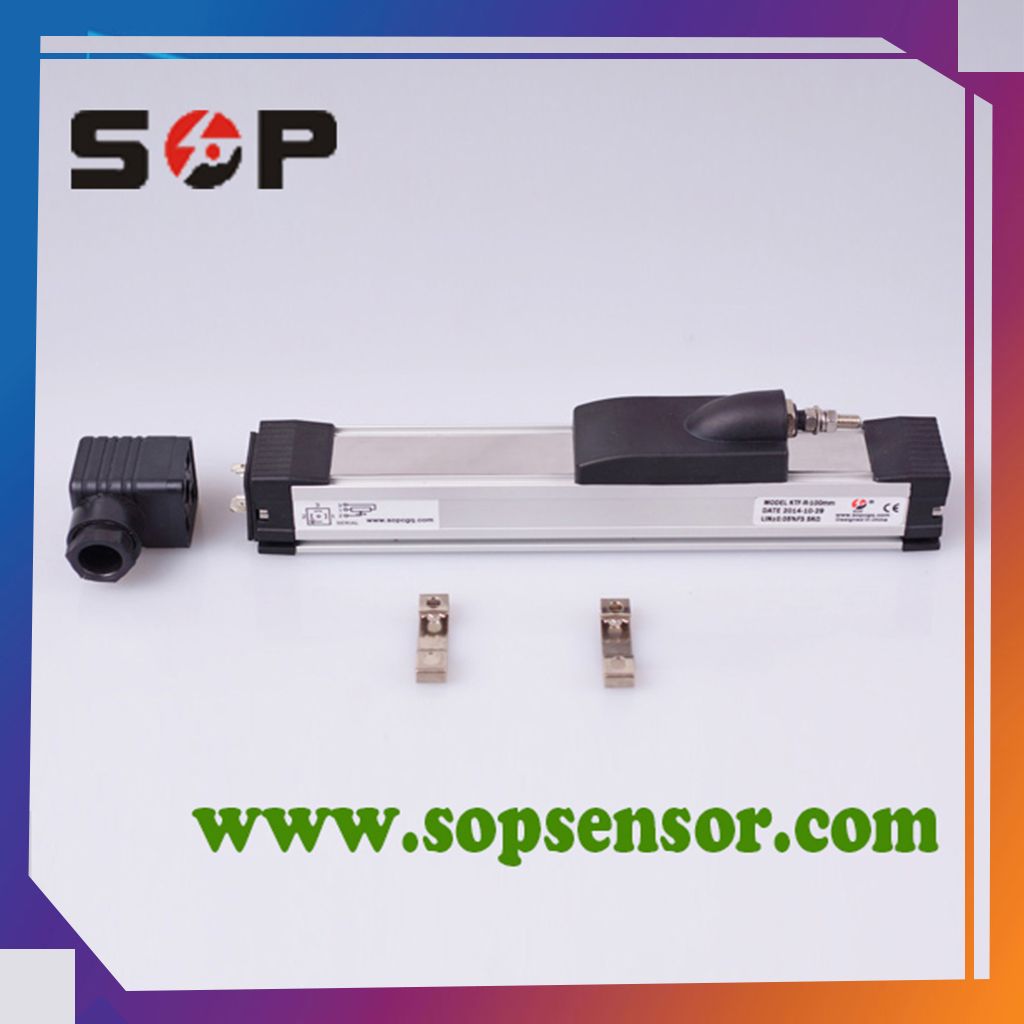

Slider Linear Displacement Reliable Quality Sensor for Position Measurement

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-2500	-40~120	≤0.4	≤1.1

KTF Sensor feature:

No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module

KTF is a versatile slider linear displacement-free design, particularly adapted to reduce mechanical installation dimensions of length, suitable for application of larger stroke.

Product feature:
No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	KTF-2250mm
Repeatability:	0.01mm
Work Stroke:	75-2500mm
Application:	Position Measurement Sensor
Feature:	High Speed
Material:	Aluminum Alloy
