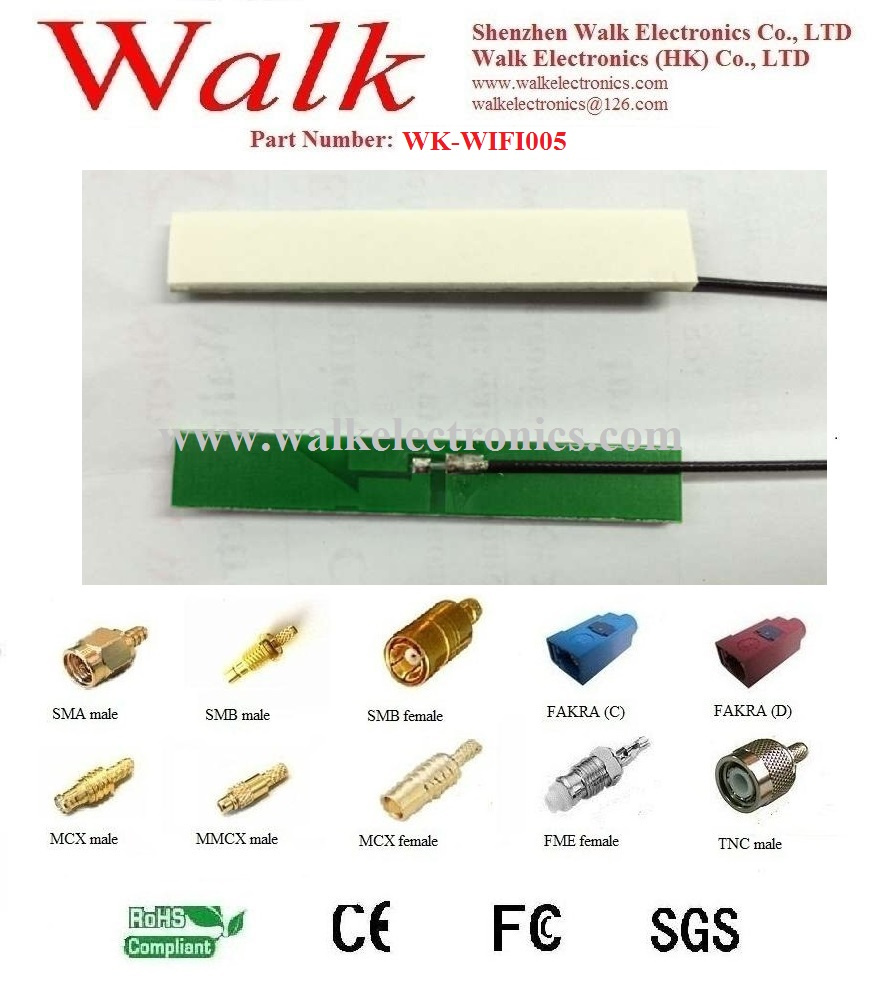

Small Size WiFi PCB Aerial, Internal 2.4GHz Aerial, Built in WiFi Aerial

Name: Small Size WiFi PCB Aerial, Internal 2.4GHz Aerial, Built in WiFi Aerial
Brand: all-electronics-online.com
SKU: 730841032
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 1.5-1.8/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-WIFI005
Connector:	U.FL Ipex Connetcor
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

WiFi Antenna/2.4GHz Antenna/Zigbee Antenna Specifications:

Part Number: WK-WIFI005-IPEX
WIFI antenna Specification
Frequency Range	2400-2500MHz
V.S.W.R	1.5:1
Band Width	±50 MHz
Gain	2.5dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h

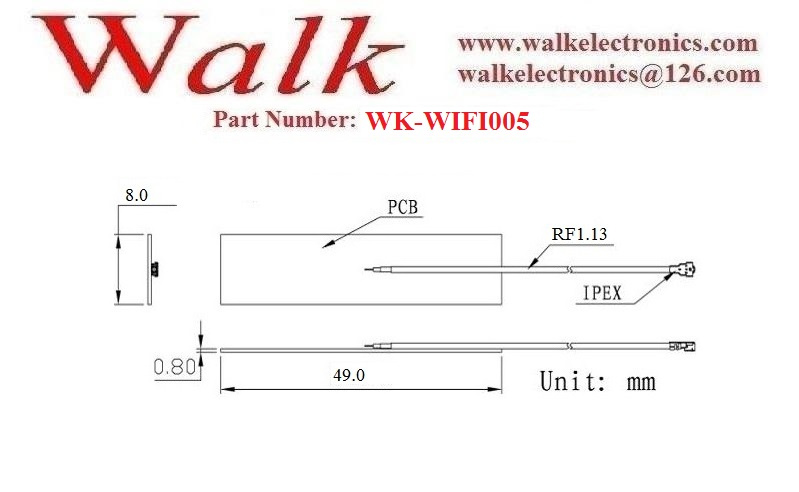

Mechanical Specifications
Size	49x8x1.0mm
Weight	<50g
Connector	U.FL/IPEX female right angle, MMCX, MCX, SMA or others
Cable	200mm 1.13mm(D), 1.32mm(D), RG178, RG174 or other
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h
